Availability:
Out of stock

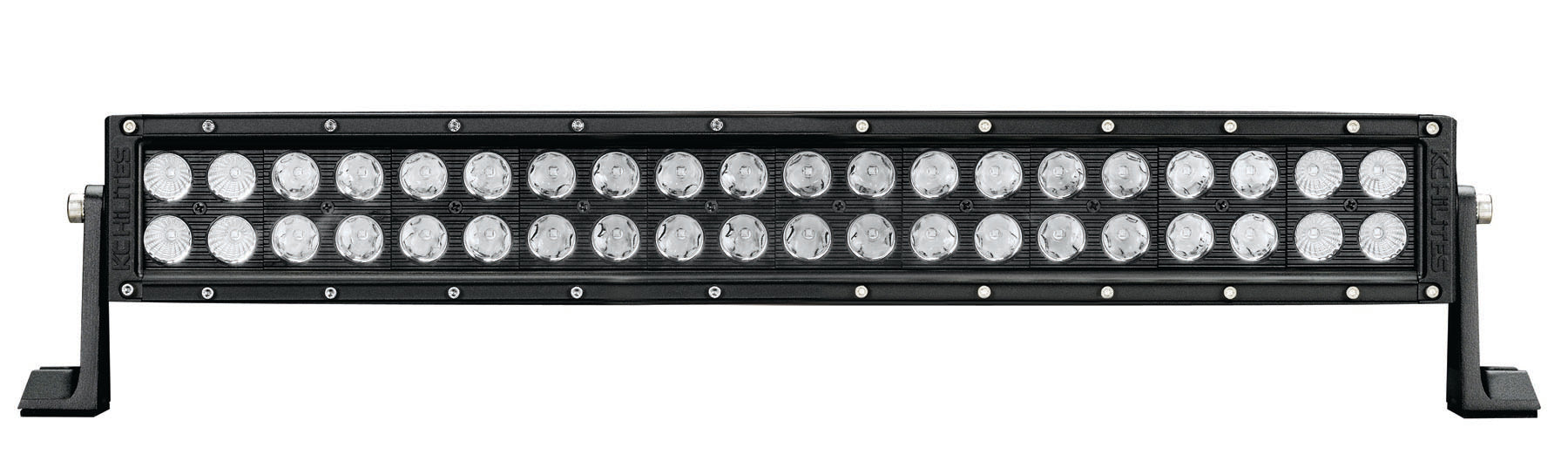

KC Hilites 335 C20 LED; 20in. Bar w/Harness Combo 120w (ea)
by KC Hilites
SKU ds_BFHB_335
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$487.66
-
Original price
$487.66
Original price
$487.66
$487.66
$487.66
-
$487.66
Current price
$487.66
Description
FEATURES-20" 120W C-SERIES LED Light Bar-Precision reflectors with forward facing LEDs-Combo Beam Pattern: 8 Spot & 90 Spread-Extruded Aluminum Housings-GORE Membrane BarrierLIGHT PERFORMANCE-Raw Lumens: 10,800 lm-Lux @ 10 Meters: 1,750 lx-Candela: 175,000 cd-Beam Distance (Meters): 837m SPECIFICATIONS-Wattage: 120W-LED Source: CREE LED-Color Temperature: 6000K-Amp Draw: 10.0A-Voltage: 9V-32V-IP Rating: IP67-Product Dimensions: L - 21.38" x H - 3.09" x D - 3.40" Parts Included with C-SERIES Light Bars-Wiring Harness w/ 2-Pin weather proof connectors-Die-Cast Mounting Brackets w/ hardwarePERFORMANCE OUTPUT AND CLARITYThe 20" C-Series uses an advanced dual row CREE LED design delivering 10,800 Lumens of output with maximum power efficiency. They are perfect for hood, front bumper, windshield and grille applications providing balanced and powerful light illumination. HIGH PERFORMANCE MEETS AFFORDABILITYC-Series light bar features an extruded aluminum housing, aluminum core PCBs with thermal management and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency. COMBO BEAM PATTERN AND ADVANTAGESWhen it comes to total road coverage the C-Series LED light bar features a combo beam with perfectly angled 8 Spot & 90 Spread reflectors, for maximum forward distance and increased peripheral illumination along road edges.DESIGNED FOR DURABILITYOff road race tested, the C-Series was designed to handle the harshest environments. Featuring a IP67 rated housing and GORE Membranes, the C-Series is resistant to moisture and dust.
Specifications
| Description_ASC |
FEATURES -20in. 120W C-SERIES LED Light Bar -Precision reflectors with forward facing LEDs -Combo Beam Pattern: 12 Spot/30 Spread -Extruded Aluminum Housings -GORE Membrane Barrier LIGHT PERFORMANCE -Raw Lumens: 10;800 lm -Lux @ 10 Meters: 1;750 lx -Candela: 175;000 cd -Beam Distance (Meters): 837m SPECIFICATIONS -Wattage: 120W -LED Source: CREE LED -Color Temperature: 6000K -Amp Draw: 10.0A -Voltage: 9V-32V -IP Rating: IP67 -Product Dimensions: L-21.38in. x H-3.09in. x D-3.40in. Parts Included with C-SERIES Light Bars -Wiring Harness w/2-Pin weather proof connectors -Die-Cast Mounting Brackets w/hardware PERFORMANCE OUTPUT AND CLARITY The 20in. C-Series uses an advanced dual row CREE LED design delivering 10;800 Lumens of output with maximum power efficiency. They are perfect for hood; front bumper; windshield and grille applications providing balanced and powerful light illumination. HIGH PERFORMANCE MEETS AFFORDABILITY C-Series light bar features an extruded aluminum housing; aluminum core PCBs with thermal management and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency. COMBO BEAM PATTERN AND ADVANTAGES When it comes to total road coverage the C-Series LED light bar features a combo beam with perfectly angled 12 Spot/30 Spread reflectors; for maximum forward distance and increased peripheral illumination along road edges. DESIGNED FOR DURABILITY Off road race tested; the C-Series was designed to handle the harshest environments. Featuring a IP67 rated housing and GORE Membranes; the C-Series is resistant to moisture and dust. |
| Description_DEF | Off-Road Light |
| Description_DES | C20 LED; 20in. Bar w/Harness Combo 120w (ea) |
| Description_DES | KC C-Series C20 20in LED Light Bar Combo System Universal |
| Description_EXT | C20- 20 in LED LIGHT BAR provides 120w of Performance, featuring a versatile combo beam pattern, both 8° Spot and 90° Spread reflectors. Great for hood, front bumper, and grille applications on Jeeps, Trucks, UTVs and more. |
| Description_EXT | C20-20in. LED LIGHT BAR provides 120w of Performance; featuring a versatile combo beam pattern; both 8/deg; Spot and 90/deg; Spread reflectors. Great for hood; front bumper; and grille applications on Jeeps; Trucks; UTVs and more. |
| Description_FAB | 12 Degree Spot/30 Degree Spread Beam Pattern |
| Description_FAB | 4200 Lumens |
| Description_FAB | 50 000 Hours LED Life |
| Description_FAB | Combo Beam Pattern: 8 degree Spot; 90 degree Spread |
| Description_FAB | Extruded Aluminum Housings |
| Description_FAB | GORE(R) Membrane Barrier |
| Description_FAB | IP 67 Rated |
| Description_FAB | On Board Thermal Management |
| Description_FAB | Precision reflectors with forward facing LEDs |
| Description_FAB | Protected Against RFI/EMC Interference |
| Description_FAB | Waterproof Connectors |
| Description_INV | KC C-Series LED |
| Description_INV | LED Light Bar |
| Description_MKT | C-Series light bar features an extruded aluminum housing, aluminum core PCBs with thermal management and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency. Off road race tested, the C-Series was designed to handle the harshest environments. Featuring a IP67 rated housing and GORE(R) Membranes, the C-Series is resistant to moisture and dust. The 20 in C-Series uses an advanced dual row CREE LED design delivering 10,800 Lumens of output with maximum power efficiency. They are perfect for hood, front bumper, windshield and grille applications providing balanced and powerful light illumination. When it comes to total road coverage the C-Series LED light bar features a combo beam with perfectly angled 8 degree Spot 90 degree Spread reflectors, for maximum forward distance and increased peripheral illumination along road edges. |
| Description_MKT | FEATURES-20" 120W C-SERIES LED Light Bar-Precision reflectors with forward facing LEDs-Combo Beam Pattern: 8 Spot & 90 Spread-Extruded Aluminum Housings-GORE Membrane BarrierLIGHT PERFORMANCE-Raw Lumens: 10,800 lm-Lux @ 10 Meters: 1,750 lx-Candela: 175,000 cd-Beam Distance (Meters): 837m SPECIFICATIONS-Wattage: 120W-LED Source: CREE LED-Color Temperature: 6000K-Amp Draw: 10.0A-Voltage: 9V-32V-IP Rating: IP67-Product Dimensions: L - 21.38" x H - 3.09" x D - 3.40" Parts Included with C-SERIES Light Bars-Wiring Harness w/ 2-Pin weather proof connectors-Die-Cast Mounting Brackets w/ hardwarePERFORMANCE OUTPUT AND CLARITYThe 20" C-Series uses an advanced dual row CREE LED design delivering 10,800 Lumens of output with maximum power efficiency. They are perfect for hood, front bumper, windshield and grille applications providing balanced and powerful light illumination. HIGH PERFORMANCE MEETS AFFORDABILITYC-Series light bar features an extruded aluminum housing, aluminum core PCBs with thermal management and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency. COMBO BEAM PATTERN AND ADVANTAGESWhen it comes to total road coverage the C-Series LED light bar features a combo beam with perfectly angled 8 Spot & 90 Spread reflectors, for maximum forward distance and increased peripheral illumination along road edges.DESIGNED FOR DURABILITYOff road race tested, the C-Series was designed to handle the harshest environments. Featuring a IP67 rated housing and GORE Membranes, the C-Series is resistant to moisture and dust. |
| Description_SHO | C-Series LEDs |
| Description_SHO | Off-Road Light |
| height | 6.5 |
| length | 23.0 |
| LTL | N |
| weight | 8.5 |
| width | 6.5 |
