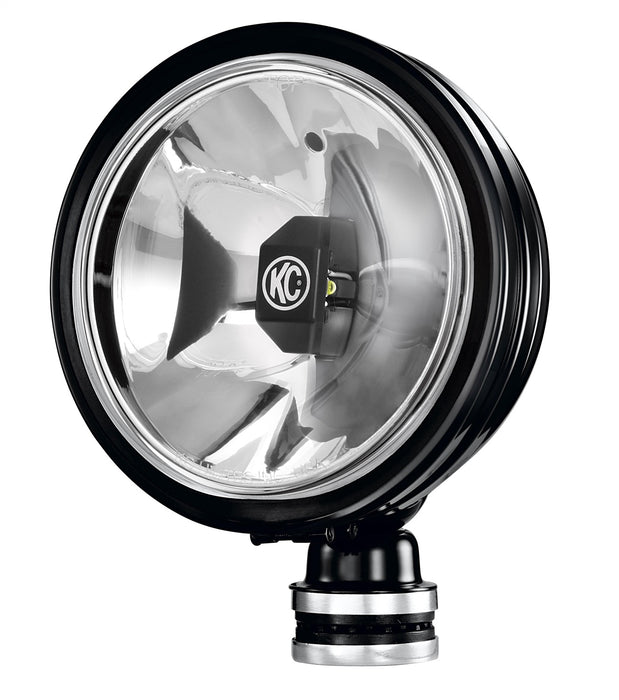

KC Hilites 1653 Daylighter; Gravity LED 20w G6 Drvg SAE/ECE Blk SS (ea)
by KC Hilites
SKU ds_BFHB_1653
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$409.24
-
Original price
$409.24
Original price
$409.24
$409.24
$409.24
-
$409.24
Current price
$409.24
Availability:
4+ in stock
Description
FEATURES-20W Gravity LED G6 optical insert -Black Powder Coated Steel housing -Hard Coated Polycarbonate Lens -Driving Beam Pattern LIGHT PERFORMANCE(PER LIGHT)-Raw Lumens: 2,300 lm -Lux @ 10 Meters: 1,310 lx -Candela: 131,000 cd -Beam Distance (Meters): 724m SPECIFICATIONS(PER LIGHT)-Wattage: 20W -LED Source: CREE XPL HD LED -Amp Draw: 1.63A -Voltage: 9V-32V -IP Rating: IP68 -Product Dimensions: W - 6.22" x H - 8.42" x D - 5.38" GRAVITY GRD EXTREME OUTPUT AND EFFICIENCY Gravity Daylighters are powered by our G6 LED optical inserts which deliver an incredible 1,310 lx @10m using only 1.63A per light. Our patented GRD (Gravity Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward. AVAILABLE BEAM PATTERN AND ADVANTAGES Different beam patterns offer advantages depending on your specific lighting needs. Driving Beam- SAE & ECE street legal beams provide added peripheral visibility and while reaching further than stock lights. ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION Our time-tested Daylighter shock mount system is resilient and allows users to accurately aim the lights ensuring beam stability and consistency. RACE PROVEN STRENGTH & DURABILITY The race-proven steel housing combined with our IP68 rated Gravity G6 LED optical insert creates an extremely strong and durable combination that will withstand the harshest of environments and terrains.
Specifications
| Add-On | N/A |
| Amp Draw | 1.63A |
| Beam Pattern | Driving |
| Description_ASC |
FEATURES -20W Gravity LED G6 optical insert -Black Powder Coated Steel housing -Hard Coated Polycarbonate Lens -Driving Beam Pattern LIGHT PERFORMANCE(PER LIGHT) -Raw Lumens: 2;300 lm -Lux @ 10 Meters: 1;310 lx -Candela: 131;000 cd -Beam Distance (Meters): 724m SPECIFICATIONS(PER LIGHT) -Wattage: 20W -LED Source: CREE XPL HD LED -Amp Draw: 1.63A -Voltage: 9V-32V -IP Rating: IP68 -Product Dimensions: W-6.22in. x H-8.42in. x D-5.38in. GRAVITY GRD EXTREME OUTPUT AND EFFICIENCY Gravity Daylighters are powered by our G6 LED optical inserts which deliver an incredible 1;310 lx @10m using only 1.63A per light. Our patented GRD (Gravity Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward. AVAILABLE BEAM PATTERN AND ADVANTAGES Different beam patterns offer advantages depending on your specific lighting needs. Driving Beam-SAE/ECE street legal beams provide added peripheral visibility and while reaching further than stock lights. ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION Our time-tested Daylighter shock mount system is resilient and allows users to accurately aim the lights ensuring beam stability and consistency. RACE PROVEN STRENGTH/DURABILITY The race-proven steel housing combined with our IP68 rated Gravity G6 LED optical insert creates an extremely strong and durable combination that will withstand the harshest of environments and terrains. |
| Description_DEF | Off-Road Light |
| Description_DES | Daylighter; Gravity LED 20w G6 Drvg SAE/ECE Blk SS (ea) |
| Description_DES | KC Daylighter Gravity LED 6in SAE ECE 1-Light Universal |
| Description_EXT | KC Hilites 6 in Gravity LED Daylighter feature bright CREE LEDs in a SAE legal driving beam pattern. Black steel housing and polycarbonate lens with FLEXible base for accurate aiming. |
| Description_EXT | KC Hilites 6in. Gravity LED Daylighter feature bright CREE LEDs in a SAE legal driving beam pattern. Black steel housing and polycarbonate lens with FLEXible base for accurate aiming. |
| Description_FAB | 12V H3 Halogen |
| Description_FAB | Black Powder Coated Steel housing |
| Description_FAB | Black Powdercoated Housing |
| Description_FAB | Driving Beam Pattern |
| Description_FAB | Driving Beam- SAE ECE street legal beams provide added peripheral visibility and while reaching further than stock lights. |
| Description_FAB | Hard Coated Polycarbonate Lens |
| Description_FAB | Single Driving Beam Light |
| Description_INV | KC Gravity LED |
| Description_INV | LED Driving Light |
| Description_MKT | FEATURES-20W Gravity LED G6 optical insert -Black Powder Coated Steel housing -Hard Coated Polycarbonate Lens -Driving Beam Pattern LIGHT PERFORMANCE(PER LIGHT)-Raw Lumens: 2,300 lm -Lux @ 10 Meters: 1,310 lx -Candela: 131,000 cd -Beam Distance (Meters): 724m SPECIFICATIONS(PER LIGHT)-Wattage: 20W -LED Source: CREE XPL HD LED -Amp Draw: 1.63A -Voltage: 9V-32V -IP Rating: IP68 -Product Dimensions: W - 6.22" x H - 8.42" x D - 5.38" GRAVITY GRD EXTREME OUTPUT AND EFFICIENCY Gravity Daylighters are powered by our G6 LED optical inserts which deliver an incredible 1,310 lx @10m using only 1.63A per light. Our patented GRD (Gravity Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward. AVAILABLE BEAM PATTERN AND ADVANTAGES Different beam patterns offer advantages depending on your specific lighting needs. Driving Beam- SAE & ECE street legal beams provide added peripheral visibility and while reaching further than stock lights. ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION Our time-tested Daylighter shock mount system is resilient and allows users to accurately aim the lights ensuring beam stability and consistency. RACE PROVEN STRENGTH & DURABILITY The race-proven steel housing combined with our IP68 rated Gravity G6 LED optical insert creates an extremely strong and durable combination that will withstand the harshest of environments and terrains. |
| Description_MKT | Gravity(R) Daylighters are powered by our G6 LED optical inserts which deliver an incredible 1,310 lx at 10m using only 1.63A per light. Our patented GRD (Gravity(R) Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward.Color Temperature: 5000KFog Beam Pattern (SAE ECE Street Legal)Housing: Black UV treated aluminum housingImpact resistant black polycarbonate lensIP Rating: IP65IP Rating: IP65Lux at 10 Meters: 150 lxIP Rating: IP67IP Rating: IP67IP Rating: IP67IP Rating: IP67 Our time-tested Daylighter shock mount system is resilient and allows users to accurately aim the lights ensuring beam stability and consistency.IP Rating: IP67IP Rating: IP67IP Rating: IP67 Different beam patterns offer advantages depending on your specific lighting needs. The race-proven steel housing combined with our IP67 rated Gravity(R) G6 LED optical insert creates an extremely strong and durable combination that will withstand the harshest of environments and terrains. |
| Description_SHO | Daylighter |
| Description_SHO | Off-Road Light |
| height | 9.37 |
| IP Rating | IP67 |
| length | 6.5 |
| LTL | N |
| lumens | 2300 |
| LUX | 1310 |
| Prop 65 Yes/No | No |
| Raw Lumens | 2,300 lm |
| Title | KC Hilites 6 in Daylighter Gravity LED - Single Light - SAE/ECE - 20W Driving Beam |
| Voltage | 9V-32V |
| Wattage | 20W |
| weight | 3.1 |
| width | 5.5 |
