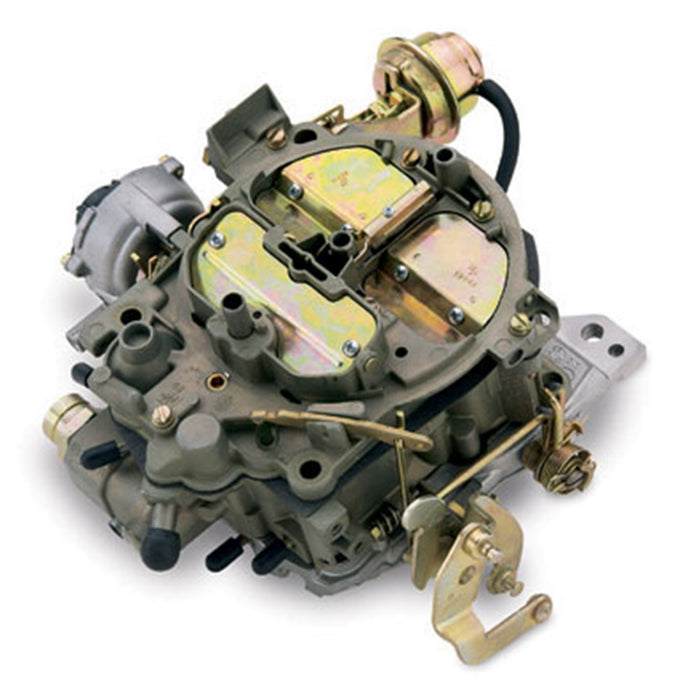

Jet Performance 36003 Rochester Quadrajet Carburetor
SKU ds_BHDL_36003
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$704.13
-
Original price
$704.13
Original price
$704.13
$704.13
$704.13
-
$704.13
Current price
$704.13
Description
JET Performance now offers a Quadrajet carburetor tuned for Chevy and GMC cars and trucks with 396 ci and larger modified big block engines. The carburetor is extensively reworked by increasing main well size and is balanced to assure top end high RPM fuel flow. Several circuit modifications are made to keep the fuel curve correct throughout the entire RPM range and to keep consistent idle quality. Includes a .149 needle and seat to ensure adequate fuel flow. The carburetor is designed for modified big block motors with a dual plane intake manifold, headers, 8.5-9.5:1 compression ratio and mild ported or aftermarket heads. Recommended cam specs: Duration at .050 min 210 degrees, max 240 degrees and a lobe separation angle of 110-114 degrees. Available as a complete unit or JET can rebuild your existing core.
Specifications
| Barrel | Four |
| CFM | 800 |
| Choke | Electric |
| Description_ASM | Universal |
| Description_DEF | Carburetor |
| Description_DES | Rochester Quadrajet Carburetor |
| Description_EXT | Rochester Quadrajet Carburetor; 4 bbl; 800 cfm; Dual Plane Intake Manifold; Incl. 0.179 Needle And Seat; Chevy/GMC 396 ci And Larger Modified Big Block Engines; |
| Description_FAB | Balanced To Assure Top End High RPM Fuel Flow |
| Description_FAB | Carburetor Is Extensively Reworked |
| Description_FAB | Increased Main Well Size |
| Description_FAB | Keep Consistent Idle Quality |
| Description_FAB | Several Circuit Modifications |
| Description_INV | Jet Performance Carburetor |
| Description_LAB | Proposition 65 |
| Description_MKT | JET Performance now offers a Quadrajet carburetor tuned for Chevy and GMC cars and trucks with 396 ci and larger modified big block engines. The carburetor is extensively reworked by increasing main well size and is balanced to assure top end high RPM fuel flow. Several circuit modifications are made to keep the fuel curve correct throughout the entire RPM range and to keep consistent idle quality. Includes a .149 needle and seat to ensure adequate fuel flow. The carburetor is designed for modified big block motors with a dual plane intake manifold, headers, 8.5-9.5:1 compression ratio and mild ported or aftermarket heads. Recommended cam specs: Duration at .050 min 210 degrees, max 240 degrees and a lobe separation angle of 110-114 degrees. Available as a complete unit or JET can rebuild your existing core. |
| Description_SHO | Carburetor |
| Emission | N/A |
| finish | Anodized |
| Flange | Spread Bore |
| height | 10.0 |
| length | 14.0 |
| LTL | N |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Short Label | JET Performance Prop 65 Label.pdf |
| Prop 65 Yes/No | Yes |
| Title | Rochester Quadrajet Carburetor |
| Type | Automotive |
| Usage | Street/Strip |
| weight | 14.0 |
| width | 14.0 |
