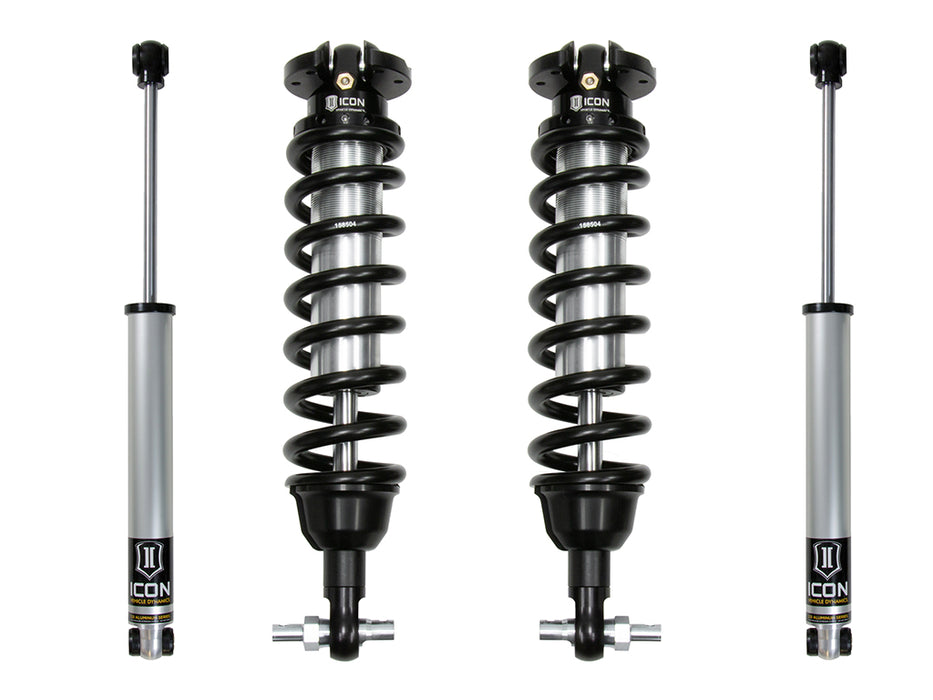

ICON Vehicle Dynamics K93201 2019-2021 FORD RANGER 0-3.5" LIFT STAGE 1 SUSPENSION SYSTEM
SKU ds_FRDK_K93201
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$2,795.14
-
Original price
$2,795.14
Original price
$2,795.14
$2,795.14
$2,795.14
-
$2,795.14
Current price
$2,795.14
Availability:
Out of stock
Description
ICON Vehicle Dynamics 2019-2021 Ford Ranger suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the new Ranger platform’s suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2021 Ford Ranger Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Specifications
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 614700 - 2.0 SHOCK BOOT KIT (EACH) |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Description_ASC | APPLICATION NOTE #110: MINOR TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC | Factory Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 285/70/R17 (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.75” Backspace / 25mm Offset |
| Description_ASC | TECH NOTE: Ranger XLT or Lariat models equipped with Tremor package have front lift height range of 0-2.5" over stock. |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 19-21 FORD RANGER 0-3.5" STAGE 1 SUSPENSION SYSTEM |
| Description_DES | 19-21 RANGER 4WD (0-1.5") REAR 2.0 VS NR |
| Description_DES | 19-21 RANGER 4WD 2.5 VS IR COILOVER KIT |
| Description_EXT | 2019-2021 FORD RANGER 0-3.5" LIFT STAGE 1 SUSPENSION SYSTEM |
| Description_FAB | Corrosion resistant anodized shock body with 5/8? shaft (2.0 Aluminum Series shocks) |
| Description_FAB | Corrosion resistant CAD plated shock body with 7/8? shaft (2.5 Series shocks) |
| Description_FAB | Direct bolt-in design makes for a simple and straightforward installation |
| Description_FAB | Fits 2WD & 4WD applications |
| Description_FAB | FK Rod End bearings provide extended longevity and minimal deflection |
| Description_FAB | Height-adjustable coilovers provide a range of 0-3.5” of front lift height |
| Description_FAB | ICON shocks feature vehicle specific tune for superior performance and ride quality |
| Description_FAB | Increased lift height allows for fitment of larger and more aggressive tires |
| Description_FAB | Lifetime guarantee against ICON fabricated component breakage or manufacturer defect |
| Description_FAB | Shocks are fully rebuildable and revalvable |
| Description_FAB | Up to 25% increase in front wheel travel over stock |
| Description_INV | 19-21 RANGER STAGE 1 SUSP SYSTEM |
| Description_MKT | ICON Vehicle Dynamics 2019-2021 Ford Ranger suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the new Ranger platform’s suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2021 Ford Ranger Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. |
| Description_SHO | STG 1 SUSP SYS |
| Description_TRA | ICON 2019-2021 Ford Ranger, 0-3.5" Lift, Stage 1 Suspension System, K93201 |
| height | 6.0 |
| length | 27.0 |
| LTL | N |
| Title | ICON 2019-2021 Ford Ranger, 0-3.5" Lift, Stage 1 Suspension System |
| weight | 53.0 |
| width | 12.0 |
