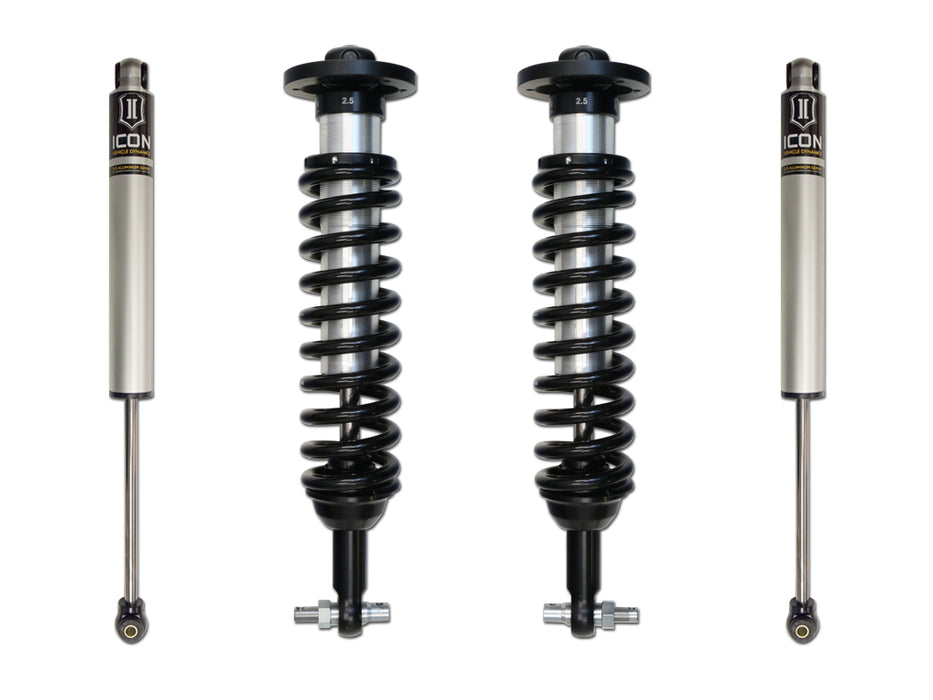

ICON Vehicle Dynamics K93071 2014 FORD F150 2WD 0-2.63" LIFT STAGE 1 SUSPENSION SYSTEM
SKU ds_FRDK_K93071
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,980.15
-
Original price
$2,980.15
Original price
$2,980.15
$2,980.15
$2,980.15
-
$2,980.15
Current price
$2,980.15
Availability:
Out of stock
Description
ICON Vehicle Dynamics 2014 Ford F150 2WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-2.63” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2014 F150 2WD Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Specifications
| Add-On Part | 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.00” Backspace / 6mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset |
| Description_ASC | Ships in multiple boxes |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 09-UP F150 2/4WD 04-08 F150 4WD REAR VS 2.0 IR |
| Description_DES | 2014 F150 2WD 0-2.63" 2.5 VS IR COILOVER KIT |
| Description_DES | 2014 FORD F150 2WD 0-2.63" STAGE 1 SUSPENSION SYSTEM |
| Description_EXT | 2014 FORD F150 2WD 0-2.63" LIFT STAGE 1 SUSPENSION SYSTEM |
| Description_FAB | 100% bolt-on system - no drilling, cutting, or welding necessary for install |
| Description_FAB | 2.0 aluminum body IFP rear shock with 5/8" polished shaft |
| Description_FAB | 6061 aircraft grade aluminum CNC machined components |
| Description_FAB | Adjustable coilovers provide 0-2.63" of lift height |
| Description_FAB | Corrosion resistant CAD plated coilover shock body with 7/8" shaft |
| Description_FAB | FK Rod End bearings for extended longevity and minimal deflection |
| Description_FAB | High strength alloy CNC machined lower bar pin |
| Description_FAB | Increased wheel travel and ride quality over stock with no change in towing capacity |
| Description_FAB | Unique valving developed for the 2014 F150 |
| Description_FAB | Vehicle specific tuned front and rear shocks for superior damping and vehicle control |
| Description_INV | 2014 F150 2WD 0-2.63" STG 1 SUSP SYS |
| Description_MKT | ICON Vehicle Dynamics 2014 Ford F150 2WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-2.63” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2014 F150 2WD Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. |
| Description_SHO | SUSPENSION SYSTEM |
| Description_TRA | ICON 2014 Ford F150 2WD, 0-2.63" Lift, Stage 1 Suspension System, K93071 |
| height | 7.0 |
| length | 26.0 |
| LTL | N |
| Title | 2014 FORD F150 2WD 0-2.63" STAGE 1 SUSPENSION SYSTEM |
| weight | 64.0 |
| width | 13.0 |
