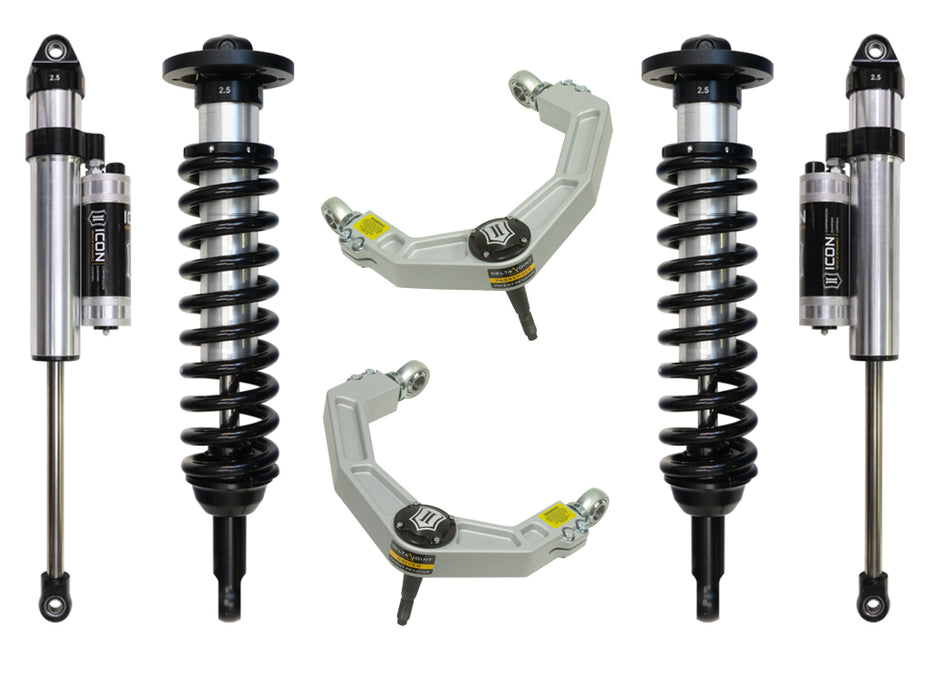

ICON Vehicle Dynamics K93033 2004-2008 FORD F150 2WD 0-2.63" LIFT STAGE 4 SUSPENSION SYSTEM WITH BILLET UCA
SKU ds_FRDK_K93033
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$5,959.62
-
Original price
$5,959.62
Original price
$5,959.62
$5,959.62
$5,959.62
-
$5,959.62
Current price
$5,959.62
Availability:
Out of stock
Description
This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Specifications
| Add-On Part | 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.00” Backspace / 6mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset |
| Description_ASC | Ships in multiple boxes |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 04-08 F150 2WD 0-3" REAR 2.5 VS PB CDCV PAIR |
| Description_DES | 04-08 F150 2WD 2.5 VS IR COILOVER KIT |
| Description_DES | 04-08 FORD F150 2WD 0-2.63" STAGE 4 SUSPENSION SYSTEM W BILLET UCA |
| Description_DES | 04-20 F150 BILLET UCA DJ KIT |
| Description_EXT | 2004-2008 FORD F150 2WD 0-2.63" LIFT STAGE 4 SUSPENSION SYSTEM WITH BILLET UCA |
| Description_FAB | 100% bolt-on system - no drilling, cutting, or welding necessary for install |
| Description_FAB | 6061 aircraft grade aluminum CNC machined components |
| Description_FAB | Adjustable coilovers from 0-2.63" of lift height |
| Description_FAB | Billet upper control arms for added strength, durability, adjustability, and improved alignment geometry |
| Description_FAB | Corrosion resistant CAD plated shock bodies with 7/8" polished shafts |
| Description_FAB | FK Rod End bearings for extended longevity and minimal deflection |
| Description_FAB | ICON CDCV equipped rear shocks for full compression tuneability of your shocks |
| Description_FAB | Increased wheel travel and ride quality over stock with no change in towing capacity |
| Description_FAB | Vehicle specific tuned front and rear shocks for superior damping and vehicle control |
| Description_INV | 04-08 FORD F150 2WD STG 4 SUSP ALUM |
| Description_MKT | The ICON Vehicle Dynamics 2004-2008 Ford F150 2WD Stage 4 suspension system is the best choice for drivers looking to maximize the on and offroad potential of their trucks and will inspire confidence behind the wheel in nearly any situation. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-2.63” allowing the use of larger, more aggressive wheel and tire combinations. Billet upper control arms on the F150 not only add strength and durability, but help retain factory alignment spec range increasing caster over stock. ICON 2.5 Series Piggyback rear shocks w/ CDCV utilize a vehicle-specific valving that balances the performance of the truck from front to rear. 2.5" CDC reservoir rear shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's CDC Valve upgrade is included in this stage for those desiring an easy way to tune the ride externally with 10 settings from soft to hard. |
| Description_MKT | This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint. |
| Description_SHO | SUSPENSION SYSTEM |
| Description_TRA | ICON 2004-08 Ford F150 2WD, 0-2.63" Lift, Stage 4 Suspension System, Billet UCA, 93033 |
| height | 6.0 |
| length | 27.0 |
| Title | 04-08 FORD F150 2WD 0-2.63" STAGE 4 SUSPENSION SYSTEM W BILLET UCA |
| weight | 104.0 |
| width | 12.0 |
