Description

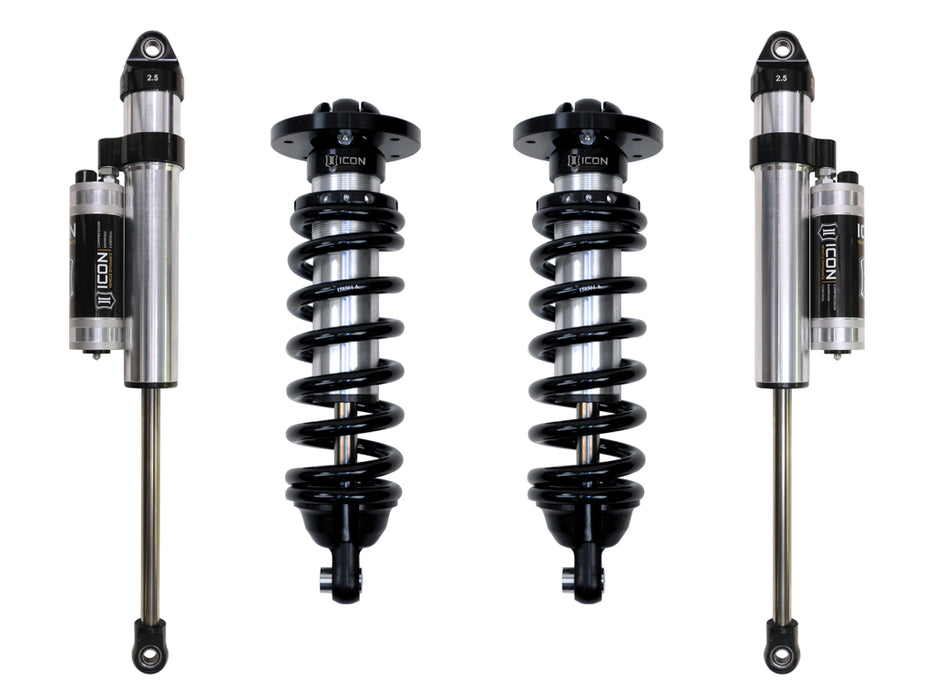

ICON Vehicle Dynamics 2004-2015 Nissan Titan suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3” of lift over stock allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear and ICON's CDC (Compression Damping Control) Valve allows for end user adjustable compression adjustment. The ICON Vehicle Dynamics 2004-2015 Nissan Titan Stage 3 suspension system is an excellent choice for those drivers looking to drastically improve the capabilities of their pickup on the road as well as in the dirt.
Specifications
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR) |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.00" Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.00" Backspace / 0mm Offset |
| Description_ASC | Ships in multiple boxes |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 04-15 NISSAN TITAN 2/4WD 0-3" STAGE 3 SUSPENSION SYSTEM |
| Description_DES | 04-15 TITAN 0-1.5" REAR 2.5 VS PB CDCV PAIR |
| Description_DES | 04-15 TITAN 2.5 VS IR COILOVER KIT |
| Description_EXT | 2004-2015 NISSAN TITAN 2/4WD 0-3" LIFT STAGE 3 SUSPENSION SYSTEM |
| Description_FAB | 100% bolt-on system means no drilling, cutting, or welding necessary for install |
| Description_FAB | 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish |
| Description_FAB | 6061 Aircraft grade aluminum CNC machined components |
| Description_FAB | Adjustable coilovers from 0-3" of lift height |
| Description_FAB | Corrosion resistant CAD plated coilover shock body with 7/8" shaft |
| Description_FAB | Fits 2WD and 4WD applications |
| Description_FAB | FK Rod End bearings for extended longevity and minimal deflection |
| Description_FAB | ICON CDC Valve allows quick and easy end user compression adjustability |
| Description_FAB | Increased wheel travel and ride quality over stock with no change in towing capacity |
| Description_FAB | Vehicle specific tuned front and rear shocks for superior shock damping and control |
| Description_INV | 04-15 NISSAN TITAN 0-3" STAGE 3 SUSP SYS |
| Description_MKT | ICON Vehicle Dynamics 2004-2015 Nissan Titan suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3” of lift over stock allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear and ICON's CDC (Compression Damping Control) Valve allows for end user adjustable compression adjustment. The ICON Vehicle Dynamics 2004-2015 Nissan Titan Stage 3 suspension system is an excellent choice for those drivers looking to drastically improve the capabilities of their pickup on the road as well as in the dirt. |
| Description_SHO | TITAN STAGE 3 SYS |
| Description_TRA | ICON 2004-15 Nissan Titan 2/4WD, 0-3" Lift, Stage 3 Suspension System, K83003 |
| height | 7.0 |
| length | 26.0 |
| LTL | N |
| Title | 04-15 NISSAN TITAN 2/4WD 0-3" STAGE 3 SUSPENSION SYSTEM |
| weight | 54.0 |
| width | 13.0 |
