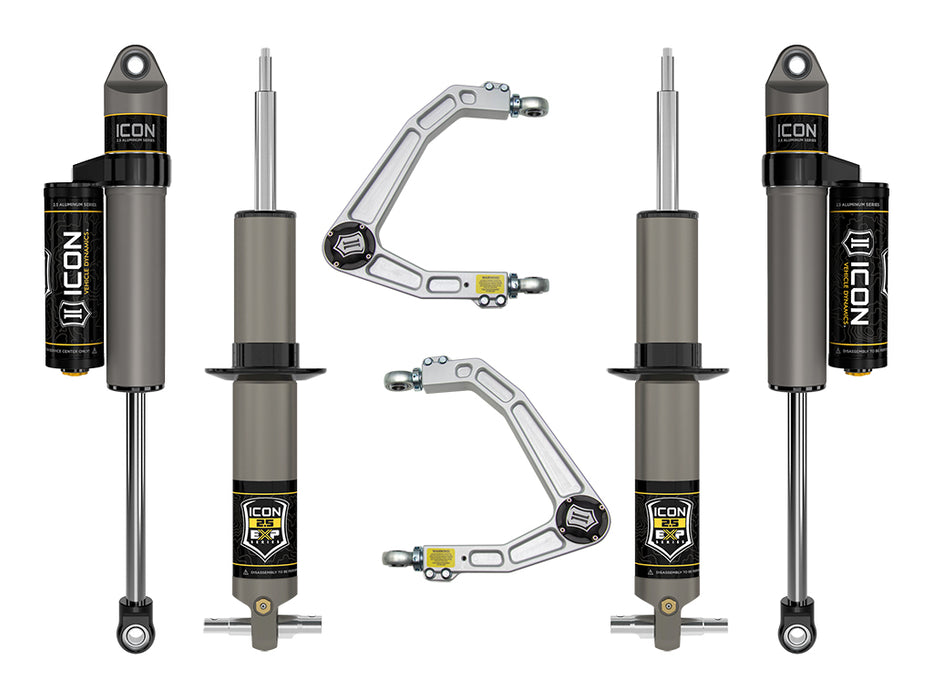

ICON Vehicle Dynamics K73073 19-23 GM 1500 2.38-3.75" STAGE 3 EXP SUSPENSION SYSTEM W BILLET UCA
SKU ds_FRDK_K73073
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$5,102.50
-
Original price
$5,102.50
Original price
$5,102.50
$5,102.50
$5,102.50
-
$5,102.50
Current price
$5,102.50
Availability:
Out of stock
Description
Rounding out the Stage 3 EXP suspension system are 2.5 Aluminum Series rear shocks specially tailored for the 2019-2023 GM 1500. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Piggyback reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Silverado 1500 or Sierra 1500.
Specifications
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Description_ASC | APPLICATION NOTE #110: TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE. |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC | APPLICATION NOTE #83: TRIMMING OF THE UPPER CONTROL ARM STOP REQUIRED OR DOWN TRAVEL WILL BE LIMITED BY UPPER ARM STOP |
| Description_ASC | Recommended Aftermarket Tires (Sierra 1500): 34"x12.00" (Minor fender trimming and modifications may be required) |
| Description_ASC | Recommended Aftermarket Tires (Silverado 1500): 35"x12.50" (Minor fender trimming and modifications may be required) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 4.75” Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9 with 5” Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 20x9 with 5” Backspace / 0mm Offset |
| Description_ASC | TECH NOTE: Models equipped with Duramax diesel engines will have front lift height range of 1.75-3” over stock |
| Description_ASC | TECH NOTE: Models equipped with gasoline engines will have front lift height range of 2.375-3.75” over stock (lift heights vary slightly depending on trim/engine) |
| Description_ASC | TECH NOTE: Not compatible with models equipped with Adaptive Ride Control (ARC) |
| Description_ASC | TECH NOTE: Not compatible with Silverado 1500 TRAIL BOSS or Sierra 1500 AT4 |
| Description_ASC | TECH NOTE: Not compatible with Silverado 1500 ZR2 or Sierra 1500 AT4X sub-models |
| Description_ASM | ICON 19-23 GM 1500 2.38-3.75" STAGE 3 EXP SUSPENSION SYSTEM W BILLET UCA |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 19-23 GM 1500 0-2" REAR 2.5 VS PB PAIR |
| Description_DES | 19-23 GM 1500 2.38-3.75" STAGE 3 EXP SUSPENSION SYSTEM W BILLET UCA |
| Description_DES | 19-23 GM 1500 BILLET UCA DJ KIT |
| Description_DES | 19-23 GM 1500 FRONT 2.5 EXP COILOVER |
| Description_EXT | Stage 2 includes a pair of 2.5 EXP Series coilovers for 2.375-3.75” of front lift, improved performance, and 35” tire fitment. Billet UCAs improve alignment and 2.5 Series rear shocks to balance the tuning from front to rear. |
| Description_FAB | 2.5 Aluminum Series rear piggyback reservoir shocks provide increased performance and balanced tune with coilovers |
| Description_FAB | 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware |
| Description_FAB | 7/8” diameter induction hardened, chrome plated shock shaft with inverted shaft-up design |
| Description_FAB | Adjustable front ride heights from 2.375-3.75” of front lift over stock with the use of snap ring (lift heights vary slightly depending on trim/engine) |
| Description_FAB | All ICON shock absorbers are fully rebuildable and re-tunable |
| Description_FAB | Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability |
| Description_FAB | CNC machined 6061 aluminum components with a black anodized finish |
| Description_FAB | One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish |
| Description_FAB | UCAs feature ICON's Patented Delta Joint (U.S. Patent No. 10,731,700) |
| Description_FAB | Vehicle specific design for 2019-2023 GM 1500 pickups |
| Description_INV | K73073 |
| Description_MKT | Rounding out the Stage 3 EXP suspension system are 2.5 Aluminum Series rear shocks specially tailored for the 2019-2023 GM 1500. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Piggyback reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Silverado 1500 or Sierra 1500. |
| Description_MKT | The ICON Vehicle Dynamics Stage 3 EXP complete suspension system for the 2019-2023 GM 1500 pickup builds on ICON's 2.5 EXP Shock Kit with the addition of billet front upper control arms, providing proper alignment at any ride height, improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features the innovative new 2.5 EXP series coilover shocks along with our proven 2.5 Aluminum Series shocks with piggyback reservoirs for the rear. |
| Description_MKT | The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2019-2023 GM 1500 pickup with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. |
| Description_MKT | This Stage 3 system features the 2019-2023 GM 1500 EXP Series front shock absorbers that combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the truck’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package. |
| Description_SHO | SUSPENSION SYSTEM |
| Description_TRA | ICON 19-23 GM 1500, 2.375-3.75" Lift, Stage 3 EXP Suspension System, Billet, K73073 |
| height | 5.0 |
| length | 32.0 |
| weight | 71.0 |
| width | 6.0 |
