ICON Vehicle Dynamics K73001 2007-2018 GM 1500 1-3" LIFT STAGE 1 SUSPENSION SYSTEM
SKU ds_FRDK_K73001
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,997.28
-
Original price
$2,997.28
Original price
$2,997.28
$2,997.28
$2,997.28
-
$2,997.28
Current price
$2,997.28
Availability:
Out of stock
Description

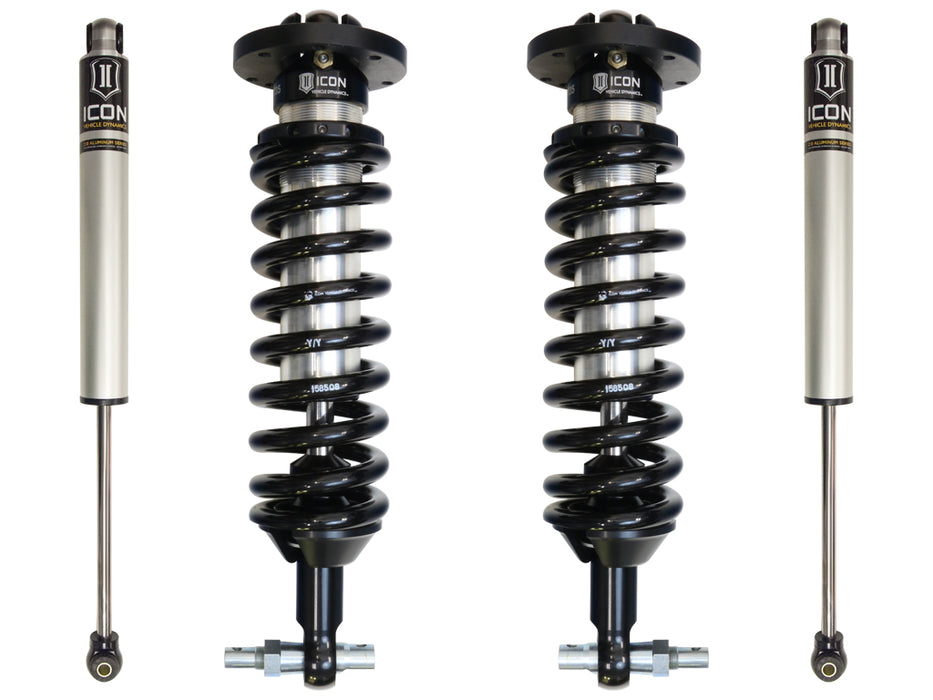

ICON Vehicle Dynamics 2007-2018 GM Silverado/Sierra 1500 suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the GM platform’s suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics GM Silverado/Sierra 1500 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Specifications
| Description_ASC | APPLICATION NOTE #48: SLIGHT MODIFICATIONS TO FACTORY SHOCK MOUNTS MAY BE REQUIRED |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC | APPLICATION NOTE #83: TRIMMING OF THE UPPER CONTROL ARM STOP REQUIRED OR DOWN TRAVEL WILL BE LIMITED BY UPPER ARM STOP |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.00” Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.00” Backspace / 0mm Offset |
| Description_ASC | Ships in multiple boxes |
| Description_ASC | TECH NOTE: Included rear shocks are compatible with 0-2" of rear lift on most models |
| Description_ASC | TECH NOTE: Not compatible with models equipped Magnetic Ride Control |
| Description_ASC | TECH NOTE: Not recommended for Hybrid models |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 07-18 GM 1500 1-3" 2.5 VS IR COILOVER KIT |
| Description_DES | 07-18 GM 1500 1-3" STAGE 1 SUSPENSION SYSTEM |
| Description_DES | 07-UP GM 1500 0-2" REAR 2.0 VS IR |
| Description_EXT | 2007-2018 GM 1500 1-3" LIFT STAGE 1 SUSPENSION SYSTEM |
| Description_FAB | 2.0 Aluminum Series rear IFP shocks with 5/8" shock shafts |
| Description_FAB | 6061 Aircraft grade aluminum CNC machined components |
| Description_FAB | Adjustable coilovers allow for f 1-3" of front lift height over stock |
| Description_FAB | Corrosion resistant CAD plated coilover shock body with 7/8" shaft |
| Description_FAB | Fits 2WD and 4WD models |
| Description_FAB | FK rod end bearings for extended longevity and minimal deflection |
| Description_FAB | High strength alloy CNC machined lower bar pin |
| Description_FAB | Increased wheel travel and ride quality over stock with no change in towing capacity |
| Description_FAB | Vehicle specific tuned front and rear shocks for superior shock damping and control |
| Description_INV | 07-18 GM 1500 1-3" STAGE 1 SUSP SYSTEM |
| Description_MKT | ICON Vehicle Dynamics 2007-2018 GM Silverado/Sierra 1500 suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the GM platform’s suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics GM Silverado/Sierra 1500 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. |
| Description_SHO | SUSPENSION SYSTEM |
| Description_TRA | ICON 2007-2016 GM 1500, 1-3" Lift, Stage 1 Suspension System, K73001 |
| height | 7.0 |
| length | 26.0 |
| LTL | N |
| weight | 55.0 |
| width | 13.0 |
