ICON Vehicle Dynamics K67303 2011-2016 FORD F250/F350 7" LIFT STAGE 4 SUSPENSION SYSTEM
SKU ds_FRDK_K67303
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$9,408.06
-
Original price
$9,408.06
Original price
$9,408.06
$9,408.06
$9,408.06
-
$9,408.06
Current price
$9,408.06
Availability:
Out of stock
Description

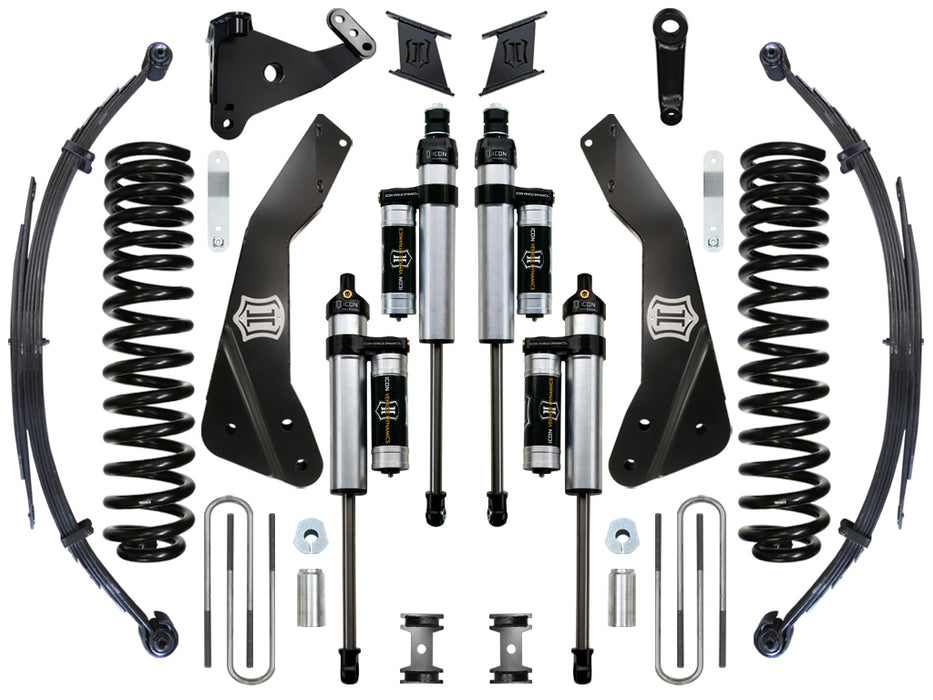

ICON Vehicle Dynamics is an industry leader when it comes to Ford Super Duty performance. Our engineers have spent countless hours under these trucks and behind the wheel developing some of the most refined suspension systems available. Increasing wheel travel and ride comfort is standard operating procedure at ICON, but our engineers aimed high to produce a suspension solution that also maintained the Super Duty’s towing capacity. ICON’s 7” Suspension System for the 2011-2016 Super Duty yields enough lift to clear 37” tires while providing excellent ride characteristics across a wide variety of terrain on and off-road. Each component of this suspension system has been specifically engineered to work in union with other ICON parts to extract maximum performance out of the vehicle. Our Stage 4 System is comprised of 7” lift dual rate coil springs, fabricated radius arm drop brackets with brushed stainless badges, track bar drop bracket, bump stop extensions, sway bar links, a forged pitman arm, brake line brackets, rear 5" lift progressive rate leaf springs w/ U-bolts, and 2.5 Aluminum Series piggyback reservoir front & rear shocks. ICON 2.5" reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
Specifications
| Add-On Part | 36511 - 99-UP FSD 4WD STABILIZER (DUAL OPPOSING) 2.0 VS IR |
| Add-On Part | 65000 - 05-UP FSD DUAL STABILIZER KIT |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Description_ASC | APPLICATION NOTE #21: NOT APPLICABLE ON VEHICLES EQUIPPED WITH A MANUAL TRANSMISSION |
| Description_ASC | APPLICATION NOTE #31: ‘08 - CURRENT SUPERDUTY MODELS WITH GAS ENGINES MAY NEED EXHAUST MODIFIED TO CLEAR FRONT DRIVESHAFT |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC | APPLICATION NOTE #57: RETAINS FACTORY BLOCK FOR TRUCK TO SIT LEVEL WITH FRONT OF TRUCK |
| Description_ASC | APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.00” Backspace / 6mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25” Backspace / 6mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25” Backspace / 6mm Offset |
| Description_ASC | Ships in multiple boxes |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 05-UP FSD 2.5" ALIGNMENT CAM KIT |
| Description_DES | 05-UP FSD 4WD 7" FRONT 2.5 VS PB PAIR |
| Description_DES | 05-UP FSD FRONT 7" DUAL RATE SPRING KIT |
| Description_DES | 08-16 FSD REAR 5" LEAF SPRING PACK |
| Description_DES | 11-16 FORD F250/F350 7" STAGE 4 SUSPENSION SYSTEM |
| Description_DES | 11-16 FSD FRONT 7" BOX KIT |
| Description_DES | 11-16 FSD RADIUS ARM DROP KIT |
| Description_DES | 11-UP FSD REAR 15" U-BOLT KIT |
| Description_DES | 11-UP FSD REAR 7" BRAKE BRACKET KIT |
| Description_DES | 11-UP FSD U-BOLT PLATE KIT |
| Description_DES | 99-UP FSD 3-6" REAR 2.5 VS PB PAIR |
| Description_EXT | 2011-2016 FORD F250/F350 7" LIFT STAGE 4 SUSPENSION SYSTEM |
| Description_FAB | 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish |
| Description_FAB | Correctly positioned steering and track bar components |
| Description_FAB | Decreased body roll |
| Description_FAB | Heavy duty radius arm drop brackets |
| Description_FAB | ICON engineered dual rate coil springs with match tuned 2.5 Aluminum Series piggyback reservoir shocks |
| Description_FAB | Increased wheel travel and ride quality over stock with no change in towing capacity |
| Description_FAB | No drive shaft modifications needed |
| Description_FAB | Rear progressive design leaf pack for smooth compliant ride |
| Description_INV | 11-16 F250/F350 7" STAGE 4 SUSP SYSTEM |
| Description_MKT | ICON Vehicle Dynamics is an industry leader when it comes to Ford Super Duty performance. Our engineers have spent countless hours under these trucks and behind the wheel developing some of the most refined suspension systems available. Increasing wheel travel and ride comfort is standard operating procedure at ICON, but our engineers aimed high to produce a suspension solution that also maintained the Super Duty’s towing capacity. ICON’s 7” Suspension System for the 2011-2016 Super Duty yields enough lift to clear 37” tires while providing excellent ride characteristics across a wide variety of terrain on and off-road. Each component of this suspension system has been specifically engineered to work in union with other ICON parts to extract maximum performance out of the vehicle. Our Stage 4 System is comprised of 7” lift dual rate coil springs, fabricated radius arm drop brackets with brushed stainless badges, track bar drop bracket, bump stop extensions, sway bar links, a forged pitman arm, brake line brackets, rear 5" lift progressive rate leaf springs w/ U-bolts, and 2.5 Aluminum Series piggyback reservoir front & rear shocks. ICON 2.5" reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. |
| Description_SHO | SUSPENSION SYSTEM |
| Description_TRA | ICON 2011-2016 Ford F250/F350, 7" Lift, Stage 4 Suspension System, K67303 |
| height | 10.0 |
| length | 48.0 |
| LTL | N |
| Title | 11-16 FORD F250/F350 7" STAGE 4 SUSPENSION SYSTEM |
| weight | 489.0 |
| width | 48.0 |
