ICON Vehicle Dynamics K64560 2011-2016 FORD F250/F350 4.5" LIFT STAGE 1 SUSPENSION SYSTEM
SKU ds_FRDK_K64560
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$4,058.81
-
Original price
$4,058.81
Original price
$4,058.81
$4,058.81
$4,058.81
-
$4,058.81
Current price
$4,058.81
Availability:
Out of stock
Description

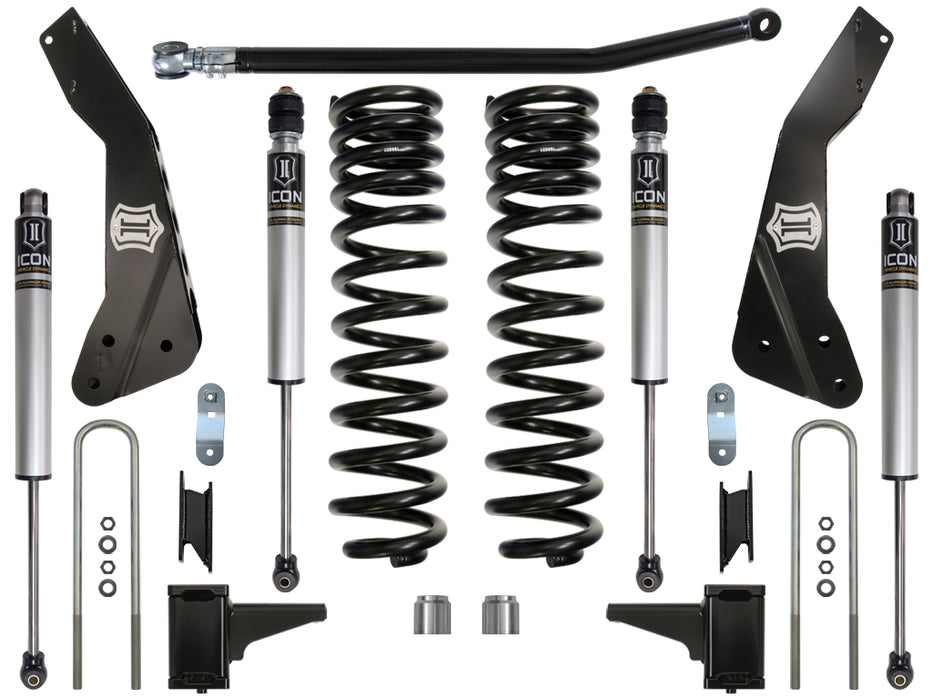

This 4.5" System for the 2011-2016 Super Duty is one of the best riding suspension systems ICON has ever developed. This system has been engineered using the highest quality materials and components. The dual rate front coil springs combined with our ICON 2.0 Aluminum Series shocks give these trucks the performance they so desperately need. This system comes complete with front coils, shocks, radius arm drop down brackets, rear blocks, U-bolts, and our patented adjustable track bar giving the front end of these trucks perfect track alignment.
Specifications
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Add-On Part | 64039 - 08-UP FSD TRACK BAR BUMP STEER BRACKET KIT |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Description_ASC | APPLICATION NOTE #31: ‘08 - CURRENT SUPERDUTY MODELS WITH GAS ENGINES MAY NEED EXHAUST MODIFIED TO CLEAR FRONT DRIVESHAFT |
| Description_ASC | APPLICATION NOTE #40: RADIUS ARM / 4-LINK FRAME BRACKETS WILL REQUIRE MINOR DRILLING INTO FRAME TO COMPLETE INSTALL |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC | APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.00” Backspace / 6mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25” Backspace / 6mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25” Backspace / 6mm Offset |
| Description_ASC | Ships in multiple boxes |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 05-16 FSD ADJ TRACK BAR W/FK ROD END |
| Description_DES | 05-19 FSD FRONT 4.5" DUAL RATE SPRING KIT |
| Description_DES | 05-UP FSD 4WD 4.5" FRONT 2.0 VS IR |
| Description_DES | 08-UP FSD FRONT 4.5" BOX KIT |
| Description_DES | 11-16 FORD F250/F350 4.5" STAGE 1 SUSPENSION SYSTEM |
| Description_DES | 11-16 FSD RADIUS ARM DROP KIT |
| Description_DES | 11-UP FSD REAR 17" U-BOLT KIT |
| Description_DES | 99-16 FSD 4WD 3-6" REAR 2.0 VS IR |
| Description_DES | 99-UP FSD 5" BLOCK KIT |
| Description_EXT | 2011-2016 FORD F250/F350 4.5" LIFT STAGE 1 SUSPENSION SYSTEM |
| Description_FAB | 100% bolt-on system - no cutting or welding necessary for install |
| Description_FAB | 4.5" more travel from ride height to front bump stops |
| Description_FAB | 50% increase in wheel travel |
| Description_FAB | Clears 35" tall tires & 37" tall tires w/ minor trimming |
| Description_FAB | Dual rate coil spring |
| Description_FAB | Less body-roll than stock truck |
| Description_FAB | Lifetime guarantee that coil springs won’t sag |
| Description_FAB | No change in towing capacity |
| Description_FAB | No drive shaft modifications needed |
| Description_INV | 11-16 F250/F350 4.5" STAGE 1 SUSP SYSTEM |
| Description_MKT | This 4.5" System for the 2011-2016 Super Duty is one of the best riding suspension systems ICON has ever developed. This system has been engineered using the highest quality materials and components. The dual rate front coil springs combined with our ICON 2.0 Aluminum Series shocks give these trucks the performance they so desperately need. This system comes complete with front coils, shocks, radius arm drop down brackets, rear blocks, U-bolts, and our patented adjustable track bar giving the front end of these trucks perfect track alignment. |
| Description_SHO | SUSPENSION SYSTEM |
| Description_TRA | ICON 2011-2016 Ford F250/F350, 4.5" Lift, Stage 1 Suspension System, K64560 |
| height | 6.0 |
| length | 27.0 |
| LTL | N |
| Title | 11-16 FORD F250/F350 4.5" STAGE 1 SUSPENSION SYSTEM |
| weight | 192.0 |
| width | 12.0 |
