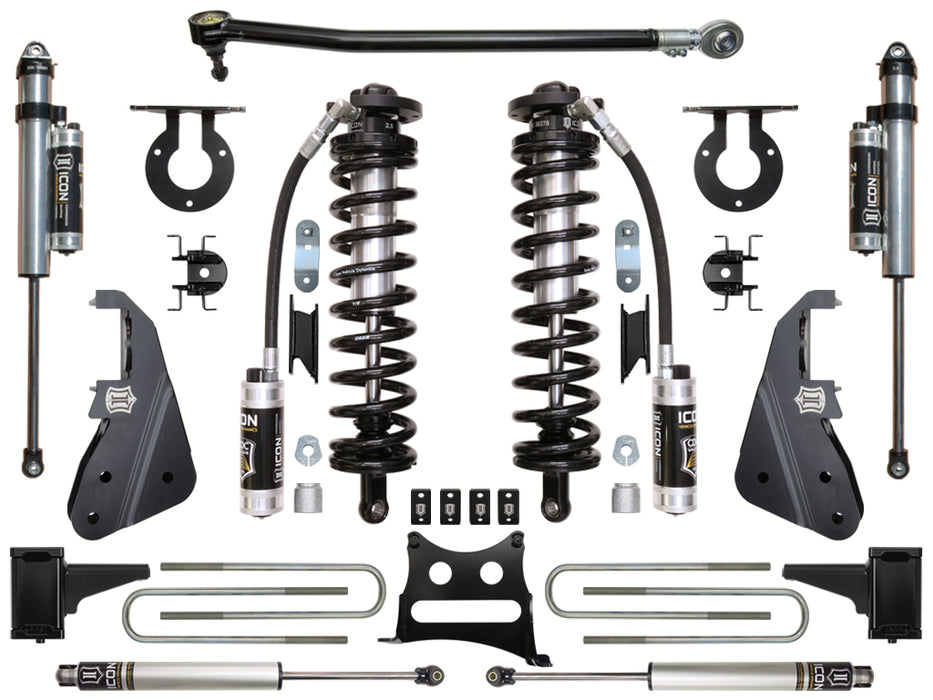

ICON Vehicle Dynamics K63154 2017-2022 FORD F-250/F-350 4-5.5" LIFT STAGE 4 COILOVER CONVERSION SYSTEM
SKU ds_FRDK_K63154
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$8,724.47
-
Original price
$8,724.47
Original price
$8,724.47
$8,724.47
$8,724.47
-
$8,724.47
Current price
$8,724.47
Availability:
Out of stock
Description
Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.5” Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.
Specifications
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 61110 - 17-UP FSD FRONT 4.5 & 7" EXTENDED SS BRAKE LINE KIT |
| Add-On Part | 614700 - 2.0 SHOCK BOOT KIT (EACH) |
| Add-On Part | 64039 - 08-UP FSD TRACK BAR BUMP STEER BRACKET KIT |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Description_ASC | APPLICATION NOTE #120: SECONDARY SHOCK OPTIONS AVAILABLE, CONTACT ICON FOR MORE DETAILS |
| Description_ASC | APPLICATION NOTE #29: 7” SYSTEMS USING A 4-LINK IN PLACE OF THE FACTORY RADIUS ARMS DO NOT REQUIRE THE USE OF ALIGNMENT CAMS. CASTER CAN BE ADJUSTED BY THE LOWER LINK ARMS. |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC | APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY |
| Description_ASC | APPLICATION NOTE #88: REMOVAL OF THE COIL CENTERING CUP IN FACTORY COIL BUCKET REQUIRED FOR INSTALLATION. |
| Description_ASC | APPLICATION NOTE #8: THIS SYSTEM MAY REQUIRE A CARRIER BEARING DROP BRACKET KIT (33700) |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.00” Backspace / 6mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25” Backspace / 6mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25” Backspace / 6mm Offset |
| Description_ASC | Ships in multiple boxes |
| Description_ASC | TECH NOTE: 2017-2019 Super Duty models will have front lift height range of 4-5.5 over stock |
| Description_ASC | TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 3.75-5.25" over stock |
| Description_ASC | TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height range of 4.75-6.25" over stock |
| Description_ASC | TECH NOTE: 2020-UP Super Duty models have a lower ride height from the factory than 2017-2019 trucks. This results in an increase of approximately .75" of additional lift height over ICON's advertised numbers. |
| Description_ASC | TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install) |
| Description_ASC | TECH NOTE: Track bar bracket part number 64039 is optional, but recommended to correct steering geometry. |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 05-UP FSD 4" 2.5 VS RR CDCV BOLT IN CO CONVERSION KIT |
| Description_DES | 05-UP FSD DUAL STABILIZER KIT |
| Description_DES | 08-UP FSD FRONT 4.5" BOX KIT |
| Description_DES | 11-UP FSD REAR 17" U-BOLT KIT |
| Description_DES | 17-22 FORD F-250/F-350 4-5.5" STAGE 4 COILOVER CONVERSION SYSTEM |
| Description_DES | 17-UP FSD ADJ TRACKBAR KIT |
| Description_DES | 17-UP FSD RADIUS ARM DROP KIT |
| Description_DES | 99-UP FSD 3-6" REAR 2.5 VS PB CDCV PAIR |
| Description_DES | 99-UP FSD 4WD STABILIZER(DUAL OPPOSING) 2.0 VS IR |
| Description_DES | 99-UP FSD 5" BLOCK KIT |
| Description_EXT | 2017-2022 FORD F-250/F-350 4-5.5" LIFT STAGE 4 COILOVER CONVERSION SYSTEM |
| Description_FAB | Bolt-in system fits in OE coil bucket location |
| Description_FAB | Coilover conversion allows for addition of secondary shock |
| Description_FAB | Corrosion resistant CAD plated coilover shock body with 7/8" shaft |
| Description_FAB | Decreased body roll and improved on and off-road ride dynamics |
| Description_FAB | Eibach coil springs guaranteed for life against sagging or breakage |
| Description_FAB | FK Rod End bearings for extended longevity and minimal deflection |
| Description_FAB | Increased wheel travel and ride quality over stock |
| Description_FAB | Rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish |
| Description_FAB | Ride height adjustable coilovers provide 4-5.5" or 4.75-6.25" of lift, depending on year model of truck |
| Description_FAB | Shocks are fully rebuildable and revalveable |
| Description_FAB | Vehicle-specific shock valving provides unparalleled ride quality and control |
| Description_INV | 17-22 FSD 4-5.5" STG 4 CO CONV SYSTEM |
| Description_MKT | Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.5” Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability. |
| Description_SHO | SUSPENSION SYSTEM |
| Description_TRA | ICON 2017-2022 Ford F250/F350, 4-5.5" Lift, Stage 4 Suspension System, K63154 |
| height | 7.0 |
| length | 31.0 |
| LTL | N |
| Title | ICON 2017-2022 Ford F250/F350, 4-5.5" Lift, Stage 4 Suspension System |
| weight | 228.0 |
| width | 13.0 |
