ICON Vehicle Dynamics K63142 2017-2022 FORD F-250/F-350 2.5-3" LIFT STAGE 2 COILOVER CONVERSION SYSTEM
SKU ds_FRDK_K63142
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$5,494.55
-
Original price
$5,494.55
Original price
$5,494.55
$5,494.55
$5,494.55
-
$5,494.55
Current price
$5,494.55
Availability:
Only 3 left!
Description

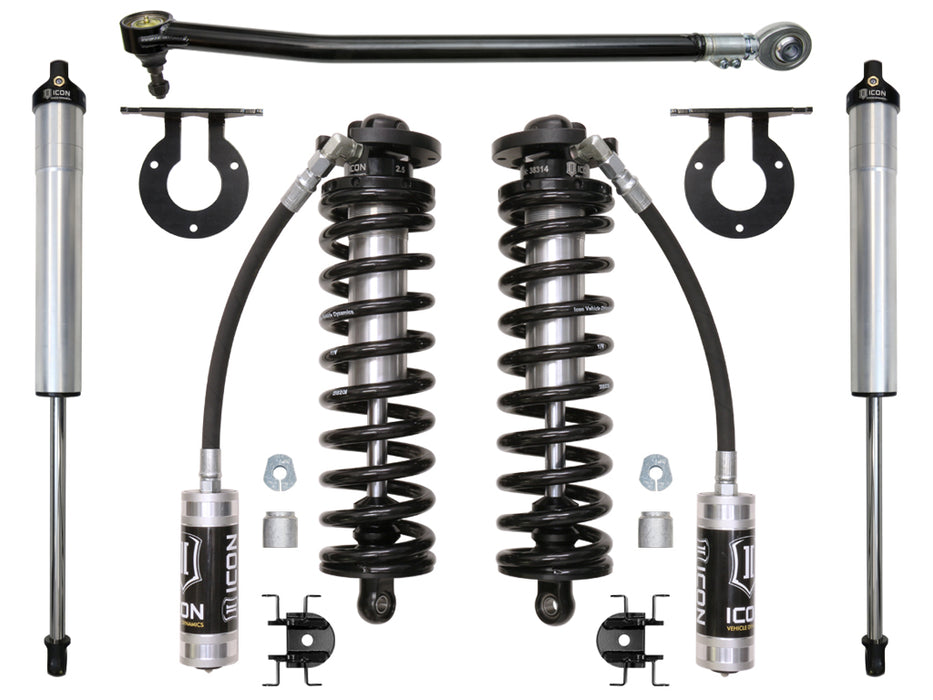

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2022 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.
Specifications
| Description_ASC | APPLICATION NOTE #120: SECONDARY SHOCK OPTIONS AVAILABLE, CONTACT ICON FOR MORE DETAILS |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC | APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY |
| Description_ASC | APPLICATION NOTE #88: REMOVAL OF THE COIL CENTERING CUP IN FACTORY COIL BUCKET REQUIRED FOR INSTALLATION. |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.00” Backspace / 6mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25” Backspace / 6mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25” Backspace / 6mm Offset |
| Description_ASC | Ships in multiple boxes |
| Description_ASC | TECH NOTE: 2017-2019 Super Duty models will have front lift height range of 2.5-3" over stock |
| Description_ASC | TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 2.25-2.75" over stock |
| Description_ASC | TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height range of 3.25-3.75" over stock |
| Description_ASC | TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install) |
| Description_ASC | TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 05-UP FSD 2.5" 2.5 VS RR BOLT IN CO CONVERSION KIT |
| Description_DES | 17-22 FORD F-250/F-350 2.5-3" STAGE 2 COILOVER CONVERSION SYSTEM |
| Description_DES | 17-UP FSD ADJ TRACKBAR KIT |
| Description_DES | 99-UP FSD 0-3" REAR 2.5 VS IR PAIR |
| Description_EXT | 2017-2022 FORD F-250/F-350 2.5-3" LIFT STAGE 2 COILOVER CONVERSION SYSTEM |
| Description_FAB | 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish |
| Description_FAB | Bolt-in system fits in OE coil bucket location |
| Description_FAB | Coilover conversion allows for addition of secondary shock |
| Description_FAB | Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts |
| Description_FAB | Decreased body roll and improved on and off-road ride dynamics |
| Description_FAB | Eibach coil springs guaranteed for life against sagging or breakage |
| Description_FAB | FK Rod End bearings for extended longevity and minimal deflection |
| Description_FAB | Ride height adjustable coilovers provide 2.5-3" or 3.25-3.75" of lift, depending on year model of truck |
| Description_FAB | Shocks are fully rebuildable and revalveable |
| Description_FAB | Vehicle-specific shock valving provides unparalleled ride quality and control |
| Description_INV | 17-22 FSD 2.5-3" STG 2 CO CONV SYSTEM |
| Description_MKT | ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2022 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary. |
| Description_SHO | SUSPENSION SYSTEM |
| Description_TRA | ICON 2017-2022 Ford F250/F350, 2.5-3" Lift, Stage 2 Coilover Conversion System, K63142 |
| height | 7.0 |
| length | 31.0 |
| LTL | N |
| weight | 121.0 |
| width | 13.0 |
