ICON Vehicle Dynamics K53201 22-23 TUNDRA 1.25-3.5" STAGE 11 SUSPENSION SYSTEM BILLET
SKU ds_FRDK_K53201
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$11,166.30
-
Original price
$11,166.30
Original price
$11,166.30
$11,166.30
$11,166.30
-
$11,166.30
Current price
$11,166.30
Availability:
Only 1 left!
Description
Rounding out the Stage 11 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2022-2023 Tundra. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Also equipped with CDC Valves, these offer 10 settings of compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 2.5 Series CDCV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.
Specifications
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Description_ASC | APPLICATION NOTE #142: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH LOAD-LEVELING REAR HEIGHT CONTROL AIR SUSPENSION. |
| Description_ASC | APPLICATION NOTE #144: NOT COMPATIBLE WITH TRD PRO |
| Description_ASC | APPLICATION NOTE #146: TUNDRA SR5 EQUIPPED WITH TRD SPORT PACKAGE LIFT RANGE WILL BE 2.25-4.5" |
| Description_ASC | APPLICATION NOTE #149: FOR 4WD MODELS WITHOUT TRD OFF-ROAD PACKAGE ICON RECOMMENDS USING ICON DIFF DROP (PART# 55156) OR USING TOYOTA TRD AXLES (PART# 434200C020 DRIVER / 434100C020 PASS). FAILURE TO DO SO COULD RESULT IN FRONT AXLE DAMAGE. NOT REQUIRED FOR TRD PRO. |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE. |
| Description_ASC | APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE. |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required) |
| Description_ASC | Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset |
| Description_ASC | TECH NOTE: If upgrading a Tundra equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional |
| Description_ASC | TECH NOTE: Included rear springs net .5" of rear lift on a Tundra without TRD Off-Road or TRD Sport suspension packages. A Tundra equipped with TRD Off-Road or TRD Sport packages will net 0" of lift, remaining at stock height in the rear. If taller rear ride heights are desired, consider ICON part # K53201S. |
| Description_ASC | TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-3.5" over stock |
| Description_ASC | TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-3" over stock |
| Description_ASC | TECH NOTE: Tundras equipped with automatic leveling headlights also require part number 55153 |
| Description_ASM | ICON 22-23 TUNDRA 1.25-3.5" STAGE 11 SUSPENSION SYSTEM BILLET |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 22-23 TUNDRA .5" LIFT TRIPLE RATE REAR COIL SPRING KIT |
| Description_DES | 22-23 TUNDRA 0-1" REAR 2.5 VS CDCV RR PAIR |
| Description_DES | 22-23 TUNDRA 1.25-3.5" STAGE 11 SUSPENSION SYSTEM BILLET |
| Description_DES | 22-23 TUNDRA 2.5 VS RR CDCV COILOVER KIT |
| Description_DES | 22-23 TUNDRA BILLET REAR ADJ TRACK BAR KIT |
| Description_DES | 22-23 TUNDRA BILLET REAR LOWER LINK KIT |
| Description_DES | 22-23 TUNDRA BILLET REAR UPPER LINK KIT |
| Description_DES | 22-23 TUNDRA BILLET UCA DJ PRO KIT |
| Description_DES | 22-23 TUNDRA SWAY BAR DROP KIT |
| Description_EXT | Stage 11 includes remote res coilovers for 1.25-3.5” of lift, better off-road performance and 35” tire fitment. Billet UCAs, links, 2.5 Series remote reservoir shocks, with triple rate rear coils and track bar. CDCV for damping adjustment. |
| Description_FAB | 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers |
| Description_FAB | 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling |
| Description_FAB | Adjustable front ride heights from 1.252-3.5” of front lift over stock when used with included billet aluminum UCAs |
| Description_FAB | All ICON shock absorbers are fully rebuildable and re-tunable |
| Description_FAB | All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard |
| Description_FAB | Allows for up to 40% increase in front wheel travel over stock without overstressing OE components |
| Description_FAB | Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability |
| Description_FAB | Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment |
| Description_FAB | Included sway bar drop brackets reduce bind in OE sway bar links |
| Description_FAB | On-vehicle adjustable rear track bar properly centers rear axle while also improve rear suspension performance |
| Description_FAB | Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift (non-TRD models) |
| Description_FAB | UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation |
| Description_FAB | Vehicle specific design for 2022-2023 Toyota Tundra |
| Description_INV | K53201 |
| Description_MKT | ICON billet aluminum adjustable rear upper and lower links are made from CNC machined 6061 aluminum and anodized for corrosion resistance. These link arm kits feature PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability using ICON’s double adjuster system. Additionally, multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance. |
| Description_MKT | Rounding out the Stage 11 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2022-2023 Tundra. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Also equipped with CDC Valves, these offer 10 settings of compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 2.5 Series CDCV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra. |
| Description_MKT | The ICON Billet Rear Adjustable Track Bar helps center the axle of your lifted 2022-2023 rod end threads allows easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar. The track bar is CNC machined from solid 6061 aluminum bar, and anodized to match the look of ICON's billet upper and lower links. |
| Description_MKT | The ICON Billet Rear Adjustable Track Bar helps center the axle of your lifted 2022-2023 Tundra. Double adjuster rod end threads allow easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar. The track bar is CNC machined from solid 6061 aluminum bar, and anodized to match the look of ICON's billet upper and lower links. |

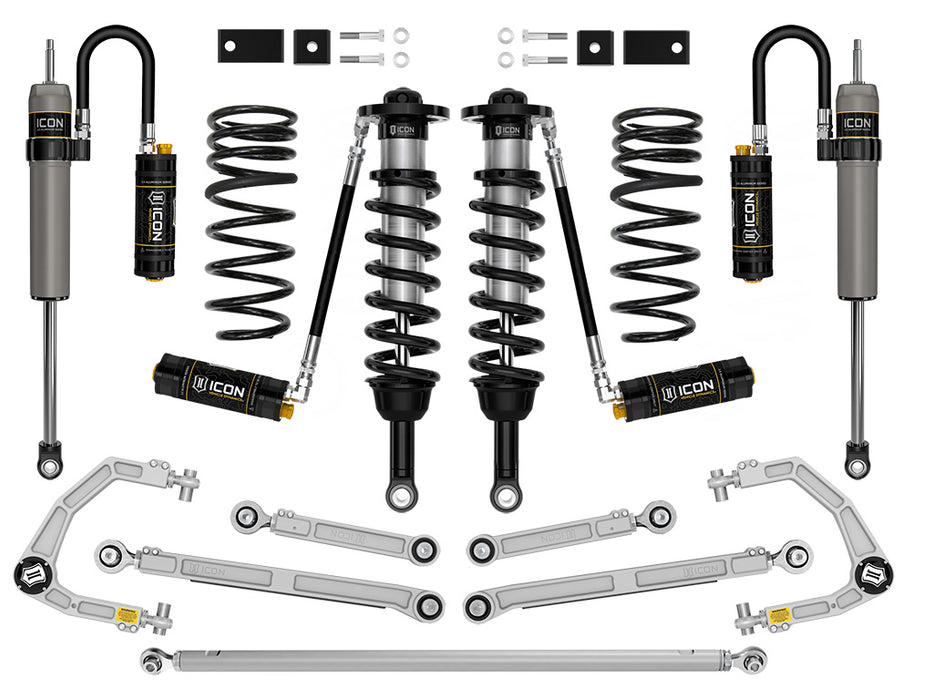

| Description_MKT | The ICON Vehicle Dynamics Stage 11 complete suspension system for the 2022-2023 Toyota Tundra builds upon the Stage 10 system with the addition of triple rate rear coils springs and an adjustable rear track bar. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front and rear-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the rear coils and track bar, a 2.5 Series CDCV remote reservoir front coilover shock and billet aluminum front upper control arm combo is included along with a front sway bar drop kit and 2.5 Aluminum Series CDCV rear remote reservoir shocks with billet upper and lower rear links. |
| Description_MKT | The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2022-2023 Toyota Tundra with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. |
| Description_MKT | The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components. |
| Description_MKT | The rear triple-rate coil design provides a softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. Specifically designed to net .5" of rear lift on a non-TRD Tundra or 0" of rear lift on a Tundra equipped with a TRD suspension Package desiring improved performance, but OE ride height. |
| Description_MKT | This Stage 11 system features the 2022-2023 Toyota Tundra VS 2.5 Series remote reservoir front coilovers equipped with CDC Valves. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. |
| Description_SHO | SUSPENSION SYSTEM |
| Description_TRA | ICON 2022-2023 Toyota Tundra 1.25-3.5" Lift, Stage 11, 2.5 Suspension System, Billet, K53201 |
| height | 7.0 |
| length | 30.0 |
| LTL | N |
| Title | ICON 22-23 Toyota Tundra 1.25-3.5" Lift, Stage 11, 2.5 Suspension System, Billet |
| weight | 208.0 |
| width | 13.0 |
