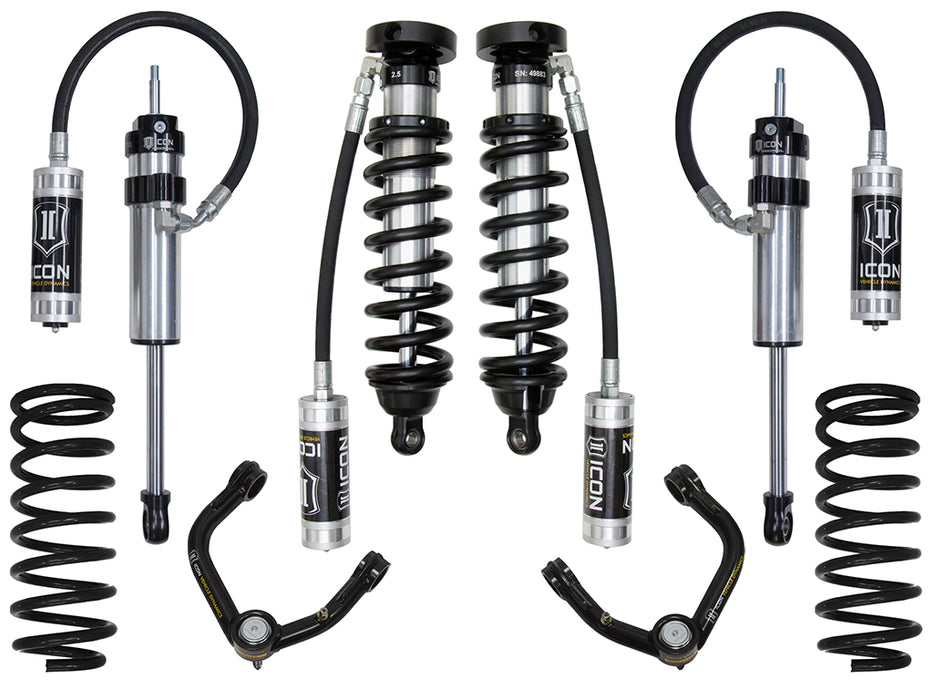

ICON Vehicle Dynamics K53134 1996-2002 TOYOTA 4RUNNER 0-3" LIFT STAGE 4 SUSPENSION SYSTEM
SKU ds_FRDK_K53134
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$5,847.28
-
Original price
$5,847.28
Original price
$5,847.28
$5,847.28
$5,847.28
-
$5,847.28
Current price
$5,847.28
Availability:
Out of stock
Description
This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Specifications
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 191011 - TUBULAR UCA BILLET CAP SET |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR) |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Description_ASC | APPLICATION NOTE #111: BUMP STOP SPACER KIT AVAILABLE THAT CAN BE INSTALLED TO INCREASE THREADS SHOWING BEYOND MAX RECOMMENDATION. |
| Description_ASC | APPLICATION NOTE #35: REMOTE RESERVOIR MOUNTING BRACKETS MAY INTERFERE WITH AFTERMARKET BUMPER MOUNTS / WINDSHIELD WASHER BOTTLES. |
| Description_ASC | APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.00” Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.00” Backspace / 0mm Offset |
| Description_ASC | Ships in multiple boxes |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 96-02 4RUNNER 0-3" STAGE 4 SUSPENSION SYSTEM |
| Description_DES | 96-02 4RUNNER 1" REAR COIL SPRING KIT |
| Description_DES | 96-02 4RUNNER 2.5 VS EXT TRAV RR COILOVER KIT |
| Description_DES | 96-02 4RUNNER REAR 2.5 VS RR UPKG PAIR |
| Description_DES | 96-04 TACOMA/96-02 4RNR TUBULAR UCA DJ KIT |
| Description_EXT | 1996-2002 TOYOTA 4RUNNER 0-3" LIFT STAGE 4 SUSPENSION SYSTEM |
| Description_FAB | 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish |
| Description_FAB | Bolt-on design makes for straightforward install |
| Description_FAB | CNC machined 6061 aircraft-grade aluminum components |
| Description_FAB | Coilovers are adjustable from 0-3" of lift height |
| Description_FAB | Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts |
| Description_FAB | Decreased body roll |
| Description_FAB | FK Rod End bearings for extended longevity and minimal deflection |
| Description_FAB | ICON engineered rear coils provide 1" of lift and improved performance |
| Description_FAB | Increased wheel travel and ride quality over stock |
| Description_FAB | Shocks are fully rebuildable and revalveable |
| Description_FAB | Tubular steel upper control arms feature ICON Delta Joints |
| Description_FAB | Vehicle-specific tuned front and rear shocks provide superior damping and control |
| Description_INV | 96-02 4RUNNER STAGE 4 SUSP SYSTEM |
| Description_MKT | The 1996-2002 Toyota 4Runner was an excellent vehicle off the showroom floor over a decade ago, and Toyota’s reputation for reliability and performance continues to draw the attention of both hardcore off-road enthusiasts and newcomers to the “3rd Gen” platform to this day. ICON engineers have assessed the 3rd Gen 4Runner front to back and developed components that work together to extract maximum performance out of the vehicle. |
| Description_MKT | This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint. |
| Description_MKT | With the ICON Stage 4 suspension system on and off-road performance is significantly improved with 2.5 Series Extended Travel Remote Reservoir Coilovers and 2.5 Aluminum Series Remote Reservoir Rear Shocks that feature ICON engineered coil springs, vehicle-specific shock valving, FK Rod End bearings, and high-quality CNC-machined components for superior damping and control. The 2.5 VS Series coilovers are height adjustable from 0-3” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Fully serviceable shock absorbers mean that these components can be rebuilt or re-valved as necessary, providing a long service life and the ability to customize the ride quality for unique vehicle setups. The addition of an ICON tubular steel upper control arm kit provides increased wheel travel over stock while also offering alignment correction for improved overall handling. ICON engineered rear coil springs increase rear suspension performance while also providing 1" of rear end lift. ICON Vehicle Dynamics' 1996-2002 4Runner Stage 4 suspension system is an excellent choice for those drivers looking to drastically improve the performance and handling characteristics of their 3rd Gen on the road as well as in the dirt. |
| Description_SHO | SUSPENSION SYSTEM |
| Description_TRA | ICON 1996-2002 Toyota 4Runner, 0-3" Lift, 3.0 Stage 4 Suspension System, K53134 |
| height | 8.0 |
| length | 27.0 |
| LTL | N |
| Title | 96-02 4RUNNER 0-3" STAGE 4 SUSPENSION SYSTEM |
| weight | 124.0 |
| width | 12.0 |
