ICON Vehicle Dynamics K53113 2005-2015 TACOMA/20003-2009 4RUNNER/2007-2009 FJ S2 STAGE 3 UPGRADE SYSTEM
SKU ds_FRDK_K53113
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$4,044.73
-
Original price
$4,044.73
Original price
$4,044.73
$4,044.73
$4,044.73
-
$4,044.73
Current price
$4,044.73
Availability:
Out of stock
Description

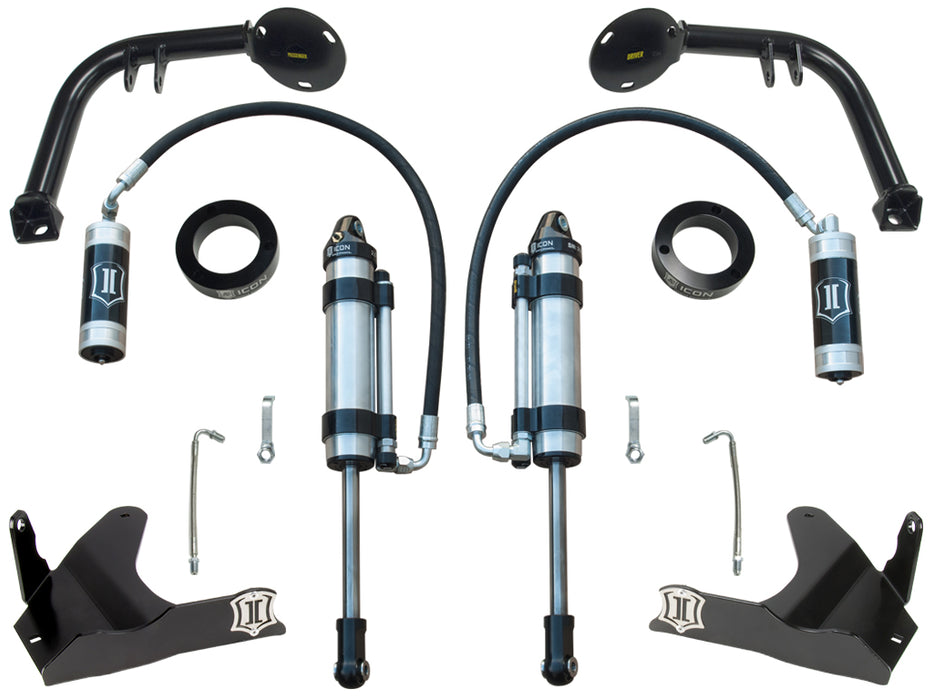

The S2 Secondary Shock System utilizes the factory lower control arms and maintains OE track width while a combination of a billet aluminum shock tower adapters, fabricated shock hoops, and steel skid plates (with incorporated shock mounts) make for a straightforward install with the exceptional build quality you would expect from an ICON Vehicle Dynamics product. The system was designed to eliminate the need for any major alteration of the vehicle’s frame or any other factory suspension components, and the components are 100% removable in case the system is to be installed on another vehicle. The modular design of the S2 kit also allows for standalone installation of the skid plates, which provides the added benefit of protecting the factory lower control arms from potential trail damage that can be experienced while off-road.
Specifications
| Add-On Part | 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR) |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable | Yes |
| Bushings Included | NO |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Description_ASC | APPLICATION NOTE #117: NOT RECOMMENDED WITH REMOTE RESERVOIR COILOVER |
| Description_ASC | APPLICATION NOTE #17: THESE ARE STAND-ALONE KITS AND ARE NOT TO BE USED IN CONJUNCTION WITH ANY OTHER AFTERMARKET KITS |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC | APPLICATION NOTE #59: WELDING REQUIRED - LOWER CONTROL ARM |
| Description_ASC | APPLICATION NOTE #95: DOES NOT WORK WITH TRD BIG BRAKE KIT |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 4.75” Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9 with 5.00” Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 20x9 with 5.00” Backspace / 0mm Offset |
| Description_ASC | Ships in multiple boxes |
| Description_ASC | TECH NOTE: Not compatible with KDSS equipped GX470s |
| Description_DEF | Suspension Shock Absorber Kit |
| Description_DES | 05-15 TACOMA/03-09 4RUNNER/07-09 FJ S2 STAGE 3 UPGRADE SYSTEM |
| Description_DES | 07-09 FJ/03-09 4RUNNER /05-15 TACOMA LCA SKID PLATE KIT |
| Description_DES | 07-UP FJ/03-UP 4RUNNER/05-UP TACOMA S2 SHOCK HOOP KIT |
| Description_DES | S2 FRONT 2.5 OMEGA RR PAIR |
| Description_EXT | 2005-2015 TACOMA/20003-2009 4RUNNER/2007-2009 FJ S2 STAGE 3 UPGRADE SYSTEM |
| Description_FAB | 2.5 Aluminum Series secondary shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish |
| Description_FAB | Drastically improves vehicle damping ability off-road |
| Description_FAB | Increased vehicle stability on-road |
| Description_FAB | Maintains OE track width |
| Description_FAB | Mostly bolt-on design makes for straightforward install |
| Description_FAB | Omega Series two-tube bypass allows for compression and rebound damping adjustment |
| Description_FAB | Shocks are fully rebuildable and revalveable |
| Description_FAB | Utilizes factory lower control arms |
| Description_FAB | Vehicle-specific tuned secondary shocks provide increased damping and oil volume |
| Description_INV | TACOMA/4RUNNER/FJ S2 STAGE 3 SYSTEM |
| Description_MKT | The ICON Vehicle Dynamics S2 Secondary Shock System redefines the off-road capability of the 2005-2015 Toyota Tacoma, 2003-2009 Toyota 4Runner, or 2007-2009 Toyota FJ Cruiser by allowing for the installation of a secondary shock to an existing ICON coilover setup. The addition of a secondary 2.5 Aluminum Series or Omega Bypass shock means rougher terrain and larger off-road obstacles can be overcome with confidence as the damping ability of the vehicle’s suspension is effectively doubled. As opposed to overly complicated and expensive long travel kits, the ICON S2 System is an affordable upgrade that drastically increases off-road performance, is easy to install, and has a modular design that allows Toyota owners to upgrade in steps or all at once. |
| Description_MKT | The S2 Secondary Shock System utilizes the factory lower control arms and maintains OE track width while a combination of a billet aluminum shock tower adapters, fabricated shock hoops, and steel skid plates (with incorporated shock mounts) make for a straightforward install with the exceptional build quality you would expect from an ICON Vehicle Dynamics product. The system was designed to eliminate the need for any major alteration of the vehicle’s frame or any other factory suspension components, and the components are 100% removable in case the system is to be installed on another vehicle. The modular design of the S2 kit also allows for standalone installation of the skid plates, which provides the added benefit of protecting the factory lower control arms from potential trail damage that can be experienced while off-road. |
| Description_SHO | S2 SHOCK SYSTEM |
| Description_TRA | ICON 03-09 4Runner/07-09 FJ Cruiser/05-15 Tacoma Stage 3 S2 Secondary Shock Kit, K53113 |
| height | 9.0 |
| length | 39.0 |
| LTL | N |
| Mounting Hardware Included | Yes |
| Title | 05-15 TACOMA/03-09 4RUNNER/07-09 FJ S2 STAGE 3 UPGRADE SYSTEM |
| weight | 73.0 |
| width | 15.0 |
