ICON Vehicle Dynamics K53093 1991-1997 TOYOTA LAND CRUISER 80 SERIES 3" LIFT STAGE 3 SUSPENSION SYSTEM
SKU ds_FRDK_K53093
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$6,426.60
-
Original price
$6,426.60
Original price
$6,426.60
$6,426.60
$6,426.60
-
$6,426.60
Current price
$6,426.60
Availability:
Out of stock
Description

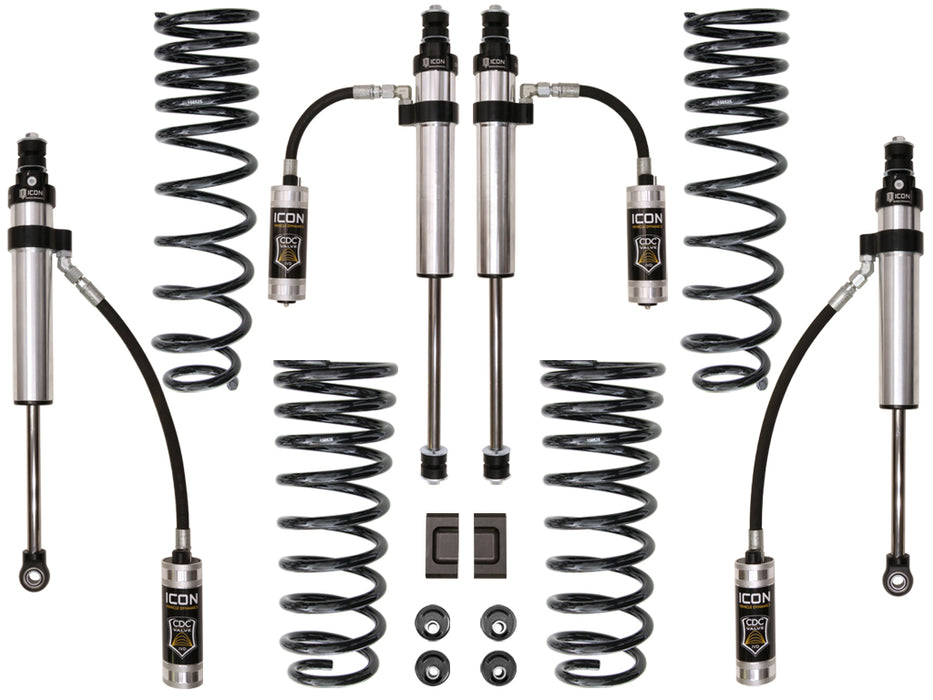

After an in-depth R&D process, ICON engineers have developed a 3” suspension system for the 80 Series that is aimed to improve on-road handling characteristics while also maximizing the Land Cruiser’s off-road potential. This Stage 3 system includes ICON-designed dual rate coil springs, caster correction bushings, sway bar relocation components, all bracketry and hardware required for install, and ICON Vehicle Dynamics 2.5 Aluminum Series remote reservoir shocks that feature a vehicle specific valving for optimized ride quality and balanced damping front to rear. The 2.5" remote reservoir shocks front and rear ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during extended off-road use. The Stage 3 system outfits the 80 Series Land Cruiser with ICON 2.5 Aluminum Series shocks that feature CDCV, or Compression Damping Control Valve. This technology allows end-users to quickly adjust the ride quality of their shocks with the simple turn of a knob – no tools required! With ten high-resolution settings to choose from, the ICON CDC Valve will allow for the perfect ride quality across any terrain. This ICON Stage 3 System is the perfect suspension system for drivers seeking a quality on-road ride with outstanding off-road performance under extreme use, and the ability to fine tune the vehicle's performance for any conditions encountered.
Specifications
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Description_ASC | APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC | APPLICATION NOTE #71: ANY KIT WITH PART #57802P/CP IN IT WITH STOCK REAR COIL SPRINGS VEHICLE WILL RIDE IN BUMP ZONE OF SHOCK. STOCK OR SOME AFTERMARKET COIL SPRINGS MAY COME UNSEATED AT FULL DROOP. |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC | Recommended Aftermarket Wheels: 17x8.5 with 4.63” Backspace |
| Description_ASC | TECH NOTE: ICON’s advertised lift heights are based around a typical 80 Series build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle. |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 91-07 LAND CRUISER 80/100 0-3" REAR 2.5 VS RR CDCV PAIR |
| Description_DES | 91-97 LAND CRUISER 3" FRONT DUAL RATE SPRING KIT |
| Description_DES | 91-97 LAND CRUISER 3" REAR DUAL RATE SPRING KIT |
| Description_DES | 91-97 LAND CRUISER 4.6 DEG CASTER CORRECTION KIT |
| Description_DES | 91-97 LAND CRUISER 80 0-3" FRONT 2.5 VS RR CDCV PAIR |
| Description_DES | 91-97 LAND CRUISER 80 SERIES 3" STAGE 3 SUSPENSION SYSTEM |
| Description_DES | 91-97 LAND CRUISER FRONT SWAY BAR RELOCATION KIT |
| Description_DES | 93-97 LAND CRUISER BRAKE LINE KIT +3" |
| Description_EXT | 1991-1997 TOYOTA LAND CRUISER 80 SERIES 3" LIFT STAGE 3 SUSPENSION SYSTEM |
| Description_FAB | 100% bolt-on design means no drilling, cutting or welding necessary for install |
| Description_FAB | 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish |
| Description_FAB | 2.5 body remote reservoir shocks with 7/8" shafts |
| Description_FAB | 3” lift height |
| Description_FAB | 6061 aircraft grade aluminum CNC machined components |
| Description_FAB | Approximately 35% increased rear wheel travel over stock |
| Description_FAB | Approximately 40% increased front wheel travel over stock |
| Description_FAB | ICON CDC Valve allows quick and easy end-user compression adjustability |
| Description_FAB | ICON-engineered dual rate coil springs provide exceptional on-road ride quality and outstanding off-road performance |
| Description_FAB | Vehicle specific tuned 2.5 Series front and rear shocks offer superior shock damping and control |
| Description_INV | 91-97 LC80 3" STAGE 3 SUSPENSION SYSTEM |
| Description_MKT | After an in-depth R&D process, ICON engineers have developed a 3” suspension system for the 80 Series that is aimed to improve on-road handling characteristics while also maximizing the Land Cruiser’s off-road potential. This Stage 3 system includes ICON-designed dual rate coil springs, caster correction bushings, sway bar relocation components, all bracketry and hardware required for install, and ICON Vehicle Dynamics 2.5 Aluminum Series remote reservoir shocks that feature a vehicle specific valving for optimized ride quality and balanced damping front to rear. The 2.5" remote reservoir shocks front and rear ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during extended off-road use. The Stage 3 system outfits the 80 Series Land Cruiser with ICON 2.5 Aluminum Series shocks that feature CDCV, or Compression Damping Control Valve. This technology allows end-users to quickly adjust the ride quality of their shocks with the simple turn of a knob – no tools required! With ten high-resolution settings to choose from, the ICON CDC Valve will allow for the perfect ride quality across any terrain. This ICON Stage 3 System is the perfect suspension system for drivers seeking a quality on-road ride with outstanding off-road performance under extreme use, and the ability to fine tune the vehicle's performance for any conditions encountered. |
| Description_SHO | SUSPENSION SYSTEM |
| Description_TRA | ICON 1991-97 Toyota 80 Series Land Cruiser, 3" Lift, Stage 3 Suspension System, K53093 |
| height | 7.0 |
| length | 31.0 |
| LTL | N |
| Title | 91-97 LAND CRUISER 80 SERIES 3" STAGE 3 SUSPENSION SYSTEM |
| weight | 152.0 |
| width | 13.0 |
