ICON Vehicle Dynamics K53082 98-07 LAND CRUISER 100 / LEXUS LX470 SERIES 0-3" STAGE 2 SUSPENSION SYSTEM
SKU ds_FRDK_K53082
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$3,710.25
-
Original price
$3,710.25
Original price
$3,710.25
$3,710.25
$3,710.25
-
$3,710.25
Current price
$3,710.25
Availability:
Out of stock
Description

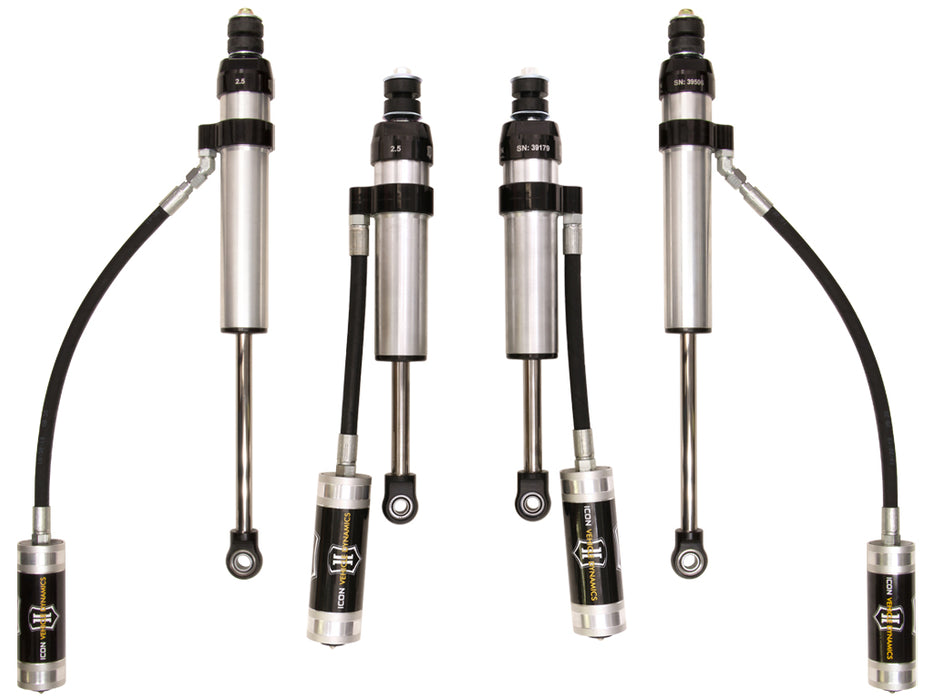

The 1998 - 2007 Toyota Land Cruiser 100 Series has a compact torsion bar IFS front suspension, and requires a lot of work to be done in a small space. When lift is added via torsion bar adjustment there is even more spring energy that must be absorbed to adequately control the vehicle. Keeping this in mind, those looking to achieve 0-3" of lift (aftermarket upper control required) can install the Stage 2 shock system for maximum suspension travel and performance. ICON engineers have developed a unique 2.5” diameter shock system, with remote reservoirs front and rear, that can handle these demands. 2.5 Aluminum Series reservoir shocks front and rear ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during extended off-road use. With a lower spherical rod end bearing and heavy-duty upper stem bushings, deflection is kept to a minimum for precise control of the suspension even under high loads.
Specifications
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC | APPLICATION NOTE #58: KITS CONSIST OF SHOCKS ONLY. ADDITIONAL COMPONENTS REQUIRED TO ACHIEVE DESIRED LIFT HEIGHT OVER STOCK |
| Description_ASC | APPLICATION NOTE #73: AFTERMARKET CONTROL ARM REQUIRED FOR CLEARANCE |
| Description_ASC | APPLICATION NOTE #97: NOT COMPATIBLE WITH AHC EQUIPPED MODELS |
| Description_ASC | APPLICATION NOTE #98: REQUIRES CASTER CORRECTION BUSHINGS OR PLATES |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC | Recommended Aftermarket Wheels: 17x8.5 with 4.75” Backspace / 0mm Offset |
| Description_ASC | Ships in multiple boxes |
| Description_DEF | Suspension Shock Absorber Kit |
| Description_DES | 91-07 LAND CRUISER 80/100 0-3" REAR 2.5 VS RR PAIR |
| Description_DES | 98-07 LAND CRUISER 100 / LEXUS LX470 SERIES 0-3" STAGE 2 SUSPENSION SYSTEM |
| Description_DES | 98-07 LAND CRUISER 100 SERIES 0-3" FRONT 2.5 VS RR PAIR |
| Description_EXT | 1998-2007 TOYOTA LAND CRUISER 100 SERIES/LEXUS LX470 0-3" LIFT STAGE 2 SUSPENSION SYSTEM |
| Description_FAB | 2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish |
| Description_FAB | 6061 Aircraft grade aluminum CNC machined components |
| Description_FAB | FK rod end bearings for extended longevity and minimal deflection |
| Description_FAB | No cutting or welding necessary for install |
| Description_FAB | Remote reservoirs provided for extended shock damping performance |
| Description_FAB | Vehicle specific tuned 2.5" front and rear shocks for superior shock damping and control |
| Description_INV | 98-07 LC100/LEXUS LX470 STAGE 2 SUSP SYS |
| Description_MKT | The 1998 - 2007 Toyota Land Cruiser 100 Series has a compact torsion bar IFS front suspension, and requires a lot of work to be done in a small space. When lift is added via torsion bar adjustment there is even more spring energy that must be absorbed to adequately control the vehicle. Keeping this in mind, those looking to achieve 0-3" of lift (aftermarket upper control required) can install the Stage 2 shock system for maximum suspension travel and performance. ICON engineers have developed a unique 2.5” diameter shock system, with remote reservoirs front and rear, that can handle these demands. 2.5 Aluminum Series reservoir shocks front and rear ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during extended off-road use. With a lower spherical rod end bearing and heavy-duty upper stem bushings, deflection is kept to a minimum for precise control of the suspension even under high loads. |
| Description_SHO | SHOCK ABSORBER KIT |
| Description_TRA | ICON 98-07 Toyota Land Cruiser/Lexus LX470, 0-3" Lift, Stage 2 Suspension System, K53182 |
| height | 9.0 |
| length | 39.0 |
| LTL | N |
| weight | 52.0 |
| width | 10.0 |
