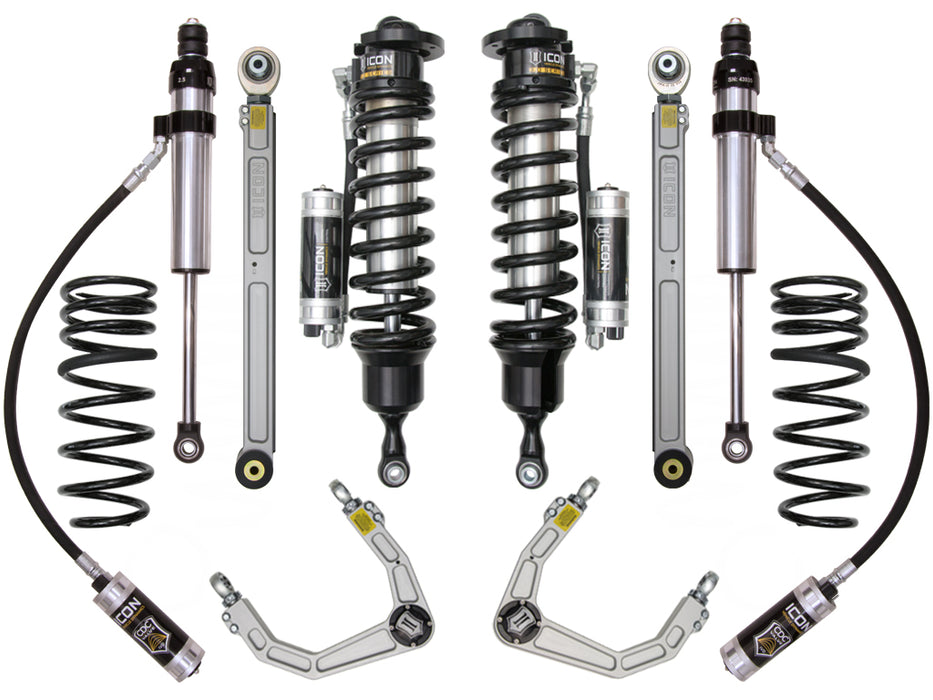

ICON Vehicle Dynamics K53076 2008-UP TOYOTA LAND CRUISER 200 SERIES 2.5-3.5" LIFT STAGE 6 SUSPENSION SYSTEM
SKU ds_FRDK_K53076
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$10,706.43
-
Original price
$10,706.43
Original price
$10,706.43
$10,706.43
$10,706.43
-
$10,706.43
Current price
$10,706.43
Availability:
Out of stock
Description
The 200 Series Toyota Land Cruiser is a luxurious vehicle packed with “all the bells and whistles”, but underneath all of the sophistication it is still a very capable vehicle that sees heavy use both on and off-road worldwide. While the 200 Series has exceptional ride characteristics in stock form, it is clear that the suspension is in need of a serious upgrade if the vehicle is to serve any measurable amount of time in the dirt. ICON Vehicle Dynamics has addressed this need for a comprehensive suspension solution and is proud to re-introduce several suspension systems that drastically increase the overall ability of the 2008-UP Toyota Land Cruiser.
Specifications
| Add-On Part | 191010 - ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Description_ASC | APPLICATION NOTE #111: BUMP STOP SPACER KIT AVAILABLE THAT CAN BE INSTALLED TO INCREASE THREADS SHOWING BEYOND MAX RECOMMENDATION. |
| Description_ASC | APPLICATION NOTE #35: REMOTE RESERVOIR MOUNTING BRACKETS MAY INTERFERE WITH AFTERMARKET BUMPER MOUNTS / WINDSHIELD WASHER BOTTLES |
| Description_ASC | APPLICATION NOTE #46: SUSPENSION SYSTEM COMPATIBLE WITH KDSS. FRONT SWAY BAR RELOCATION BRACKETS NOT USED FOR KDSS EQUIPPED VEHICLES. CERTAIN YEARS REQUIRE TRIMMING FOR FRONT RESERVOIR BRACKET FITMENT. |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 34" x 10.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.75” Backspace / 25mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 6.00” Backspace / 25mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625” Backspace / 16mm Offset |
| Description_ASC | Ships in multiple boxes |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 07-UP FJ/03-UP 4RNR/08-UP LC 200/03-UP GX BILLET LOWER TRAILING ARM KIT |
| Description_DES | 08-UP LAND CRUISER 200 SERIES 2.5-3.5" STAGE 6 SUSPENSION SYSTEM |
| Description_DES | 08-UP LC 200 0-2" REAR 2.5 VS RR CDCV PAIR |
| Description_DES | 08-UP LC 200 1.75" DUAL RATE REAR SPRING KIT |
| Description_DES | 08-UP LC 200 3.0 VS RR CDCV CO KIT |
| Description_DES | 08-UP LC 200 BILLET UCA DJ KIT |
| Description_EXT | 2008-UP TOYOTA LAND CRUISER 200 SERIES 2.5-3.5" LIFT STAGE 6 SUSPENSION SYSTEM |
| Description_FAB | 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish |
| Description_FAB | Billet Aluminum rear lower links offer on-vehicle pinion angle adjustment |
| Description_FAB | Bolt-on design means no cutting or welding necessary for install |
| Description_FAB | CDCV technology allows for quick and easy compression damping adjustment without the need for tools |
| Description_FAB | Corrosion resistant CAD plated coilover shock bodies with 1" shafts |
| Description_FAB | Height adjustable coilovers provide 2.5-3.5" of lift height |
| Description_FAB | ICON engineered dual rate rear coil springs |
| Description_FAB | Improved vehicle dynamics and decreased body roll |
| Description_FAB | Increased wheel travel and ride quality over stock |
| Description_FAB | Shocks are fully rebuildable and revalveable |
| Description_FAB | Vehicle-specific tuned front and rear shocks provide superior damping and control |
| Description_INV | 08-UP LC200 SERIES STAGE 5 SUSP SYSTEM |
| Description_MKT | The 200 Series Toyota Land Cruiser is a luxurious vehicle packed with “all the bells and whistles”, but underneath all of the sophistication it is still a very capable vehicle that sees heavy use both on and off-road worldwide. While the 200 Series has exceptional ride characteristics in stock form, it is clear that the suspension is in need of a serious upgrade if the vehicle is to serve any measurable amount of time in the dirt. ICON Vehicle Dynamics has addressed this need for a comprehensive suspension solution and is proud to re-introduce several suspension systems that drastically increase the overall ability of the 2008-UP Toyota Land Cruiser. |
| Description_SHO | SUSPENSION SYSTEM |
| Description_TRA | ICON 2008-Up Toyota Land Cruiser, 2.5-3.5" Lift, Stage 6 Suspension System, K53076 |
| height | 10.0 |
| length | 33.0 |
| LTL | N |
| Title | 08-UP LAND CRUISER 200 SERIES 2.5-3.5" STAGE 6 SUSPENSION SYSTEM |
| weight | 178.0 |
| width | 15.0 |
