ICON Vehicle Dynamics K53009 05-15 TACOMA 0-3.5"/ 16-UP 0-2.75" STAGE 9 SUSPENSION SYSTEM W BILLET UCA
SKU ds_FRDK_K53009
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$8,088.73
-
Original price
$8,088.73
Original price
$8,088.73
$8,088.73
$8,088.73
-
$8,088.73
Current price
$8,088.73
Availability:
Out of stock
Description
This system features billet aluminum upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Specifications
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Description_ASC | APPLICATION NOTE #109: 2016-UP TACOMA LIFT RANGE IS 0-2.75” |
| Description_ASC | APPLICATION NOTE #110: TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE |
| Description_ASC | APPLICATION NOTE #111: BUMP STOP SPACER KIT 51045 CAN BE INSTALLED TO INCREASE PRELOAD .25” BEYOND MAXIMUM |
| Description_ASC | APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 4.75” Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9 with 5.00” Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 20x9 with 5.00” Backspace / 0mm Offset |
| Description_ASC | Ships in Multiple Boxes |
| Description_ASC | TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25" and 1.375-2.125" of rear lift over stock, depending on rear spring configuration and rear weight |
| Description_DEF | Suspension Lift Kit |

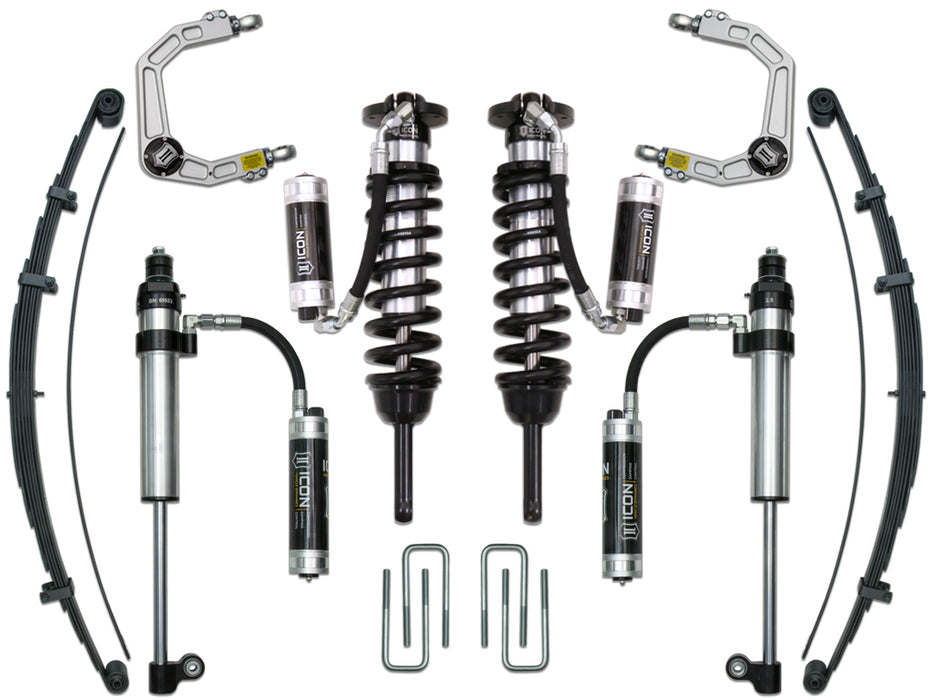

| Description_DES | 05-15 TACOMA 0-3.5"/ 16-UP 0-2.75" STAGE 9 SUSPENSION SYSTEM W BILLET UCA |
| Description_DES | 05-UP TACOMA BILLET UCA DJ KIT |
| Description_DES | 05-UP TACOMA EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT |
| Description_DES | 05-UP TACOMA MULTI RATE RXT LEAF PACK W/ ADD IN LEAF |
| Description_DES | 05-UP TACOMA RXT REAR 2.5 RR CDCV PAIR |
| Description_DES | TOYOTA REAR 8.0" U-BOLT KIT |
| Description_EXT | 2005-2015 TACOMA 0-3.5"/2016-UP 0-2.75" STAGE 9 SUSPENSION SYSTEM WITH BILLET UCA |
| Description_FAB | 2.5 Aluminum Series remote reservoir RXT rear shocks feature one-piece impact extruded aluminum cylinders and 7/8" shafts |
| Description_FAB | 6061 aircraft grade aluminum CNC machined components |
| Description_FAB | Adjustable coilovers with CDCV provide up to 3.5" of front lift height on 2005 to 2015 models and up to 2.75" on 2016-up models |
| Description_FAB | Bolt-on system means no cutting or welding necessary for install |
| Description_FAB | Corrosion resistant CAD plated coilover shock body with 7/8" shaft |
| Description_FAB | Extended Travel coilovers matched with ICON UCA provides increased front droop travel |
| Description_FAB | FK Rod End bearings for extended longevity and minimal deflection |
| Description_FAB | ICON RXT CDCV Rear Shock with unique side-mounted lower eyelet allows for increased travel (up to 20%) while utilizing factory mounting location |
| Description_FAB | Increased wheel travel and ride quality over stock |

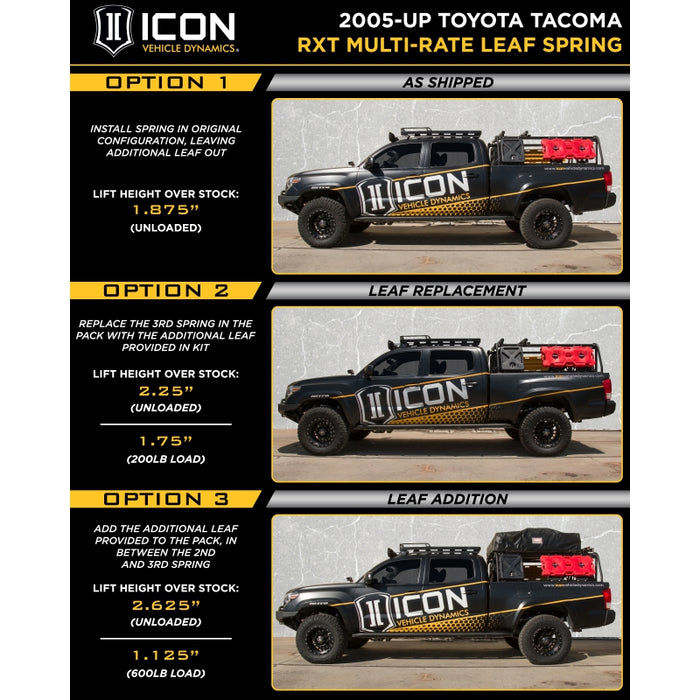

| Description_FAB | Multi-Rate Leaf Spring with 3 user-adjustable spring rates for unique vehicle configurations |
| Description_FAB | Shocks are fully rebuildable and revalveable |
| Description_FAB | Vehicle-specific tuned front and rear shocks for superior shock damping and control |
| Description_FAB | “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability |
| Description_INV | 05-UP TACOMA STAGE 9 SUSP SYS BILLET UCA |
| Description_MKT | ICON Vehicle Dynamics 2005-UP Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. Throughout the development of these systems ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 9 system goes a step further in delivering ICON performance to the Tacoma with the addition of rear suspension components that include an ICON RXT multi-rate leaf spring and a unique RXT-specific 2.5 Series shock. |
| Description_MKT | The Stage 9 system includes vehicle-specific tuned 2.5 Series Extended Travel coilover shocks equipped with ICON's CDC (Compression Damping Control) Valve. The easy-to-adjust CDC Valve allows for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. In addition, the coilovers feature a remote reservoir for exceptional cooling properties, ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel, and are height adjustable from 0-3.5” for 2005-2015 models or 0-2.75" for 2016-Up models, allowing the use of larger, more aggressive wheel and tire combinations. Used in conjunction with the included ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. To increase the ride quality of the truck and gain additional droop travel, the ICON RXT multi-rate leaf springs are added to the rear. Designed with an additional leaf (included with kit) that can be exchanged or added to the pack to yield an additional 10-20% spring rate, this leaf spring is perfect for drivers seeking improved rear ride quality in an “unloaded” vehicle as well as those that are have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires, parts, or other additions. To compliment this increase in rear wheel travel the Stage 9 system includes a unique 2.5 Aluminum Series CDC remote reservoir shock that features a side-mount eyelet making it shorter in collapsed length, longer at extension, and still fit in the factory mounting location. This shock also features ICON's CDC technology for simple compression adjustability, and a large ten inch remote reservoir was added to aid in heat dissipation and resist shock fade during spirited driving. |
| Description_MKT | This system features billet aluminum upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint. |
| Description_SHO | TACOMA STG 9 BILLET |
| Description_TRA | ICON 2005-15/2016-Up Toyota Tacoma, 0-2.75" Lift, Stage 9 Suspension, Billet UCA, K53009 |
| height | 9.0 |
| length | 55.0 |
| LTL | N |
| Title | 05-15 TACOMA 0-3.5"/ 16-UP 0-2.75" STAGE 9 SUSPENSION SYSTEM W BILLET UCA |
| weight | 278.0 |
| width | 40.0 |
