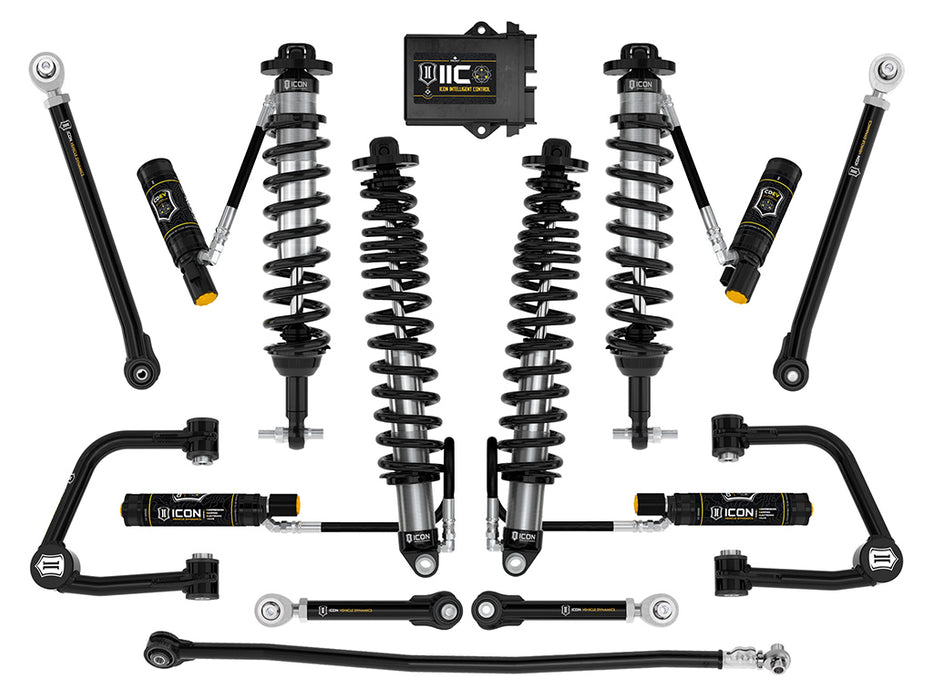

ICON Vehicle Dynamics K40018T 21-UP BRONCO SASQUATCH 2-3" LIFT STAGE 8 SUSPENSION SYSTEM TUBULAR
Description
Specifications
Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
Add-On Part | 611073 - 21-UP BRONCO HOSE ROUTE KIT REAR LINK 1.75" |
Add-On Part | 611074 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 3/8" TALL |
Add-On Part | 611075 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 1/2" TALL |
California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
Description_ASC | APPLICATION NOTE #132: WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITERS PART #611075 IN THE FRONT |
Description_ASC | APPLICATION NOTE #133: WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITERS PART #611074 FOR THE REAR |
Description_ASC | APPLICATION NOTE #134: LIFT HEIGHTS & APP NOTES BASED ON SASQUATCH EQUIPPED VEHICLES |
Description_ASC | APPLICATION NOTE #136: WHEN RUNNING ICON TUBULAR LOWER LINKS USE PART #611073 |
Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE. |
Description_ASC | APPLICATION NOTE #66: 2 DOOR MODELS WILL SIT TALLER THAN 4 DOOR MODELS. |
Description_ASC | OEM Wheels & Tires Fitment: Yes |
Description_ASC | Recommended Aftermarket Tires: 35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming) |
Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset |
Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.00” Backspace / 0mm Offset |
Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.00” Backspace / 0mm Offset |
Description_ASC | TECH NOTE: Bronco Everglades will have front lift height range of 1.5-2.5" over stock |
Description_ASC | TECH NOTE: Fitment testing done with ICON & OE steering components. Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible. |
Description_ASC | TECH NOTE: Not compatible with Bronco Raptor |
Description_DEF | Suspension Lift Kit |
Description_DES | 21-UP BRONCO FRONT 2.5 VS RR CDEV COILOVER KIT |
Description_DES | 21-UP BRONCO HOSE ROUTE KIT REAR LINK 1.75" |
Description_DES | 21-UP BRONCO IIC INSTALL KIT |
Description_DES | 21-UP BRONCO REAR 2.5 VS RR CDEV COILOVER KIT |
Description_DES | 21-UP BRONCO REAR ADJ TRACK BAR KIT |
Description_DES | 21-UP BRONCO SASQUATCH 2-3" LIFT STAGE 8 SUSPENSION SYSTEM TUBULAR |
Description_DES | 21-UP BRONCO TUBULAR REAR LOWER LINK KIT |
Description_DES | 21-UP BRONCO TUBULAR REAR UPPER LINK KIT |
Description_DES | 21-UP BRONCO TUBULAR UCA DJ PRO KIT |
Description_EXT | 2021-UP FORD BRONCO WITH SASQUATCH PACKAGE 2-3" LIFT STAGE 8 SUSPENSION SYSTEM WITH TUBULAR CONTROL ARMS AND LINKS |
Description_FAB | 100% Bolt-on system - no drilling, cutting, or welding necessary for install |
Description_FAB | 6061 Aircraft grade aluminum CNC machined components |
Description_FAB | Adjustable coilovers yield up to 2-3" of front lift height and 1.25-2.25” of rear lift height over stock 4-door Broncos with the Sasquatch package |
Description_FAB | Adjustable rear track bar helps to free up bind during rear suspension travel and articulation and offers on-vehicle rear end alignment |
Description_FAB | Adjustable tubular rear upper links improve fuel tank clearance under max articulation and help further free up suspension bind |
Description_FAB | Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts |
Description_FAB | High strength alloy CNC machined lower bar pins |
Description_FAB | ICON engineered coil springs featuring a unique triple rate rear coil design |
Description_FAB | ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes |
Description_FAB | ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC) |
Description_FAB | Improved suspension performance and ride quality over stock |
Description_FAB | PTFE lined spherical bearings and application specific mounting hardware |
Description_FAB | Tubular rear lower links improve rear end articulation and allow for pinion angle adjustment |
Description_FAB | Tubular UCAs for added strength, durability, and alignment correction for better drivability |
Description_FAB | UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation. |
Description_FAB | Up to 11.5" front / 14” rear wheel travel with 35” tire fitment |
Description_FAB | Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use |
Description_INV | BRONCO SASQUATCH STG 8 SUSP SYS TUBE |
Description_MKT | The ICON Vehicle Dynamics Stage 8 Suspension System for the 2021-UP Ford Bronco features our precision-manufactured, custom valved remote reservoir coilover shocks with CDEV to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 2-3” of front lift and 1.25-2.25” of rear lift over stock 4-door Broncos with the Sasquatch Package. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade, ensuring sustained shock performance at speed through rough terrain. ICON's Top of The Range suspension system features lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. This Stage 8 kit comes with Tubular Upper Control Arms which provide caster correction and feature our patented Delta Joint PRO, which allows for up to 90-degrees freedom of movement. Stage 8 also includes the complete tubular rear link kit including upper links and ICON's Adjustable Rear Track Bar. The rear links links have been designed to free up suspension bind, offer pinion angle adjustment, and optimize clearance from the fuel tank and feature greaseless bushings and massive FK rod ends. The Adjustable Track Bar also features our dual-durometer greaseless bushing and an FK Rod End, as well as on-vehicle adjustability. The rear CDEV coilover shocks are oriented shaft-up with unique triple-rate coil springs to achieve the most rear suspension travel and the best ride quality possible. |
Description_MKT | This suspension system is designed to provide up to 11.5" of front suspension travel and 14" of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37" and larger tires if using the optional up-travel limiters (sold separately). |
Description_SHO | SUSPENSION SYSTEM |
Description_TRA | ICON 2001-Up Ford Bronco Sasquatch, 2-3" Lift, Stage 8 Suspension System, Tubular UCA, K40018T |
height | 7.0 |
length | 27.0 |
LTL | N |
Title | 21-UP BRONCO SASQUATCH 2-3" LIFT STAGE 8 SUSPENSION SYSTEM TUBULAR |
weight | 181.0 |
width | 13.0 |
