ICON Vehicle Dynamics K40003 21-22 BRONCO NON-SASQUATCH 3-4" LIFT STAGE 3 SUSPENSION SYSTEM BILLET
SKU ds_FRDK_K40003
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$5,864.14
-
Original price
$5,864.14
Original price
$5,864.14
$5,864.14
$5,864.14
-
$5,864.14
Current price
$5,864.14
Availability:
4+ in stock
Description
This suspension system is designed to provide up to 11.5" of front suspension travel and 14" of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37" and larger tires if using the optional up-travel limiters (sold separately). The factory crash bars on non-Sasquatch equipped Broncos must be removed to clear 35" and larger tires, but ICON now offers a replacement High Clearance Crash Bar set for those who would like to run larger tires and retain the functionality of the crash bars.
Specifications
| Description_ASC | APPLICATION NOTE #132: WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITERS PART #611075 IN THE FRONT |
| Description_ASC | APPLICATION NOTE #133: WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITERS PART #611074 FOR THE REAR |
| Description_ASC | APPLICATION NOTE #135: LIFT HEIGHTS & APP NOTES BASED NON-SASQUATCH EQUIPPED VEHICLES |
| Description_ASC | APPLICATION NOTE #138: RECOMMEND HIGH CLEARANCE CRASH BARS PART #42000 ON NON-SASQUATCH EQUIPPED VEHICLES WHEN RUNNING 35" TIRES |
| Description_ASC | APPLICATION NOTE #139: WHEN RUNNING 37" TIRES CRASH BAR REMOVAL MAY BE REQUIRED BUT IS NOT RECOMMENDED |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE. |
| Description_ASC | APPLICATION NOTE #66: 2 DOOR MODELS WILL SIT TALLER THAN 4 DOOR MODELS. |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Description_ASC | TECH NOTE: Fitment testing done with ICON & OE steering components. Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible. |
| Description_ASC | TECH NOTE: Not compatible with Bronco Raptor |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 21-22 BRONCO NON-SASQUATCH 3-4" LIFT STAGE 3 SUSPENSION SYSTEM BILLET |

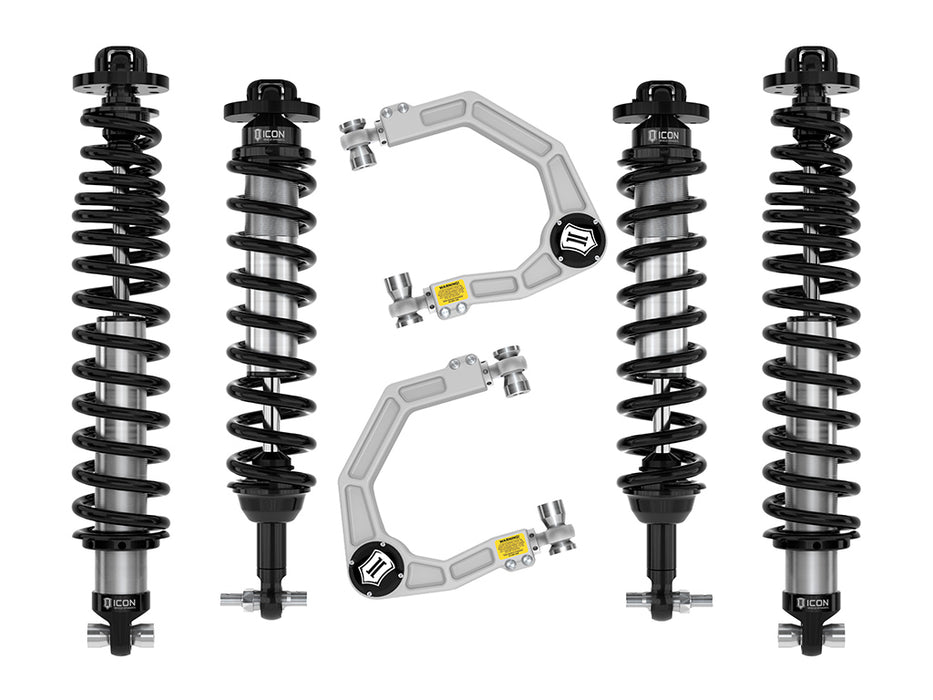

| Description_DES | 21-UP BRONCO BILLET UCA DJ PRO KIT |
| Description_DES | 21-UP BRONCO FRONT 2.5 VS IR COILOVER KIT |
| Description_DES | 21-UP BRONCO REAR 2.5 VS IR COILOVER KIT |
| Description_EXT | 2021-2022 FORD BRONCO WITHOUT SASQUATCH PACKAGE 3-4" LIFT STAGE 3 SUSPENSION SYSTEM WITH BILLET UPPER CONTROL ARMS |
| Description_FAB | 100% Bolt-on system - no drilling, cutting, or welding necessary for install |
| Description_FAB | 6061 Aircraft grade aluminum CNC machined components |
| Description_FAB | Adjustable coilovers yield up to 3-4" of front lift height and 2-3” of rear lift height over stock 4-door non-Sasquatch Broncos |
| Description_FAB | Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability |
| Description_FAB | Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts |
| Description_FAB | High strength alloy CNC machined lower bar pins |
| Description_FAB | ICON engineered coil springs featuring a unique triple rate rear coil design |
| Description_FAB | Improved suspension performance and ride quality over stock |
| Description_FAB | PTFE lined spherical bearings and application specific mounting hardware |
| Description_FAB | UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation. |
| Description_FAB | Up to 11.5" front / 14” rear wheel travel with 35” tire fitment |
| Description_FAB | Vehicle specific tuned internal reservoir front and rear shocks for superior damping and vehicle control |
| Description_INV | BRONCO NON-SQUATCH STG 3 SUSP SYS BILLET |
| Description_MKT | The ICON Vehicle Dynamics Stage 3 Suspension System for the 2021-2022 Ford Bronco features our precision-manufactured, custom valved internal reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 3-4” of front lift and 2-3” of rear lift over stock 4-door Broncos without the Sasquatch Package. |
| Description_MKT | This suspension system is designed to provide up to 11.5" of front suspension travel and 14" of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37" and larger tires if using the optional up-travel limiters (sold separately). The factory crash bars on non-Sasquatch equipped Broncos must be removed to clear 35" and larger tires, but ICON now offers a replacement High Clearance Crash Bar set for those who would like to run larger tires and retain the functionality of the crash bars. |
| Description_MKT | To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 3 kit comes with Billet Aluminum Upper Control Arms which provide on-vehicle caster and camber adjustability and feature our patented Delta Joint PRO, which allows for up to 90-desgrees freedom of movement. The rear shocks are oriented shaft-up with unique triple-rate coil springs to achieve the most rear suspension travel and the best ride quality possible. |
| Description_SHO | SUSPENSION SYSTEM |
| Description_TRA | ICON 21-22 Bronco Non-Sasquatch, 3-4" Lift Stage 3 Suspension System, Billet UCA, K40003 |
| height | 7.0 |
| length | 27.0 |
| LTL | N |
| weight | 103.0 |
| width | 13.0 |
