ICON Vehicle Dynamics K22106 2020-UP JEEP GLADIATOR JT 2.5" STAGE 6 SUSPENSION SYSTEM
SKU ds_FRDK_K22106
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$6,074.13
-
Original price
$6,074.13
Original price
$6,074.13
$6,074.13
$6,074.13
-
$6,074.13
Current price
$6,074.13
Availability:
Out of stock
Description

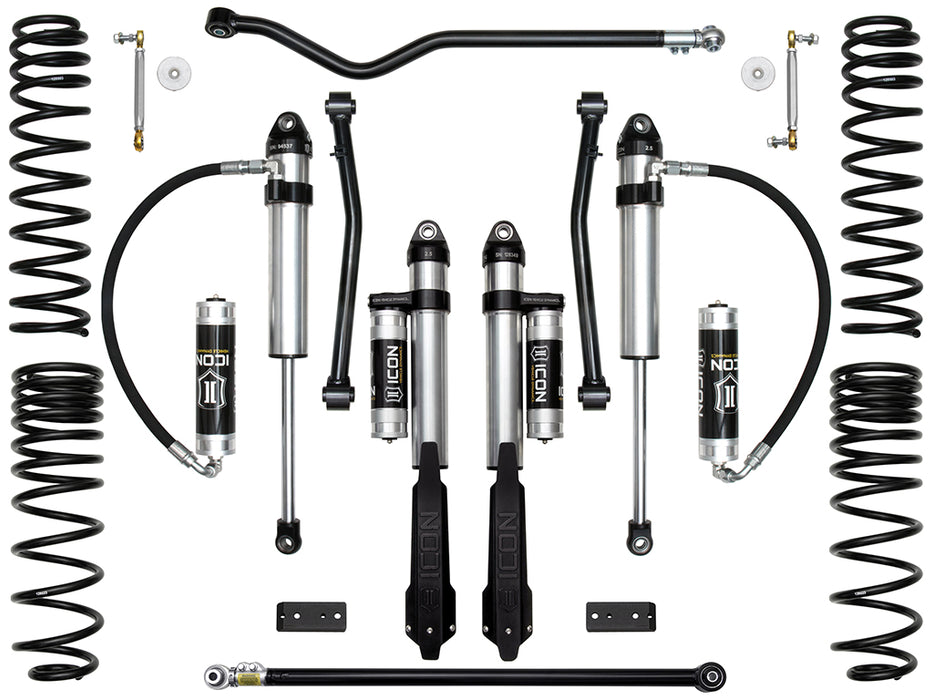

The Stage 6 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for drastically improving off-road performance and overall ride quality for the application that will see occasional heavy off-road use. This complete suspension system features ICON’s proven 2.5 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, a tubular steel fixed front lower link kit, billet front sway bar links, a triple-rate rear coil spring kit, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).
Specifications
| Description_ASC | APPLICATION NOTE #128: GLADIATOR MOJAVE TRIM REQUIRES 14MM MISALIGNMENT SPACER KIT PART # 611070 |
| Description_ASC | APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.5” Backspace / -6mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 4.5” Backspace / -12mm Offset |
| Description_ASC | Ships In Multiple Boxes |
| Description_ASC | TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle. |
| Description_ASC | TECH NOTE: Only compatible with models equipped with 3.6L V6 Pentastar engine. |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 18-UP JL/20-UP JT 2.5" FRONT DUAL RATE SPRING KIT |
| Description_DES | 18-UP JL/20-UP JT FRONT ADJ TRACK BAR KIT |
| Description_DES | 18-UP JL/20-UP JT FRONT FIXED LOWER LINK KIT |
| Description_DES | 18-UP JL/20-UP JT FRONT SWAY BAR LINK KIT |
| Description_DES | 20-UP GLADIATOR 2.5" STAGE 6 SUSPENSION SYSTEM |
| Description_DES | 20-UP JT 1.5" REAR 2.5 VS PB PAIR |
| Description_DES | 20-UP JT 1.5" REAR MULTI RATE SPRING KIT |
| Description_DES | 20-UP JT REAR ADJ TRACK BAR KIT |
| Description_DES | 20-UP JT REAR SWAY BAR RELOCATION KIT |
| Description_DES | 20-UP JT/18-UP JL 2.5" FRONT 2.5 VS RR PAIR |
| Description_EXT | 2020-UP JEEP GLADIATOR JT 2.5" STAGE 6 SUSPENSION SYSTEM |
| Description_FAB | 100% bolt-on system makes for an easy install |
| Description_FAB | 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish |
| Description_FAB | 2.5" lift height |
| Description_FAB | 33% front, 23% rear increase in wheel travel |
| Description_FAB | Adjustable, billet aluminum front sway bar links |
| Description_FAB | Dual rate front coil springs with lifetime guarantee against sagging/breakage |
| Description_FAB | Fits 35" tires (37" with extended bump stop spacer kit) |
| Description_FAB | Front and rear track bars ensure proper alignment and improved articulation |
| Description_FAB | Front lower links included for caster angle correction and improved front end articulation |
| Description_FAB | Improves on and off-road ride quality over stock |
| Description_FAB | Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates |
| Description_FAB | “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability |
| Description_INV | 20-UP GLADIATOR 2.5" STAGE 6 SUSP SYS |
| Description_MKT | The Stage 6 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for drastically improving off-road performance and overall ride quality for the application that will see occasional heavy off-road use. This complete suspension system features ICON’s proven 2.5 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, a tubular steel fixed front lower link kit, billet front sway bar links, a triple-rate rear coil spring kit, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071). |
| Description_SHO | SUSPENSION SYSTEM |
| Description_TRA | ICON 2020-Up Jeep Gladiator, 2.5" Lift, Stage 6 Suspension System, K22106 |
| height | 7.0 |
| length | 21.0 |
| LTL | N |
| weight | 148.0 |
| width | 13.0 |
