ICON Vehicle Dynamics K22017 2018-UP JEEP JL 2.5" LIFT STAGE 7 SUSPENSION SYSTEM
SKU ds_FRDK_K22017
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$7,098.92
-
Original price
$7,098.92
Original price
$7,098.92
$7,098.92
$7,098.92
-
$7,098.92
Current price
$7,098.92
Availability:
Out of stock
Description

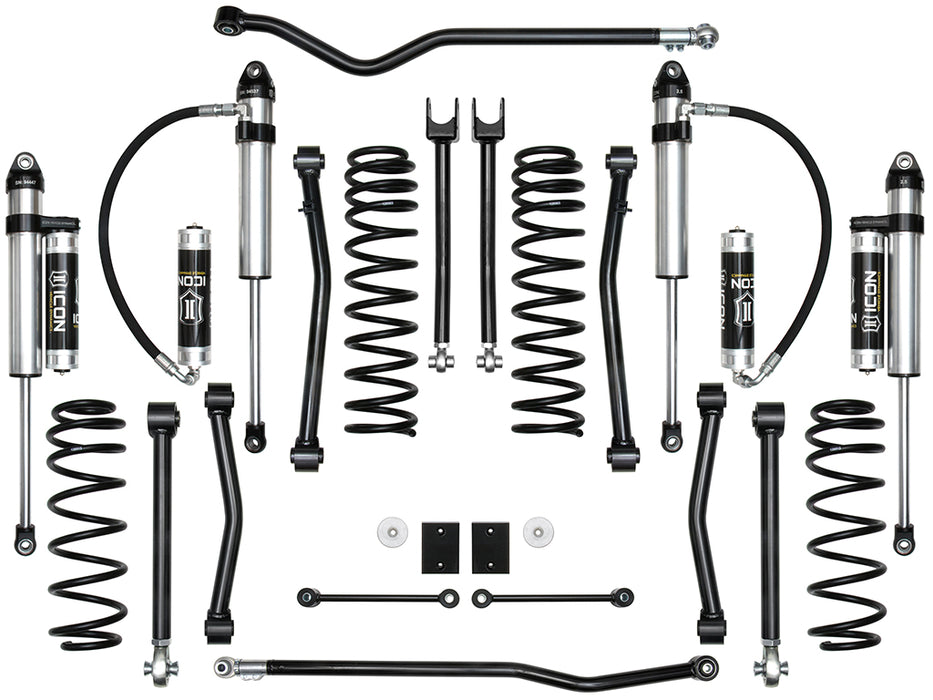

The ICON Vehicle Dynamics Stage 7 2.5" Suspension System for the 2018-UP Jeep Wrangler JL is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. This Stage 7 system includes 2.5" lift dual rate coil springs, upgraded 2.5 Aluminum Series remote reservoir shocks with vehicle specific valving, tubular steel adjustable front upper links, fixed front lower links, fixed rear upper links, adjustable rear lower links, adjustable front and rear track bars, bump stop spacers, sway bar links, and all necessary hardware to complete the installation. With this combination of components, ICON was able to increase wheel travel numbers by over 30% (3" front, 2" rear), redefining the potential of the 2018-UP JL. The Stage 7 system allows for fitment of 35" tires when used with ICON's recommended wheel specifications. For users looking to install 37" tires, an optional bump stop spacer kit (PN: 22029) is available.
Specifications
| Description_ASC | APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE |
| Description_ASC | APPLICATION NOTE #66: 2 DOOR MODELS SIT SLIGHTLY HIGHER THAN 4 DOOR MODELS BUT REMAIN LEVEL WHEN INSTALLED |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22029) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.5” Backspace / -6mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 4.5” Backspace / -12mm Offset |
| Description_ASC | Ships In Multiple Boxes |
| Description_ASC | TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JL build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle. |
| Description_ASC | TECH NOTE: Only compatible with models equipped with 3.6L V6 Pentastar engine. Not compatible with 3.6L V6 eTorque engine. |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 18-UP JEEP JL 2.5" STAGE 7 SUSPENSION SYSTEM |
| Description_DES | 18-UP JL 2.5" REAR 2.5 VS PB PAIR |
| Description_DES | 18-UP JL 2.5" REAR DUAL RATE SPRING KIT |
| Description_DES | 18-UP JL FRONT ADJ UPPER LINK KIT |
| Description_DES | 18-UP JL REAR ADJ LOWER LINK KIT |
| Description_DES | 18-UP JL REAR ADJ TRACK BAR KIT |
| Description_DES | 18-UP JL REAR FIXED UPPER LINK KIT |
| Description_DES | 18-UP JL/20-UP JT 2.5" FRONT DUAL RATE SPRING KIT |
| Description_DES | 18-UP JL/20-UP JT FRONT ADJ TRACK BAR KIT |
| Description_DES | 18-UP JL/20-UP JT FRONT FIXED LOWER LINK KIT |
| Description_DES | 20-UP JT/18-UP JL 2.5" FRONT 2.5 VS RR PAIR |
| Description_EXT | 2018-UP JEEP JL 2.5" LIFT STAGE 7 SUSPENSION SYSTEM |
| Description_FAB | 100% bolt-on system makes for an easy install |
| Description_FAB | 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish |
| Description_FAB | 2.5" lift height |
| Description_FAB | 3" front, 2" rear increase in wheel travel |
| Description_FAB | Dual rate coil springs with lifetime guarantee against sagging/breakage |
| Description_FAB | Fits 35" tires (37" with optional bump stop spacer kit PN: 22029) |
| Description_FAB | Improves on and off-road ride quality over stock |
| Description_FAB | Tubular steel link arms with dual durometer bushings for noise free performance, maximum articulation, and minimal bind |
| Description_FAB | “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability |
| Description_INV | 2018-UP JEEP JL 2.5" STAGE 7 SUSP SYS |
| Description_MKT | The ICON Vehicle Dynamics Stage 7 2.5" Suspension System for the 2018-UP Jeep Wrangler JL is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. This Stage 7 system includes 2.5" lift dual rate coil springs, upgraded 2.5 Aluminum Series remote reservoir shocks with vehicle specific valving, tubular steel adjustable front upper links, fixed front lower links, fixed rear upper links, adjustable rear lower links, adjustable front and rear track bars, bump stop spacers, sway bar links, and all necessary hardware to complete the installation. With this combination of components, ICON was able to increase wheel travel numbers by over 30% (3" front, 2" rear), redefining the potential of the 2018-UP JL. The Stage 7 system allows for fitment of 35" tires when used with ICON's recommended wheel specifications. For users looking to install 37" tires, an optional bump stop spacer kit (PN: 22029) is available. |
| Description_SHO | JEEP JL 2.5" STAGE 7 |
| Description_TRA | ICON 2018-Up Jeep JL Wrangler, 2.5" Lift, Stage 7 Suspension System, K22017 |
| height | 8.0 |
| length | 22.0 |
| LTL | N |
| weight | 197.0 |
| width | 13.0 |
