ICON Vehicle Dynamics K214554T 2009-2012 RAM 2500/3500 4.5" LIFT STAGE 4 SUSPENSION SYSTEM
SKU ds_FRDK_K214554T
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$9,022.26
-
Original price
$9,022.26
Original price
$9,022.26
$9,022.26
$9,022.26
-
$9,022.26
Current price
$9,022.26
Availability:
Out of stock
Description

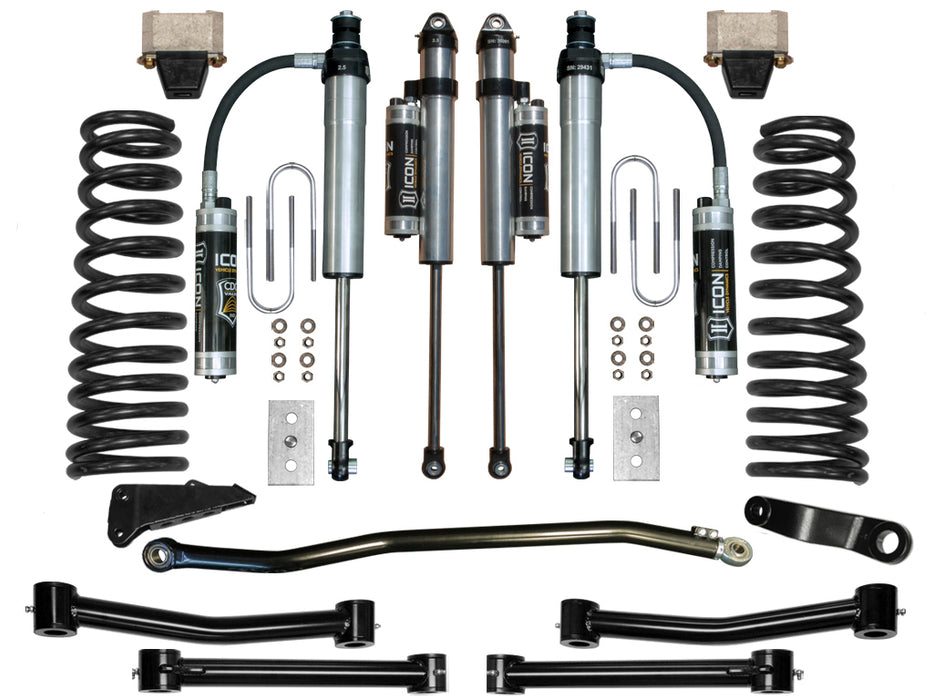

2009-2012 Ram 2500/3500 4.5" Stage 5 Suspension System utilizes the same technology as the 2.5" systems while adding lift height, ground clearance, and user adjustability. Additional engineered front-end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. The Stage 5 System is comprised of dual rate coil springs, tubular steel upper & lower link arms, polyurethane bump stops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, 2.5 Aluminum Series shocks w/ CDCV, and bearing style adjustable track bar. ICON 2.5 Aluminum Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation, and give you the ability to tune the compression damping with the turn of an external knob. These shocks include FK bearings, one-piece impact extruded aluminum cylinders, and 7/8" shafts for strength. The adjustable track bar with bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. ICON steel upper & lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. This ultimate performance system with billet link arms offers extraordinary diversity across any terrain, all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.
Specifications
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Description_ASC | APPLICATION NOTE #101: CALL ICON FOR 2013 RAM 2500/3500 VEHICLES |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC | APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.25” Backspace / 13mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.50" Backspace / 12mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.50" Backspace / 12mm Offset |
| Description_ASC | Ships in Multiple Boxes |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 03-12 RAM HD 2-3" REAR 2.5 VS PB CDCV PAIR |
| Description_DES | 03-12 RAM HD 4.5" BOX KIT |
| Description_DES | 03-12 RAM HD 4.5" FRONT 2.5 VS RR CDCV PAIR |
| Description_DES | 03-12 RAM HD 4WD 2.5" BLOCK KIT |
| Description_DES | 03-12 RAM HD 4WD 4.5" DUAL RATE SPRING KIT |
| Description_DES | 03-12 RAM HD ADJ TRACK BAR KIT |
| Description_DES | 03-12 RAM HD FIXED TUBULAR LINK KIT |
| Description_DES | 09-12 RAM 2500/3500 4.5" STAGE 5 SUSPENSION SYSTEM |
| Description_DES | 09-12 RAM HD DROP PITMAN ARM |
| Description_DES | 99-10 FSD DUALLY/03-12 RAM HD 15" U-BOLT KIT |
| Description_EXT | 2009-2012 RAM 2500/3500 4.5" LIFT STAGE 4 SUSPENSION SYSTEM |
| Description_FAB | 2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish |
| Description_FAB | Adjustable track bar with PTFE lined FK bearings |
| Description_FAB | Correctly positioned steering and track bar components |
| Description_FAB | Heavy-duty steel upper and lower link bars |
| Description_FAB | ICON engineered dual rate coil springs with match tuned 2.5" V.S. Series shocks with CDCV |
| Description_FAB | Increased wheel travel and ride quality over stock with no change in towing capacity |
| Description_FAB | Less body roll than stock |
| Description_FAB | Level stance front to rear |
| Description_FAB | No drive shaft modifications needed |
| Description_INV | 09-12 RAM HD 4.5" STAGE 5 SUSP SYSTEM |
| Description_MKT | 2009-2012 Ram 2500/3500 4.5" Stage 5 Suspension System utilizes the same technology as the 2.5" systems while adding lift height, ground clearance, and user adjustability. Additional engineered front-end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. The Stage 5 System is comprised of dual rate coil springs, tubular steel upper & lower link arms, polyurethane bump stops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, 2.5 Aluminum Series shocks w/ CDCV, and bearing style adjustable track bar. ICON 2.5 Aluminum Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation, and give you the ability to tune the compression damping with the turn of an external knob. These shocks include FK bearings, one-piece impact extruded aluminum cylinders, and 7/8" shafts for strength. The adjustable track bar with bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. ICON steel upper & lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. This ultimate performance system with billet link arms offers extraordinary diversity across any terrain, all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market. |
| Description_SHO | 4.5" SUSP SYS STG 5 |
| Description_TRA | ICON 2009-12 Ram 2500/3500, 4.5" Lift, Stage 5 Suspension System, K214554T |
| height | 10.0 |
| length | 26.0 |
| LTL | N |
| Title | 09-12 RAM 2500/3500 4.5" STAGE 5 SUSPENSION SYSTEM |
| weight | 277.0 |
| width | 19.0 |
