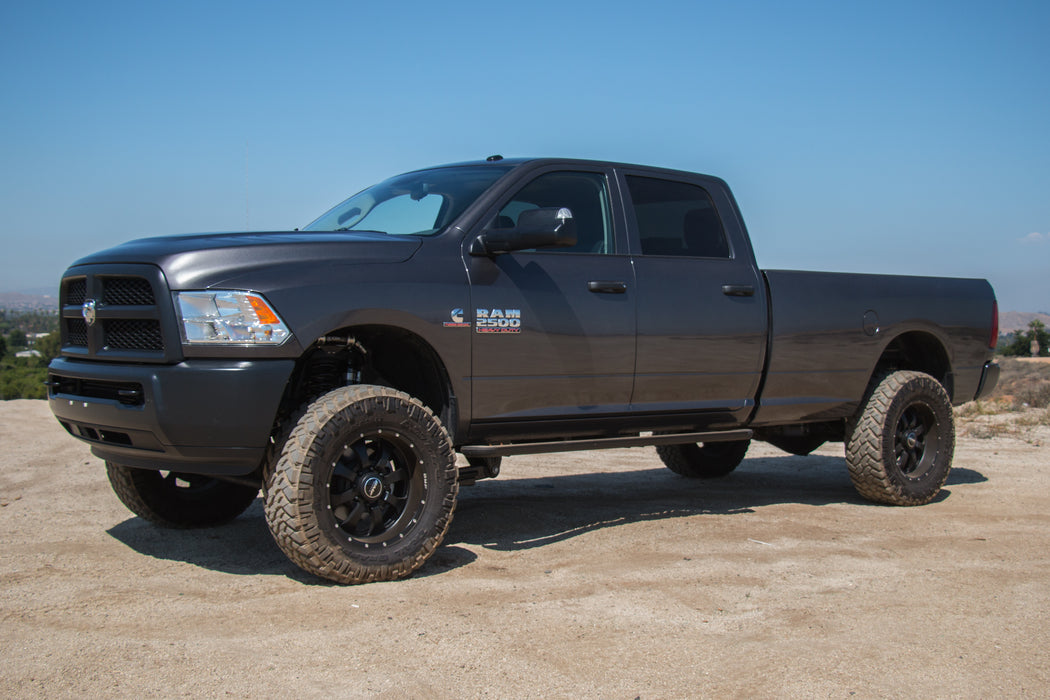

ICON Vehicle Dynamics K214523 2014-2018 DODGE RAM 2500 4WD 4.5" LIFT STAGE 3 SUSPENSION SYSTEM
SKU ds_FRDK_K214523
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$8,662.41
-
Original price
$8,662.41
Original price
$8,662.41
$8,662.41
$8,662.41
-
$8,662.41
Current price
$8,662.41
Availability:
Out of stock
Description

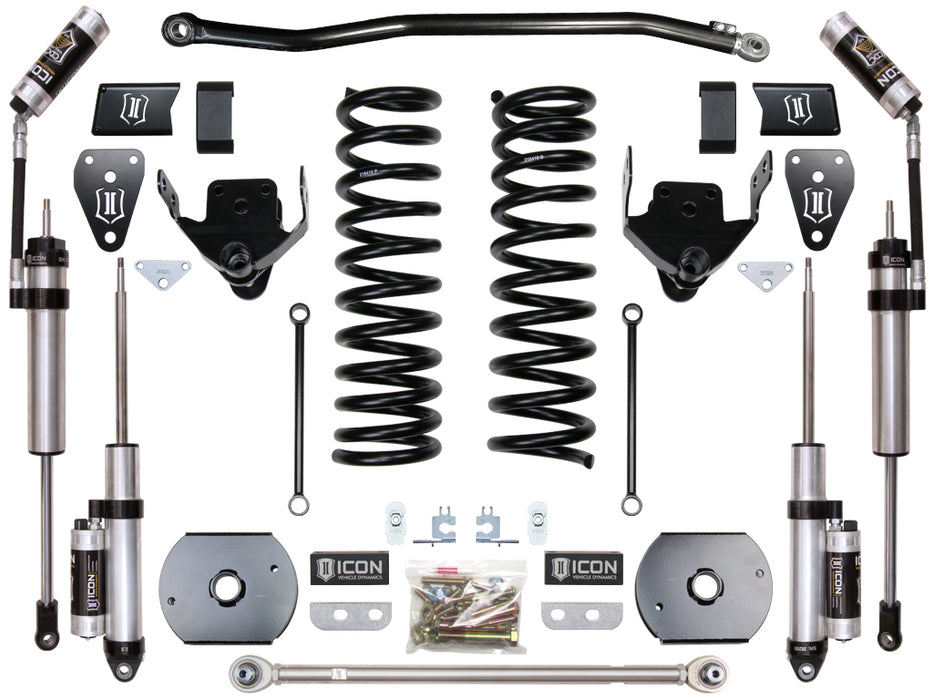

ICON Vehicle Dynamics suspension systems for the 2014-2018 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 3 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, while CDC (Compression Damping Control) Valve technology allows the user to adjust compression characteristics of the shocks with the turn of a knob. These features make this Stage 3 system a huge upgrade for 2014-2018 Ram 2500 4WD trucks that are not only used for daily driving and towing, but spirited off-road driving as well.
Specifications
| Description_ASC | APPLICATION NOTE #103: VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFTS REQUIRE CARRIER SHIM KIT 214211 |
| Description_ASC | APPLICATION NOTE #105: NOT FOR VEHICLES WITH REAR FACTORY AIR RIDE |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC | APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY |
| Description_ASC | APPLICATION NOTE #90: MAY NOT BE COMPATIBLE WITH OTHER MANUFACTURERS AFTERMARKET TRACKBARS |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.25” Backspace / 13mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.50" Backspace / 12mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.50" Backspace / 12mm Offset |
| Description_ASC | Ships in Multiple Boxes |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 14-18 DODGE RAM 2500 4WD 4.5" STAGE 3 SUSPENSION SYSTEM |
| Description_DES | 14-UP RAM 2500 2" STANDARD REAR 2.5 VS PB CDCV PAIR |
| Description_DES | 14-UP RAM 2500 4.5" BOX KIT |
| Description_DES | 14-UP RAM 2500 4.5" FRONT 2.5 VS RR CDCV PAIR |
| Description_DES | 14-UP RAM 2500 4.5" FRONT DUAL RATE SPRING KIT |
| Description_DES | 14-UP RAM 2500 FRONT ADJUSTABLE TRACK BAR KIT |
| Description_DES | 14-UP RAM 2500 REAR ADJUSTABLE TRACK BAR KIT |
| Description_EXT | 2014-2018 DODGE RAM 2500 4WD 4.5" LIFT STAGE 3 SUSPENSION SYSTEM |
| Description_FAB | 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish |
| Description_FAB | Decreased body roll |
| Description_FAB | ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain |
| Description_FAB | Increased wheel travel and ride quality over stock with no change in towing capacity |
| Description_FAB | Level stance from front to rear of vehicle |
| Description_FAB | Vehicle specific tuned front and rear 2.5 Series shocks provide superior damping and ride quality |
| Description_INV | 14-18 RAM 2500 4WD 4.5 STAGE 3 SYSTEM |
| Description_MKT | ICON Vehicle Dynamics suspension systems for the 2014-2018 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 3 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, while CDC (Compression Damping Control) Valve technology allows the user to adjust compression characteristics of the shocks with the turn of a knob. These features make this Stage 3 system a huge upgrade for 2014-2018 Ram 2500 4WD trucks that are not only used for daily driving and towing, but spirited off-road driving as well. |
| Description_SHO | SUSPENSION SYSTEM |
| Description_TRA | ICON 2014-18 Ram 2500 4WD, 4.5" Lift, Stage 3 Suspension System, K214523 |
| height | 10.0 |
| length | 26.0 |
| LTL | N |
| weight | 222.0 |
| width | 19.0 |
