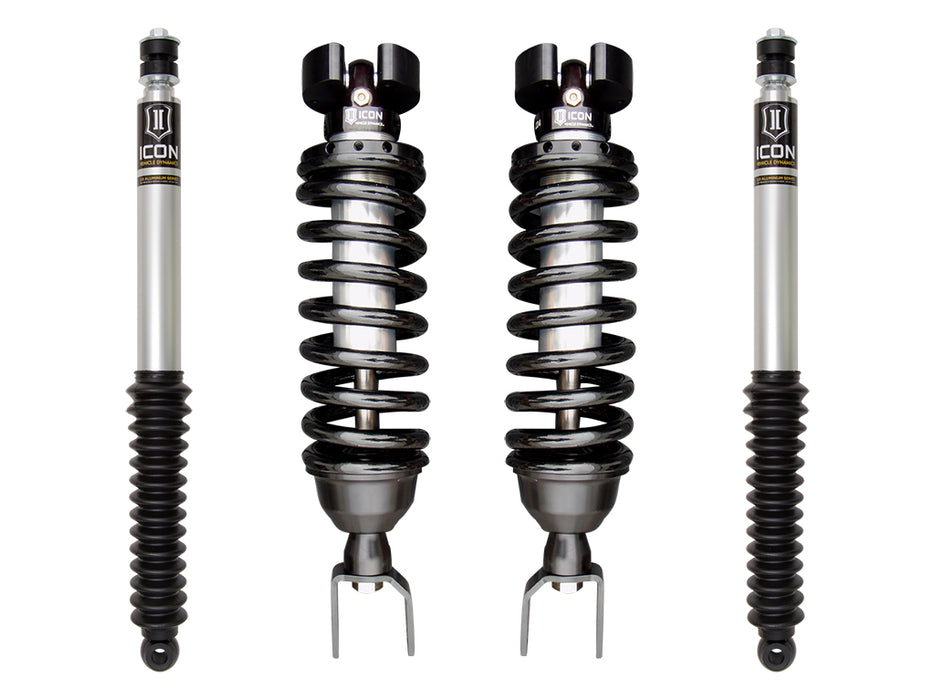

ICON Vehicle Dynamics K213101 2019-UP RAM 1500 4WD 0-1.5" LIFT STAGE 1 SUSPENSION SYSTEM
SKU ds_FRDK_K213101
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$2,434.54
-
Original price
$2,434.54
Original price
$2,434.54
$2,434.54
$2,434.54
-
$2,434.54
Current price
$2,434.54
Availability:
Only 2 left!
Description
ICON Vehicle Dynamics Dodge Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-1.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-UP Ram 1500 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Specifications
| Description_ASC | APPLICATION NOTE #100: SPRINGS NOT RATED FOR ECO DIESEL EQUIPPED TRUCKS |
| Description_ASC | APPLICATION NOTE #105: NOT FOR VEHICLES WITH REAR FACTORY AIR RIDE |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC | APPLICATION NOTE #99: AIR BAGS RECOMMENDED WITH PERFORMANCE REAR SPRINGS IF VEHICLE USED FOR TOWING |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.00" Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.00" Backspace / 0mm Offset |
| Description_ASC | Ships in Multiple Boxes |
| Description_ASC | TECH NOTE: 2019-UP Ram Rebel lift height range 0-.75" over stock |
| Description_ASC | TECH NOTE: Not compatible with 2019-2022 Ram 1500 Classic models |
| Description_ASC | TECH NOTE: Not compatible with 2021-UP Ram 1500 TRX trim |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 19-UP RAM 1500 2/4WD 0-1.5" STAGE 1 SUSPENSION SYSTEM |
| Description_DES | 19-UP RAM 1500 2/4WD 09-18 RAM 1500 4WD 2.5 VS IR COILOVER KIT |
| Description_DES | 19-UP RAM 1500 REAR 2.0 VS IR |
| Description_EXT | 2019-UP RAM 1500 4WD 0-1.5" LIFT STAGE 1 SUSPENSION SYSTEM |
| Description_FAB | 100% Bolt-on system - no drilling, cutting, or welding necessary for install |
| Description_FAB | 6061 Aircraft grade aluminum CNC machined components |
| Description_FAB | Adjustable coilovers from 0-1.5" of lift height allow for fitment of larger and more aggressive tires |
| Description_FAB | Fits 2WD & 4WD applications |
| Description_FAB | ICON shocks feature vehicle specific tune for superior performance and ride quality |
| Description_FAB | Shocks are fully rebuildable and revalvable |
| Description_INV | 19-UP RAM 1500 4WD 0-1.5" STAGE 1 |
| Description_MKT | ICON Vehicle Dynamics Dodge Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-1.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-UP Ram 1500 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. |
| Description_MKT | With several changes being made to the 2019 RAM 1500 platform including an all-new frame, increased chassis rigidity, and a lighter overall weight, ICON’s R&D department went above and beyond to make sure the new RAM truck was properly analyzed. With these changes made by the factory, the development of new ICON rear shocks (and revised front coilover tuning) was necessary to optimize fitment and performance on this new platform. |
| Description_SHO | RAM SUSP SYS STG 1 |
| Description_TRA | ICON 2019-Up Ram 1500, 0-1.5" Lift, Stage 3 Suspension System, K213101 |
| height | 6.0 |
| length | 27.0 |
| LTL | N |
| weight | 50.0 |
| width | 12.0 |
