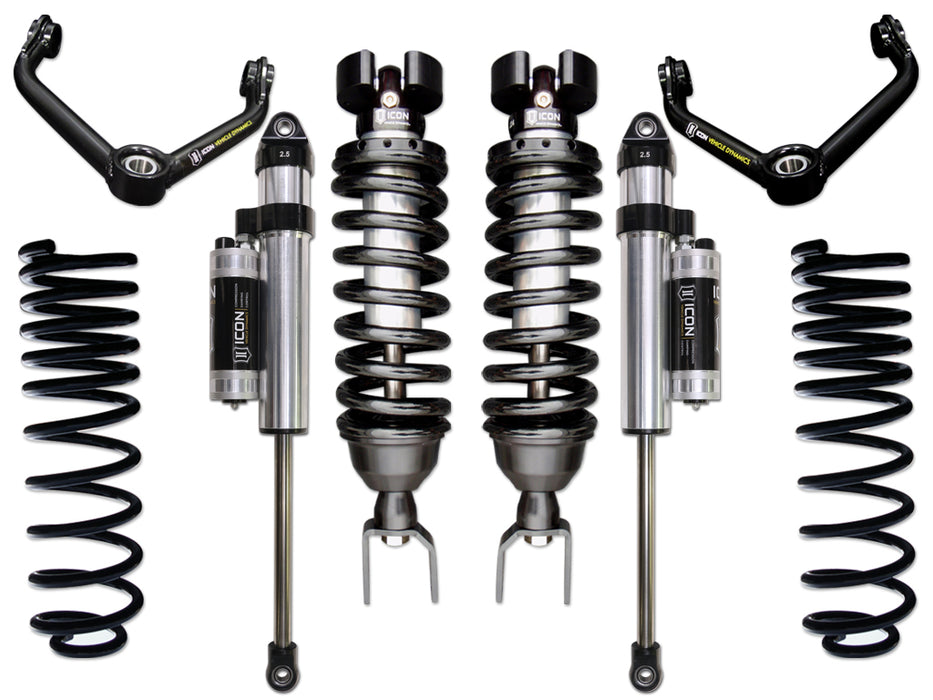

ICON Vehicle Dynamics K213005 2009-2018 RAM 1500 4WD .75-2.5" LIFT STAGE 5 SUSPENSION SYSTEM
SKU ds_FRDK_K213005
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$5,918.28
-
Original price
$5,918.28
Original price
$5,918.28
$5,918.28
$5,918.28
-
$5,918.28
Current price
$5,918.28
Availability:
Out of stock
Description
ICON Vehicle Dynamics Dodge Ram 1500 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from .75-2.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series rear shocks with CDC Valve utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2009-2018 Dodge Ram 1500 4WD Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Specifications
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 191011 - TUBULAR UCA BILLET CAP SET |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR) |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC | APPLICATION NOTE #99: AIR BAGS RECOMMENDED WITH PERFORMANCE REAR SPRINGS IF VEHICLE USED FOR TOWING |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” BS / 0mm Offset |
| Description_ASC | Ships in Multiple Boxes |
| Description_ASC | TECH NOTE: Compatible with 2019-2022 Ram 1500 Classic models. Lift height range is .75-2.5" over stock |
| Description_ASC | TECH NOTE: Not compatible with models equipped with OE air suspension |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 09-18 RAM 1500 0-3" REAR 2.5 VS PB CDCV PAIR |
| Description_DES | 09-18 RAM 1500 4WD .75-2.5" STAGE 5 SUSPENSION SYSTEM |
| Description_DES | 09-UP RAM 1500 REAR 1.5" DUAL RATE SPRING KIT |
| Description_DES | 09-UP RAM 1500 TUBULAR UCA DJ KIT |
| Description_DES | 19-UP RAM 1500 2/4WD 09-18 RAM 1500 4WD 2.5 VS IR COILOVER KIT |
| Description_EXT | 2009-2018 RAM 1500 4WD .75-2.5" LIFT STAGE 5 SUSPENSION SYSTEM |
| Description_FAB | 100% Bolt-on system - no drilling, cutting, or welding necessary for install |
| Description_FAB | 2.5 Aluminum Series rear shocks with CDCV |
| Description_FAB | 6061 Aircraft grade aluminum CNC machined components |
| Description_FAB | Adjustable coilovers from .75-2.5" of lift height |
| Description_FAB | Corrosion resistant CAD plated coilover shock body with 7/8" shaft |
| Description_FAB | FK rod end bearings for extended longevity and minimal deflection |
| Description_FAB | ICON CDC Valve allows quick and easy end-user adjustability |
| Description_FAB | Increased wheel travel and ride quality over stock with no change in towing capacity |
| Description_FAB | Vehicle specific tuned front and rear shocks for superior shock damping and control |
| Description_INV | 09-18 RAM 1500 4WD .75-2.5" STAGE 5 |
| Description_MKT | ICON Vehicle Dynamics Dodge Ram 1500 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from .75-2.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series rear shocks with CDC Valve utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2009-2018 Dodge Ram 1500 4WD Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. |
| Description_SHO | RAM SUSP SYS STG 5 |
| Description_TRA | ICON 2009-18 Ram 1500 4WD, .75-2.5" Lift, Stage 5 Suspension System, K213005 |
| height | 6.0 |
| length | 27.0 |
| LTL | N |
| Title | 09-18 RAM 1500 4WD .75-2.5" STAGE 5 SUSPENSION SYSTEM |
| weight | 126.0 |
| width | 12.0 |
