ICON Vehicle Dynamics K212502 2003-2012 RAM 2500/3500 4WD 2.5" LIFT STAGE 2 SUSPENSION SYSTEM
SKU ds_FRDK_K212502
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$3,926.25
-
Original price
$3,926.25
Original price
$3,926.25
$3,926.25
$3,926.25
-
$3,926.25
Current price
$3,926.25
Availability:
Out of stock
Description

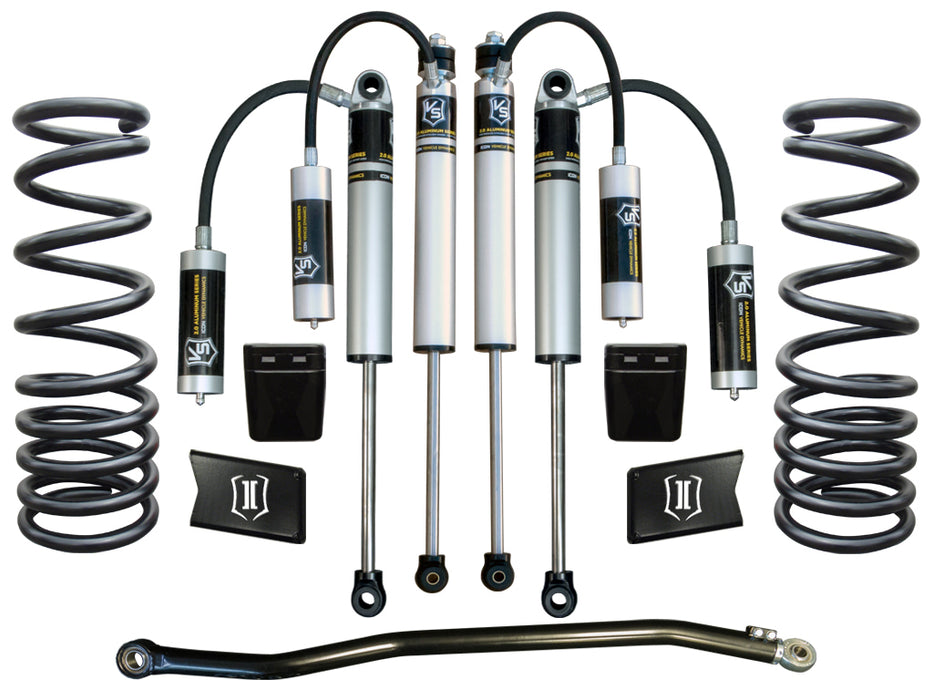

2003-2012 Ram 2500/3500 2.5 Inch Stage 2 Suspension System is our performance system for the novice off road enthusiast. This system not only levels out the stance, it increases ride quality and performance both on and off road. The Stage 2 System is comprised of dual rate coil springs, polyurethane bumpstops, sway bar, 2.0 Aluminum Series remote reservoir shocks, and our bearing style adjustable track bar. Remote reservoir shocks will extend performance of the kit by increasing the duration of consistent damping regardless of situation. The adjustable track bar with FK bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. This performance system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON has spent endless hours testing and tuning our suspension components and shocks together, so you can rest assured you have the best suspension solution on the market.
Specifications
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC | APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.25” BS / 13mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.50" BS / 12mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.50" BS / 12mm Offset |
| Description_ASC | Ships in Multiple Boxes |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 03-12 RAM 2500/3500 4WD 2.5" STAGE 2 SUSPENSION SYSTEM |
| Description_DES | 03-12 RAM HD 0-3" REAR 2.0 VS RR |
| Description_DES | 03-12 RAM HD 2.5" FRONT 2.0 VS RR |
| Description_DES | 03-12 RAM HD 4WD 2.5" DUAL RATE SPRING KIT |
| Description_DES | 03-12 RAM HD ADJ TRACK BAR KIT |
| Description_EXT | 2003-2012 RAM 2500/3500 4WD 2.5" LIFT STAGE 2 SUSPENSION SYSTEM |
| Description_FAB | Adjustable track bar with PTFE lined FK bearings |
| Description_FAB | ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series remote reservoir shocks |
| Description_FAB | Increased wheel travel and ride quality over stock with no change in towing capacity |
| Description_FAB | Less body roll than stock |
| Description_FAB | Level stance front to rear |
| Description_FAB | No drive shaft modifications needed |
| Description_INV | 03-12 RAM HD 4WD 2.5" STAGE 2 SUSP SYS |
| Description_MKT | 2003-2012 Ram 2500/3500 2.5 Inch Stage 2 Suspension System is our performance system for the novice off road enthusiast. This system not only levels out the stance, it increases ride quality and performance both on and off road. The Stage 2 System is comprised of dual rate coil springs, polyurethane bumpstops, sway bar, 2.0 Aluminum Series remote reservoir shocks, and our bearing style adjustable track bar. Remote reservoir shocks will extend performance of the kit by increasing the duration of consistent damping regardless of situation. The adjustable track bar with FK bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. This performance system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON has spent endless hours testing and tuning our suspension components and shocks together, so you can rest assured you have the best suspension solution on the market. |
| Description_SHO | 2.5" SUSP SYS STG 2 |
| Description_TRA | ICON 2003-12 Ram 2500/3500 4WD, 2.5" Lift, Stage 2 Suspension System, K212502 |
| height | 10.0 |
| length | 26.0 |
| LTL | N |
| Title | 03-12 RAM 2500/3500 4WD 2.5" STAGE 2 SUSPENSION SYSTEM |
| weight | 129.0 |
| width | 19.0 |
