ICON Vehicle Dynamics K212501 2003-2012 RAM 2500/3500 4WD 2.5" LIFT STAGE 1 SUSPENSION SYSTEM
SKU ds_FRDK_K212501
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$2,298.62
-
Original price
$2,298.62
Original price
$2,298.62
$2,298.62
$2,298.62
-
$2,298.62
Current price
$2,298.62
Availability:
Only 2 left!
Description

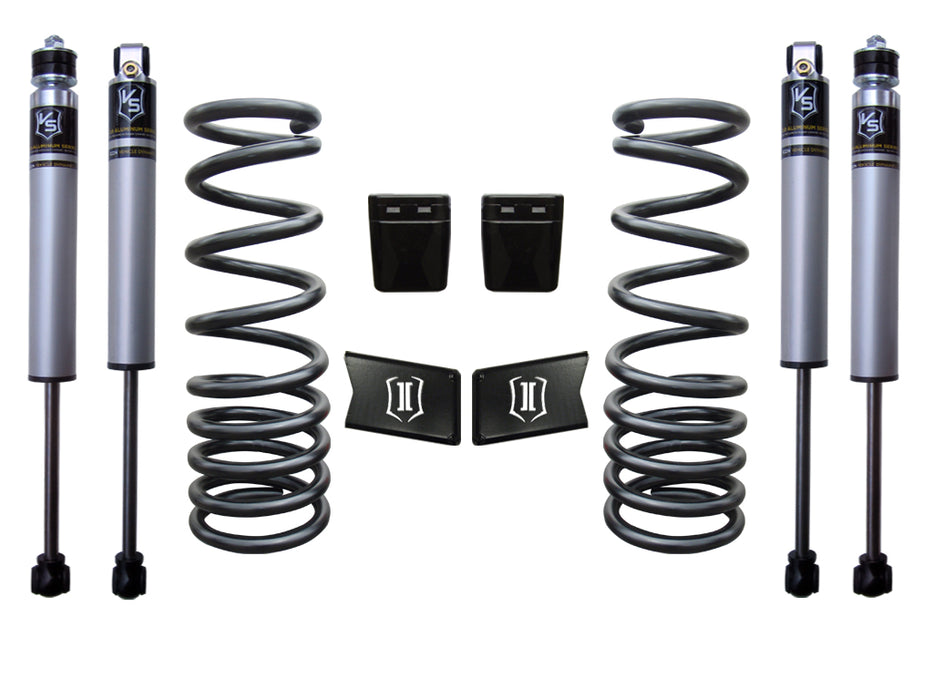

2003-2012 Ram 2500/3500 2.5 Inch Stage 1 Suspension System is ICON's entry level system. This system not only levels out the stance, it increases ride quality and performance both on and off road. The Stage 1 System is comprised of dual rate coil springs, polyurethane bumpstops, sway bar drop brackets, and ICON 2.0 Aluminum Series internal reservoir shocks. This entry level system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Specifications
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Description_ASC | APPLICATION NOTE #30: AN ADJUSTABLE TRACK BAR MAY BE NEEDED TO REALIGN THE AXLE FROM LEFT TO RIGHT, OR TO ADD ADDITIONAL STRENGTH |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC | APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.25” BS / 13mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.50" BS / 12mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.50" BS / 12mm Offset |
| Description_ASC | Ships in Multiple Boxes |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 03-12 RAM 2500/3500 4WD 2.5" STAGE 1 SUSPENSION SYSTEM |
| Description_DES | 03-12 RAM HD 0-3" REAR 2.0 VS IR |
| Description_DES | 03-12 RAM HD 2.5" FRONT 2.0 VS IR |
| Description_DES | 03-12 RAM HD 4WD 2.5" DUAL RATE SPRING KIT |
| Description_EXT | 2003-2012 RAM 2500/3500 4WD 2.5" LIFT STAGE 1 SUSPENSION SYSTEM |
| Description_FAB | ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series shocks |
| Description_FAB | Increased wheel travel and ride quality over stock with no change in towing capacity |
| Description_FAB | Less body roll than stock |
| Description_FAB | Level stance front to rear |
| Description_FAB | No drive shaft modifications needed |
| Description_INV | 03-12 RAM HD 4WD 2.5" STAGE 1 SUSP SYS |
| Description_MKT | 2003-2012 Ram 2500/3500 2.5 Inch Stage 1 Suspension System is ICON's entry level system. This system not only levels out the stance, it increases ride quality and performance both on and off road. The Stage 1 System is comprised of dual rate coil springs, polyurethane bumpstops, sway bar drop brackets, and ICON 2.0 Aluminum Series internal reservoir shocks. This entry level system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market. |
| Description_SHO | 2.5" SUSP SYS STG 1 |
| Description_TRA | ICON 2003-12 Ram 2500/3500 4WD, 2.5" Lift, Stage 5 Suspension System, K212501 |
| height | 10.0 |
| length | 26.0 |
| LTL | N |
| Title | 03-12 RAM 2500/3500 4WD 2.5" STAGE 1 SUSPENSION SYSTEM |
| weight | 96.0 |
| width | 19.0 |
