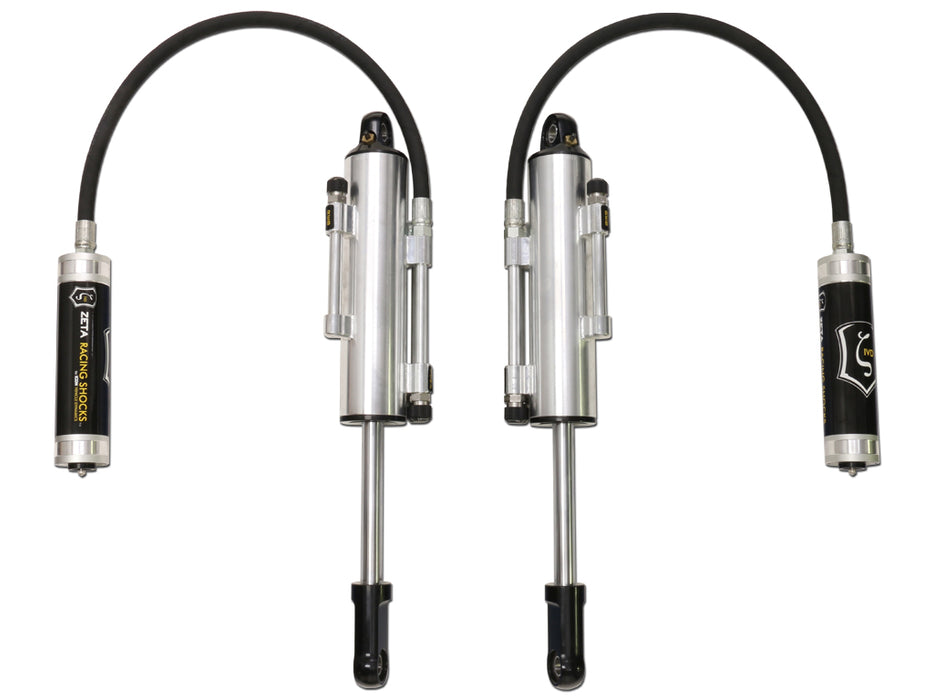

ICON Vehicle Dynamics 95005 2010-2014 RAPTOR FRONT SECONDARY 3.0 ZETA REMOTE RESERVOIR SHOCK PAIR
SKU ds_FRDK_95005
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$4,856.62
-
Original price
$4,856.62
Original price
$4,856.62
$4,856.62
$4,856.62
-
$4,856.62
Current price
$4,856.62
Availability:
Out of stock
Description
The ICON Ford SVT Raptor Secondary Front Shocks are a three tube External Bypass shock with remote reservoir. These are far from the norm when compared to a traditional bypass shock you see on Trophy Trucks and other off-road race vehicles. Each bypass valve has a specific port design and individually equipped with a different spring rate to ensure proper performance at each zone of shock travel. These same bypass valves feature damped valve seats for quiet and precise operation. That means no clicking noises as you hit bumps or road chatter driving down the road. The biggest difference in these shocks versus an industry standard bypass shock, are the "Easy-to-Adjust" knobs and the replaceable bypass tubes. The "Easy to Adjust" Hi Resolution Clicker Knobs do not require any tools for adjustment, and can be adjusted in seconds for thedemand of the terrain you will be facing. Another unique feature of this shock is the replaceable bypass tubes that can be swapped out during a standard rebuild if any damage were to occur, where a normal bypass shock body would need to be completely replaced, saving you hundreds of dollars.
Specifications
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Cylinder Color | Silver |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Description_DEF | Suspension Shock Absorber Set |
| Description_DES | 10-14 RAPTOR FRONT SECONDARY 3.0 ZETA RR PAIR |
| Description_EXT | 2010-2014 RAPTOR FRONT SECONDARY 3.0 ZETA REMOTE RESERVOIR SHOCK PAIR |
| Description_FAB | Compact bypass tube design allows ICON to fit 3 bypass tubes where others could only fit 2, allowing for more adjustability of the shock |
| Description_FAB | Compact tube block design keeps bypass tubes close to the body, providing maximum clearance from tires and other suspension components |
| Description_FAB | Digressive rebound on main piston in conjunction with calibrated external rebound valve preload facilitates good low-speed characteristics. This is in contrast to most bypass shocks that are designed primarily for high-speed use only. |
| Description_FAB | East-to-adjust bypass knobs allow for quick changes to shock without the use of tools |
| Description_FAB | Further increases front damping ability of the Raptor in off-road conditions |
| Description_FAB | High resolution bypass valves designed for noticeable fine-tuning of rebound and compression damping |
| Description_FAB | Hydraulically damped bypass valve seats are engineered to attenuate the loud bypass clicking noise transferred to the cab that is common with other brands. |
| Description_FAB | Multi Stage Cad Plated Finish with Polished and Anodized Top Cap / Rod Ends |
| Description_FAB | Replaceable bypass tubes can easily slide into position in case of damage |
| Description_INV | RAPTOR SECONDARY 3.0 ZETA RR PAIR |
| Description_MKT | For high performance Ford Raptor suspension components, ICON Vehicle Dynamics is an industry leader. With our 3.0 coil-overs and bypasses, billet aluminum upper control arms, and bolt-on rear bumpstop system, drivers of ICON-equipped Ford Raptors are able to push their vehicles to a whole new level. It is this level of off-road abuse that prompted ICON to develop a 3.0 Secondary Bypass shock that is engineered to work perfectly with the Camburg Performance Dual Shock Lower Control Arm kit. The addition of this 3.0 Secondary Bypass means rougher terrain and larger off-road obstacles can be overcome with speed and confidence. With the turn of a knob, the compression and rebound damping of these shocks can be tuned to perfectly compliment the rest of ICON's Raptor suspension products for an unparalleled level of on and off-road performance. |
| Description_MKT | The ICON Ford SVT Raptor Secondary Front Shocks are a three tube External Bypass shock with remote reservoir. These are far from the norm when compared to a traditional bypass shock you see on Trophy Trucks and other off-road race vehicles. Each bypass valve has a specific port design and individually equipped with a different spring rate to ensure proper performance at each zone of shock travel. These same bypass valves feature damped valve seats for quiet and precise operation. That means no clicking noises as you hit bumps or road chatter driving down the road. The biggest difference in these shocks versus an industry standard bypass shock, are the "Easy-to-Adjust" knobs and the replaceable bypass tubes. The "Easy to Adjust" Hi Resolution Clicker Knobs do not require any tools for adjustment, and can be adjusted in seconds for thedemand of the terrain you will be facing. Another unique feature of this shock is the replaceable bypass tubes that can be swapped out during a standard rebuild if any damage were to occur, where a normal bypass shock body would need to be completely replaced, saving you hundreds of dollars. |
| Description_SHO | RAPTOR SEC BYPASS |
| Description_TRA | ICON 2010-14 Ford Raptor Front Secondary 3.0 Zeta Remote Reservoir Shocks, Pair, 95005 |
| External Reservoir | Yes |
| Grade Type | Performance |
| height | 7.0 |
| length | 31.0 |
| LTL | N |
| Shaft Diameter | 1 |
| Shaft Material | Chrome |
| Title | 10-14 RAPTOR FRONT SECONDARY 3.0 ZETA RR PAIR |
| weight | 50.0 |
| width | 13.0 |
