ICON Vehicle Dynamics 78722 11-19 GM HD 0-2" 2.5 IR SHOCK SYSTEM W/ UCA
SKU ds_FRDK_78722
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,956.33
-
Original price
$1,956.33
Original price
$1,956.33
$1,956.33
$1,956.33
-
$1,956.33
Current price
$1,956.33
Availability:
Out of stock
Description

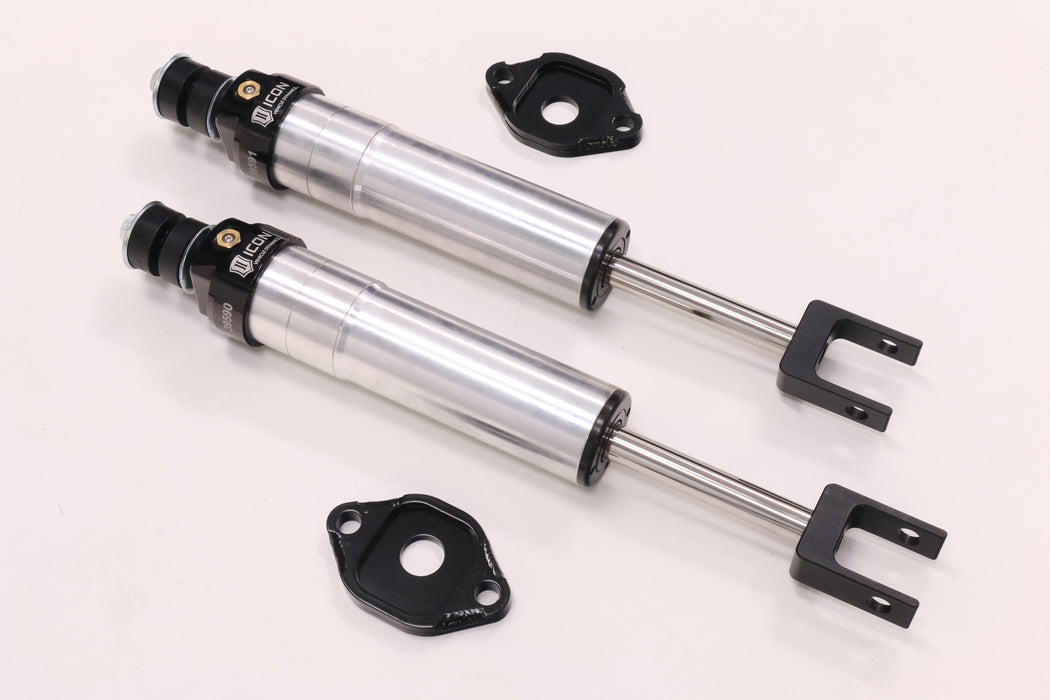

To ensure compatibility, ICON is no longer offering GM 2500HD/3500HD upper control arms as individual components. Upper control arms can only be purchased in unison with ICON shock absorbers as a complete system. The included ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) shocks.
Specifications
| Add-On Part | 191011 - TUBULAR UCA BILLET CAP SET |

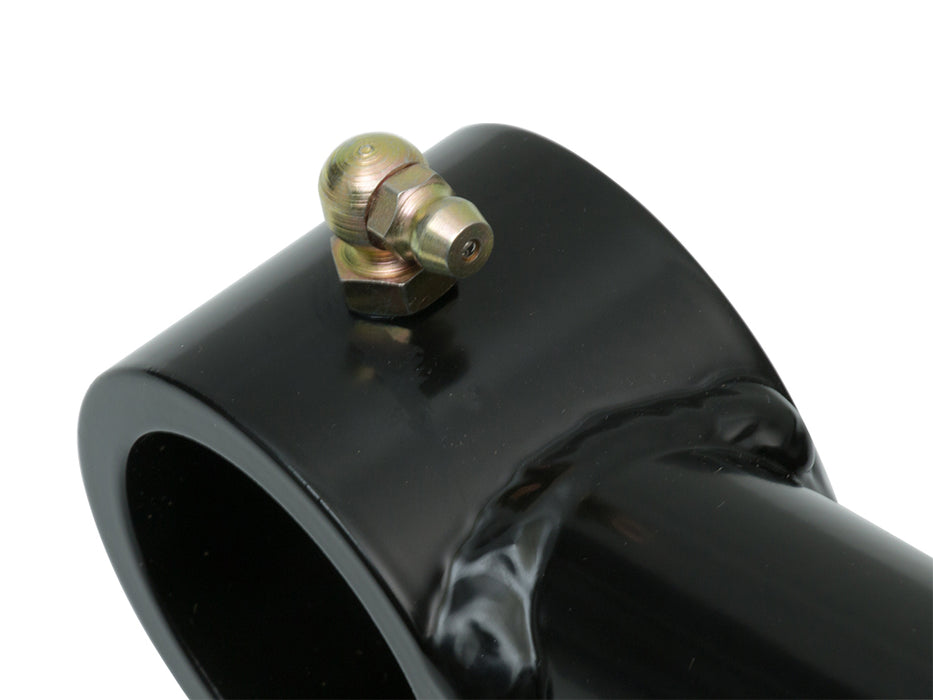

| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Bushing Color | Black |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Color | Black |
| Description_ASC | Factory Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9 with 5.5” Backspace / 12mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 20x9 with 5.5” Backspace / 12mm Offset |
| Description_DEF | Suspension Control Arm Kit |
| Description_DES | 11-19 GM HD 0-2" 2.5 IR SHOCK SYSTEM W/ UCA |
| Description_EXT | 2011-2019 GM HD 0-2" LIFT 2.5 INTERNAL RESERVOIR SHOCK SYSTEM WITH UPPER CONTROL ARMS |
| Description_FAB | 100% Rebuildable |
| Description_FAB | 100% Revalveable |
| Description_FAB | 1026 DOM Steel Construction |
| Description_FAB | 6061 aircraft grade aluminum CNC machined components |
| Description_FAB | 7/8" diameter induction hardened, chrome plated shock shaft |
| Description_FAB | Black Semi-Gloss Powder Coat Finish |
| Description_FAB | Built-In Caster Correction |
| Description_FAB | CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance |
| Description_FAB | CNC Bent Tubing |
| Description_FAB | CNC Machined Bushing Housings and Sleeves |
| Description_FAB | ICON Delta Joint |
| Description_FAB | Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks |
| Description_FAB | Nitrogen charged monotube design with internal reservoir |
| Description_FAB | One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road |
| Description_FAB | Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range |
| Description_FAB | PTFE lined spherical bearings and application specific mounting hardware |
| Description_FAB | Serviceable Dual Stage Bushings |
| Description_INV | 11-19 GM HD 0-2" 2.5 IR SHOCKS W/ UCA |
| Description_MKT | Take the performance of your 2011-2019 GM HD truck to new levels with the ICON Vehicle Dynamics Delta Joint tubular upper control arm kit. All ICON tubular upper control arms are constructed from CNC bent 1026 DOM steel tubing and then powder coated to a semi-gloss black finish for maximum strength and corrosion resistance. ICON upper control arms are engineered with built-in caster correction for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the increased wheel travel (nearly 50%) when paired with our 2.0 or 2.5 series shock absorbers, this translates into superior performance and ride quality for your 2011-2019 GM HD. |
| Description_MKT | These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint. |
| Description_MKT | To ensure compatibility, ICON is no longer offering GM 2500HD/3500HD upper control arms as individual components. Upper control arms can only be purchased in unison with ICON shock absorbers as a complete system. The included ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) shocks. |
| Description_SHO | GM HD UCA/SHOCK KIT |
| Description_TRA | ICON 2011-19 GM 2500/3500 HD, 0-2” Lift, 2.5 VS Shock System, Tubular UCA, 78722 |
| finish | Powdercoated |
| height | 7.0 |
| length | 31.0 |
| LTL | N |
| Title | 11-19 GM HD 0-2" 2.5 IR SHOCK SYSTEM W/ UCA |
| weight | 30.0 |
| width | 13.0 |
