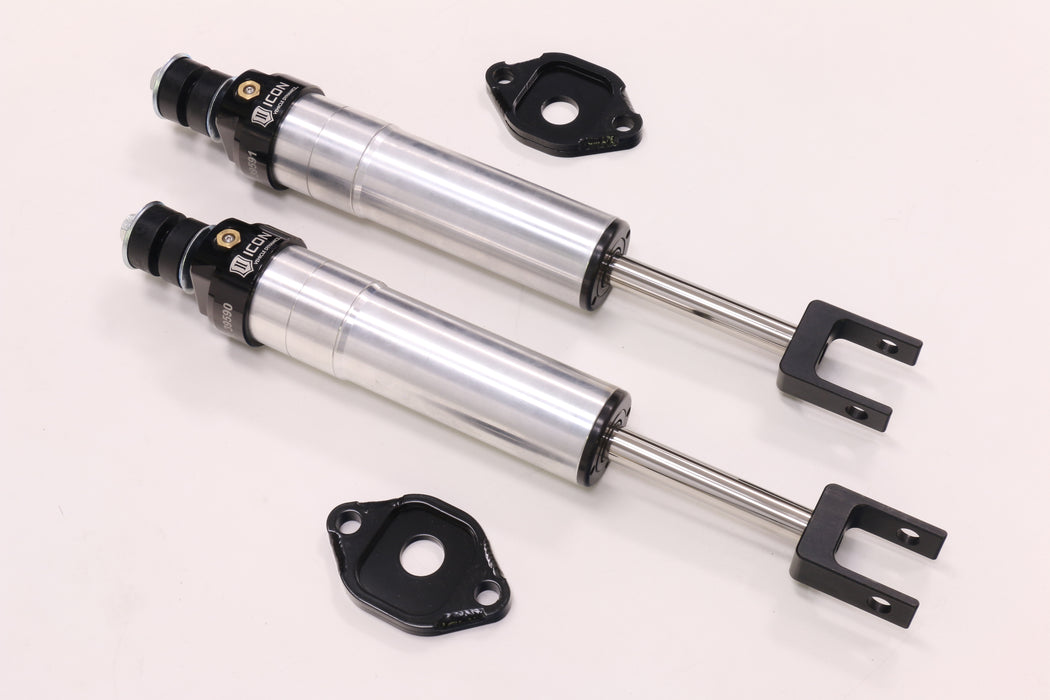

ICON Vehicle Dynamics 77607P 2011-2016 GM HD 6-8" LIFT FRONT 2.5 VS INTERNAL RESERVOIR SHOCK PAIR
SKU ds_FRDK_77607P
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,279.24
-
Original price
$1,279.24
Original price
$1,279.24
$1,279.24
$1,279.24
-
$1,279.24
Current price
$1,279.24
Availability:
Out of stock
Description
ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) or the Omega Series bypass shocks.
Specifications
| Attributed Description | ICON Vehicle Dynamics; Shock Absorber Set; Adjustable: No; Boot Included: No; Bore Diameter: 2.25 IN; Compressed Length: 13.46 IN; Fully Open Length: 18.79 IN; Gas Charged: Yes; Lower Mount Type: Clevis; Mounting Hardware Included: Yes; Shock Absorber Body End Measuring Point: Shoulder of Stem; Shock Absorber Rod End Measuring Point: Center of Clevis Holes; Stroke Length Front: 5.3 IN; Tube Outside Diameter: 2.50 IN; Upper Mount Type: Stem; External Reservoir: No |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Cylinder Color | Silver |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Description_DEF | Suspension Shock Absorber Set |
| Description_DES | 11-16 GM HD 6-8" FRONT 2.5 VS IR PAIR |
| Description_EXT | 2011-2016 GM HD 6-8" LIFT FRONT 2.5 VS INTERNAL RESERVOIR SHOCK PAIR |
| Description_FAB | 100% Rebuildable |
| Description_FAB | 100% Revalveable |
| Description_FAB | 6061 aircraft grade aluminum CNC machined components |
| Description_FAB | 7/8” diameter induction hardened, chrome plated shock shaft |
| Description_FAB | CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance |
| Description_FAB | Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks |
| Description_FAB | Nitrogen charged monotube design with internal reservoir |
| Description_FAB | One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road |
| Description_FAB | Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range |
| Description_FAB | PTFE lined spherical bearings and application specific mounting hardware |
| Description_INV | 11-16 GM HD 6-8" FRNT 2.5 IR PAIR |
| Description_MKT | ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) or the Omega Series bypass shocks. |
| Description_SHO | FRNT SHOCK ABSORBERS |
| Description_TRA | ICON 2011-16 GM 2500/3500 HD, 6-8” Lift ,Front 2.5 VS Shocks, Pair, 77607P |
| External Reservoir | NO |
| Grade Type | Performance |
| height | 5.0 |
| length | 29.0 |
| LTL | N |
| Shaft Diameter | 0.875 |
| Shaft Material | Chrome |
| Title | 11-16 GM HD 6-8" FRONT 2.5 VS IR PAIR |
| weight | 26.0 |
| width | 10.0 |
