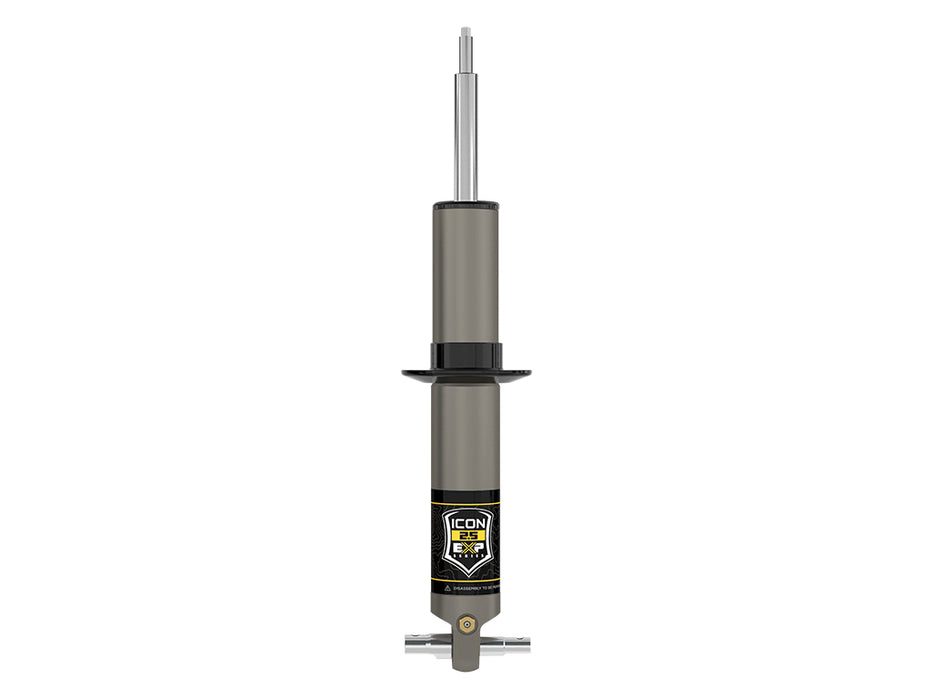

ICON Vehicle Dynamics 71607 19-23 GM 1500 FRONT 2.5 EXP COILOVER
SKU ds_FRDK_71607
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$901.04
-
Original price
$901.04
Original price
$901.04
$901.04
$901.04
-
$901.04
Current price
$901.04
Availability:
4+ in stock
Description
EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the 2019-2023 GM 1500 in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
Specifications
| Adjustable Damping | NO |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | No |
| Damping Type | Oil |
| Description_ASC | APPLICATION NOTE #110: TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires (Sierra 1500): 34"x12.00" (Minor fender trimming and modifications may be required) |
| Description_ASC | Recommended Aftermarket Tires (Silverado 1500): 35"x12.50" (Minor fender trimming and modifications may be required) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 4.75” Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9 with 5” Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 20x9 with 5” Backspace / 0mm Offset |
| Description_ASC | TECH NOTE: EXP Coilovers are sold individually. A quantity of 2 are required per vehicle. |
| Description_ASC | TECH NOTE: Models equipped with Duramax diesel engines will have front lift height range of 1.75-3" over stock |
| Description_ASC | TECH NOTE: Not compatible with models equipped with Adaptive Ride Control (ARC) |
| Description_ASC | TECH NOTE: Not compatible with Silverado 1500 Trail Boss or Sierra 1500 AT4 |
| Description_ASC | TECH NOTE: Not compatible with Silverado 1500 ZR2 or Sierra 1500 AT4X |
| Description_ASM | ICON 19-23 GM 1500 FRONT 2.5 EXP COILOVER |
| Description_DEF | Coilover Spring and Shock Assembly |
| Description_DES | 19-23 GM 1500 FRONT 2.5 EXP COILOVER |
| Description_EXT | EXP Series shock absorbers by ICON combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the vehicle’s factory coil spring and other components. |
| Description_FAB | 100% Bolt-on - no cutting or welding necessary for installation |
| Description_FAB | 2.5 Aluminum Series Shock with Internal Reservoir |
| Description_FAB | Adjustable ride heights from 2.375-3.75” of front lift over stock with the use of snap ring |
| Description_FAB | CNC machined 6061 aluminum components with a black anodize finish |
| Description_FAB | Fully rebuildable and re-tunable |
| Description_FAB | Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft |
| Description_FAB | One-piece impact extruded aluminum hard anodized cylinders offer excellent corrosion resistance and consistent finish |
| Description_FAB | PTFE lined bearings for extended longevity and minimal deflection |
| Description_FAB | Utilizes factory coils |
| Description_FAB | Vehicle specific design for the 2019-2023 GM 1500 trucks |
| Description_INV | 71607 |
| Description_MKT | EXP Series for the 2019-2023 GM 1500 is based on ICON’s proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation. |
| Description_MKT | EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the 2019-2023 GM 1500 in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON. |
| Description_MKT | The 6061-billet aluminum coil spring seat is CNC machined to fit the truck’s OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 2.375” to 3.75" of lift over stock. |
| Description_SHO | EXP COILOVER |
| Description_TRA | ICON 2019-2023 GM 1500, Front, 2.38-3.75" Lift, 2.5 EXP Coilover, 71607 |
| Grade Type | Performance |
| height | 5.0 |
| length | 32.0 |
| LTL | N |
| Material | Aluminum |
| Material | Steel |
| Maximum Lift | 3.75 |
| Minimum Lift | 2.375 |
| Remote Reservoir | NO |
| Shaft Diameter | 0.875 |
| Title | ICON 2019-2023 GM 1500, Front, 2.38-3.75" Lift, 2.5 EXP Coilover |
| weight | 13.0 |
| width | 6.0 |
