ICON Vehicle Dynamics 61720 05-23 FSD 2.5" 2.5 VS RR BOLT IN CO CONVERSION KIT
SKU ds_FRDK_61720
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$3,833.13
-
Original price
$3,833.13
Original price
$3,833.13
$3,833.13
$3,833.13
-
$3,833.13
Current price
$3,833.13
Availability:
4+ in stock
Description

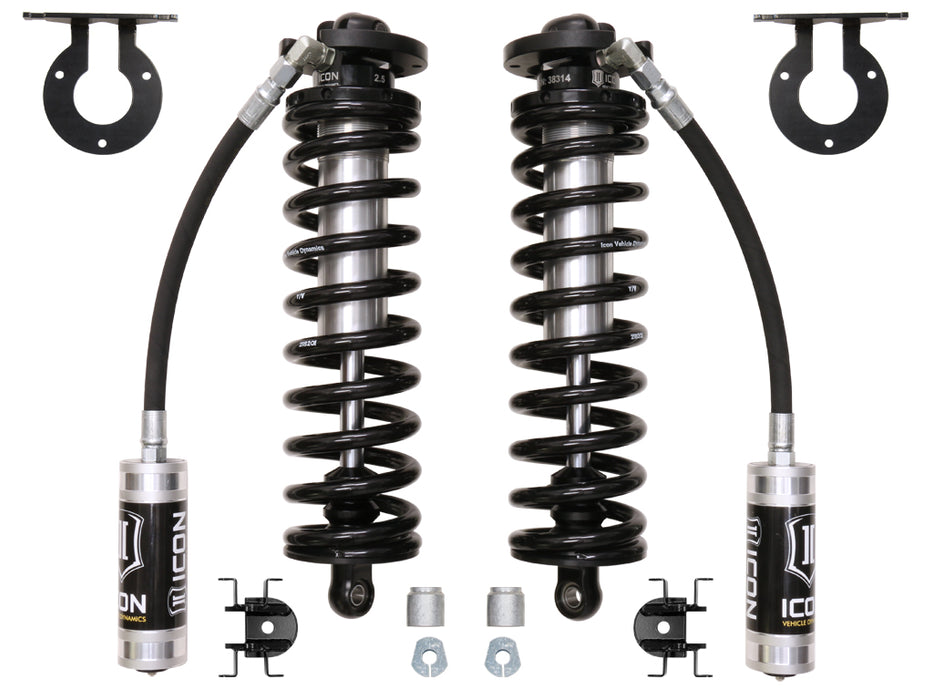

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2023 F-250, F-350, and F-450 pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.
Specifications
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable Damping | NO |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Damping Type | Oil |
| Description_ASC | Factory Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with fender trimming and modifications required) |
| Description_ASC | Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.00” Backspace / 6mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25” Backspace / 6mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25” Backspace / 6mm Offset |
| Description_ASC | TECH NOTE: 2005-2016 F-250s require 4” rear blocks with 15” U-bolt kit to sit level with 2.5” lifted front. ICON block kit part # 194275 and U-bolt kit part # 37003 (2005-2010 models) or part # 67003 (2011-2016 models) are recommended. |
| Description_ASC | TECH NOTE: 2017-2019 Super Duty models will have front lift height range of 2.5-3" over stock |
| Description_ASC | TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 2.25-2.75" over stock |
| Description_ASC | TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height range of 3.25-3.75" over stock |
| Description_ASC | TECH NOTE: 2020-2023 Super Duty models equipped with Tremor package will have front lift height range of 2.25-2.75" over stock |
| Description_ASC | TECH NOTE: 2020-2023 Super Duty models without Tremor package will have front lift height range of 3.25-3.75" over stock |
| Description_ASC | TECH NOTE: Brake line kit (Part # 61111) is optional for end users with 2017-2022 F-250/F-350 who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install) |
| Description_ASC | TECH NOTE: Brake line kit (Part # 61111) is optional for end users with 2017-2023 models who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install) |
| Description_ASC | TECH NOTE: If installing with ICON 2.5 Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required |
| Description_ASC | TECH NOTE: Only compatible with 4WD models |
| Description_ASC | TECH NOTE: Removal of the coil centering cup in factory coil bucket required for installation |
| Description_ASC | TECH NOTE: Springs are rated for diesel engines only |
| Description_ASM | ICON 05-23 FSD 2.5" 2.5 VS RR BOLT IN CO CONVERSION KIT |
| Description_DEF | Coilover Spring and Shock Assembly |
| Description_DES | 05-22 FSD 2.5" 2.5 VS RR BOLT IN CO CONVERSION KIT |
| Description_DES | 05-23 FSD 2.5" 2.5 VS RR BOLT IN CO CONVERSION KIT |
| Description_EXT | 2005-2022 FORD SUPER DUTY 4WD 2.5-3" LIFT 2.5 VS REMOTE RESERVOIR BOLT IN COILOVER CONVERSION KIT |
| Description_EXT | ICON's 2.5 Series Remote Reservoir Bolt-In Coilover Kit will add a new level of performance and adjustability to the 05-23 Ford Super Duty. Increasing the overall damping ability while allowing for user-defined ride height adjustment. |
| Description_FAB | Bolt-in system fits in OE coil bucket location |
| Description_FAB | Coilover conversion allows for addition of secondary shock |
| Description_FAB | Corrosion resistant CAD plated coilover shock body with 7/8" shaft |
| Description_FAB | Decreased body roll and improved on and off-road ride dynamics |
| Description_FAB | Eibach coil springs guaranteed for life against sagging or breakage |
| Description_FAB | FK Rod End bearings for extended longevity and minimal deflection |
| Description_FAB | Ride height adjustable coilovers provide 2.5-3" or 3.25-3.75" of lift, depending on year model of truck |
| Description_FAB | Shocks are fully rebuildable and revalveable |
| Description_FAB | Vehicle-specific shock valving provides unparalleled ride quality and control |
| Description_INV | 61720 |
| Description_INV | FSD 4WD 2.5-3" 2.5 VS RR BOLT IN CO KIT |
| Description_MKT | ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2022 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary. |
| Description_MKT | ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2023 F-250, F-350, and F-450 pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary. |
| Description_SHO | FSD COILOVER KIT |
| Description_TRA | ICON 2005-2022 Ford F250/350 SD 4WD, 2.5” Lift, 2.5 VS RR Coilover Conversion Kit, 61720 |
| Grade Type | Performance |
| height | 7.0 |
| length | 31.0 |
| LTL | N |
| Remote Reservoir | Yes |
| Shaft Diameter | 0.875 |
| Spring Color | Black |
| Spring Material | Steel |
| Title | ICON 05-22 Ford F250/350 SD 4WD, 2.5” Lift, 2.5 VS RR Coilover Conversion Kit |
| Title | ICON 05-23 Ford Super Duty 4WD, 2.5” Lift, 2.5 VS RR Coilover Conversion Kit |
| weight | 70.0 |
| width | 13.0 |
