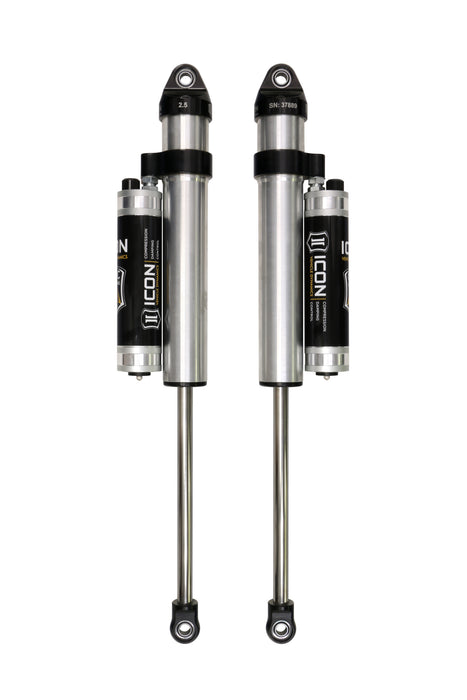

ICON Vehicle Dynamics 61710CP 08-16 FSD 4WD 4.5-9" FRONT SECONDARY 2.5 VS PB CDCV PAIR
SKU ds_FRDK_61710CP
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,312.66
-
Original price
$2,312.66
Original price
$2,312.66
$2,312.66
$2,312.66
-
$2,312.66
Current price
$2,312.66
Availability:
Out of stock
Description
ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.
Specifications
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Cylinder Color | Silver |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Description_DEF | Suspension Shock Absorber Set |
| Description_DES | 08-16 FSD 4WD 4.5-9" FRONT SECONDARY 2.5 VS PB CDCV PAIR |
| Description_EXT | 2008-2016 FORD SUPER DUTY 4WD 4.5-9" LIFT FRONT SECONDARY 2.5 VS PIGGYBACK CDCV SHOCK PAIR |
| Description_FAB | 100% Rebuildable |
| Description_FAB | 100% Revalveable |
| Description_FAB | 6061 aircraft grade aluminum CNC machined components |
| Description_FAB | 7/8” diameter induction hardened, chrome plated shock shaft |
| Description_FAB | CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance |
| Description_FAB | ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob |
| Description_FAB | ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression |
| Description_FAB | Nitrogen charged monotube design with piggyback reservoir |
| Description_FAB | One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road |
| Description_FAB | Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range |
| Description_FAB | PTFE lined spherical bearings and application specific mounting hardware |
| Description_FAB | Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use |
| Description_INV | 08-16 FSD 4.5-9 FRNT SECNDRY VS PB CDCV |
| Description_MKT | ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks. |
| Description_SHO | SECONDARY SHOCKS |
| Description_TRA | ICON 08-16 Ford F250/350 SD 4WD 4.5-9” Lift Front 2.5 VS PB/CDCV Secondary, Pair, 61710CP |
| External Reservoir | Yes |
| Grade Type | Performance |
| height | 6.0 |
| length | 37.0 |
| LTL | N |
| Shaft Diameter | 0.875 |
| Shaft Material | Chrome |
| Title | 08-16 FSD 4WD 4.5-9" FRONT SECONDARY 2.5 VS PB CDCV PAIR |
| weight | 27.0 |
| width | 7.0 |
