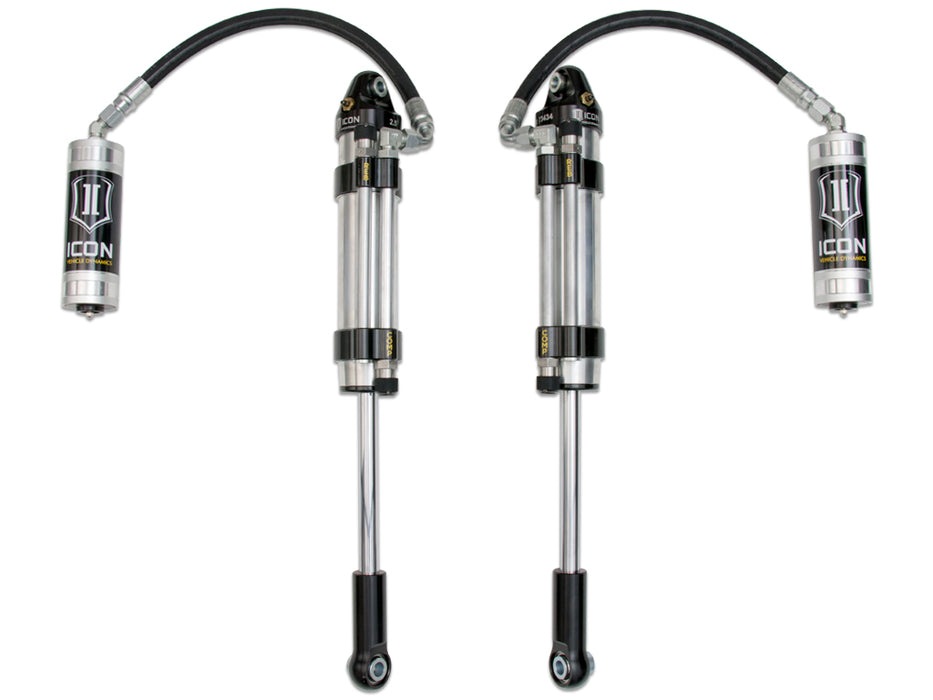

ICON Vehicle Dynamics 59922P 2007-2021 TUNDRA S2 2.5 VS REMOTE RESERVOIR OMEGA BYPASS SHOCK PAIR
SKU ds_FRDK_59922P
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$4,015.85
-
Original price
$4,015.85
Original price
$4,015.85
$4,015.85
$4,015.85
-
$4,015.85
Current price
$4,015.85
Availability:
Out of stock
Description

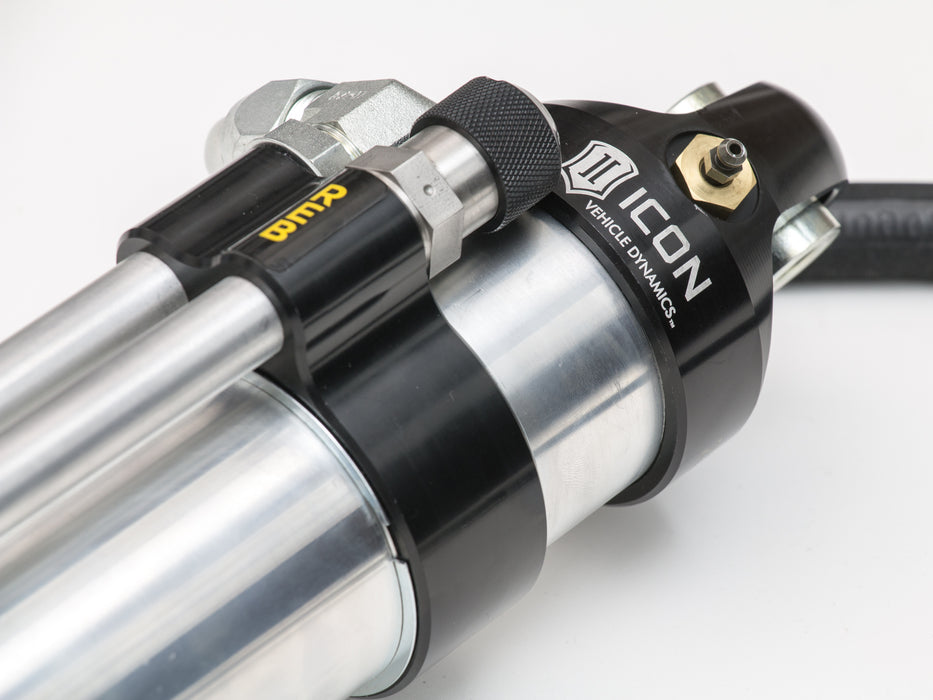

ICON Omega Series Bypass shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves. Like all ICON shock absorbers, Omega Series shocks are 100% rebuildable and 100% revalveable. ICON’s use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used, creates a significant increase in damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required.
Specifications
| Description_DEF | Suspension Shock Absorber Set |
| Description_DES | 07-21 TUNDRA S2 2.5 VS RR OMEGA PAIR |
| Description_EXT | 2007-2021 TUNDRA S2 2.5 VS REMOTE RESERVOIR OMEGA BYPASS SHOCK PAIR |
| Description_FAB | 100% Rebuildable |
| Description_FAB | 100% Revalveable |
| Description_FAB | 6061 aircraft grade aluminum CNC machined components |
| Description_FAB | 7/8” diameter induction hardened, chrome plated shock shaft |
| Description_FAB | Bypass tubes are replaceable in the event of damage |
| Description_FAB | Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning |
| Description_FAB | ICON's Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range |
| Description_FAB | Internal “Bump Zone” increases damping force to provide more control as the shock approaches full compression |
| Description_FAB | One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road |
| Description_FAB | One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish |
| Description_FAB | Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range |
| Description_FAB | PTFE lined spherical bearings and application specific mounting hardware |
| Description_FAB | Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use |
| Description_INV | 07-21 TUNDRA S2 RR OMEGA PAIR |
| Description_MKT | ICON Omega Series Bypass shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves. Like all ICON shock absorbers, Omega Series shocks are 100% rebuildable and 100% revalveable. ICON’s use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used, creates a significant increase in damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required. |
| Description_SHO | SECONDARY SHOCKS |
| Description_TRA | ICON 2007-21 Toyota Tundra, Rear, 2.5 Omega Bypass RR Secondary Shocks, Pair, 59922P |
| height | 9.0 |
| length | 39.0 |
| LTL | N |
| weight | 35.0 |
| width | 15.0 |
