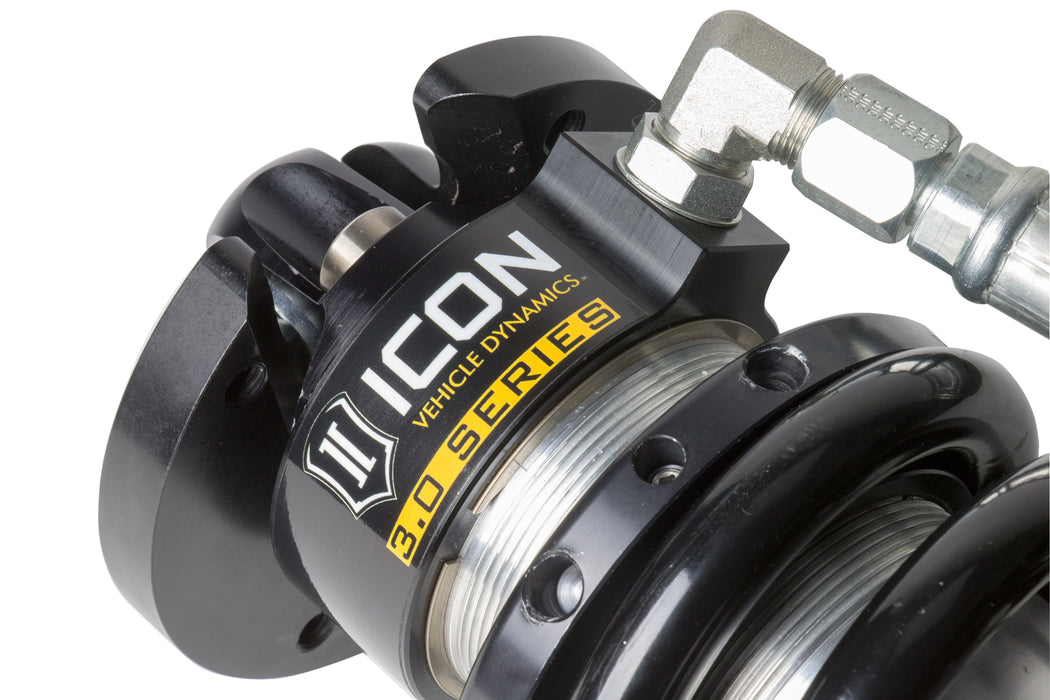

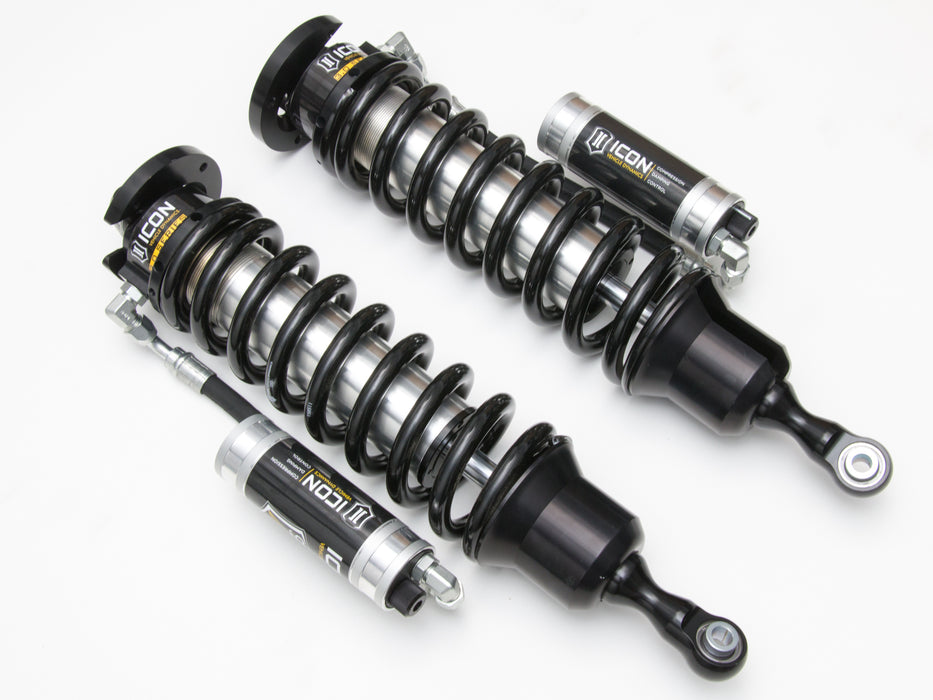

ICON Vehicle Dynamics 58765 2008-UP LC 200 3.0 VS REMOTE RESERVOIR CDCV COILOVER KIT
SKU ds_FRDK_58765
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$4,739.83
-
Original price
$4,739.83
Original price
$4,739.83
$4,739.83
$4,739.83
-
$4,739.83
Current price
$4,739.83
Availability:
Out of stock
Description
These 3.0 Series coilovers were designed as an OEM shock replacement, making install a simple and straightforward bolt-on affair. Built in ride height adjustability yields 2.25-3.5” of front lift height allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components such as Eibach coil springs and FK Rod End bearings are used to ensure these shocks function to their maximum potential without issue.
Specifications
| Add-On Part | 191010 - ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable | Yes |
| Adjustable Damping | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Damping Type | Oil |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 34 x 10.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Description_ASC | Recommended Aftermarket Wheels: 8-8.5" Wide, 5.75" Backspace |
| Description_DEF | Coilover Spring and Shock Assembly |
| Description_DES | 08-UP LC 200 3.0 VS RR CDCV CO KIT |
| Description_EXT | 2008-UP LC 200 3.0 VS REMOTE RESERVOIR CDCV COILOVER KIT |
| Description_FAB | 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping with temperature increase |
| Description_FAB | Adjustable coilovers provide 2.25-3.5” of front lift height |
| Description_FAB | Direct bolt-in to OEM shock location makes for an easy install |
| Description_FAB | Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations |
| Description_FAB | Fully serviceable |
| Description_FAB | Heavy duty 1” CNC machined shock shafts |
| Description_FAB | High quality ICON-engineered Eibach springs offer increased travel and performance |
| Description_FAB | ICON’s multi-stage, tuneable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel |
| Description_FAB | Increased wheel travel and vehicle specific valving provides comfortable and consistent ride quality on and off-road |
| Description_FAB | Multi stage CAD plated shock body with hard anodized piston and top cap |
| Description_FAB | PTFE lined COM12 spherical bearings ensure maximum strength and durability |
| Description_FAB | Significant increase in damping ability for excellent performance in extreme off-road conditions |
| Description_FAB | “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability |
| Description_INV | 08-UP LC 200 3.0 VS RR CDCV COILOVER KIT |
| Description_MKT | Compared to the 2.5” diameter coilovers the 3.0 Series shocks see a piston surface area increase of 50% in the ride zone, and 100% in the “Bump Zone”. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles. |
| Description_MKT | These 3.0 Series coilovers were designed as an OEM shock replacement, making install a simple and straightforward bolt-on affair. Built in ride height adjustability yields 2.25-3.5” of front lift height allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components such as Eibach coil springs and FK Rod End bearings are used to ensure these shocks function to their maximum potential without issue. |
| Description_MKT | While ICON’s 2.5 Series coilovers are an excellent choice for drivers looking for a great all-around performance upgrade, there are a select few Land Cruiser owners seeking to drive their vehicles in a manner and in terrain that beckons for more. The ICON Vehicle Dynamics 2008-UP Land Cruiser 3.0 Series Coilover Kit was designed to take the off-road capability of the truck to new levels by increasing wheel travel and significantly improving the damping ability of the front shocks. |
| Description_SHO | LC200 3.0 COILOVERS |
| Description_TRA | ICON 2008-Up Toyota Land Cruiser, 3.0 VS RR/CDCV Coilover Kit, 58765 |
| Grade Type | Performance |
| height | 10.0 |
| length | 33.0 |
| LTL | N |
| Material | Steel |
| Remote Reservoir | Yes |
| Shaft Diameter | 1 |
| Spring Color | Black |
| Spring Material | Steel |
| Title | 08-UP LC 200 3.0 VS RR CDCV CO KIT |
| weight | 70.0 |
| width | 15.0 |
