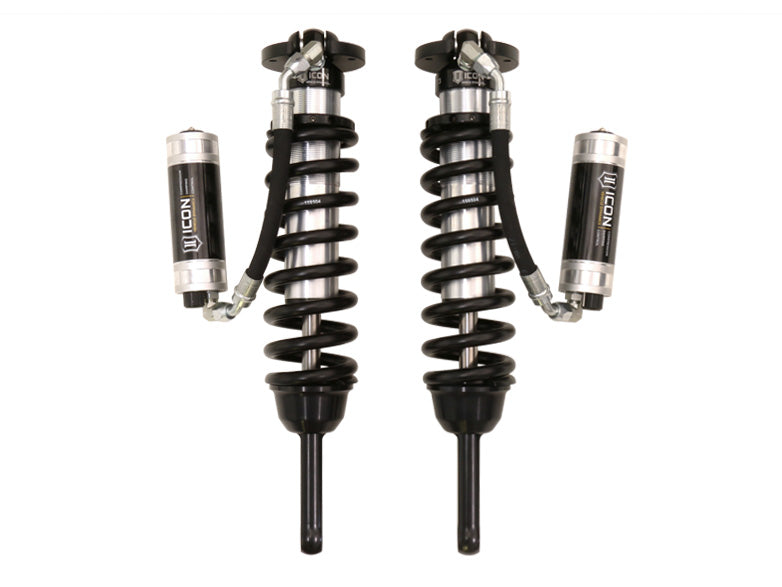

ICON Vehicle Dynamics 58735C 05-UP TACOMA EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT
SKU ds_FRDK_58735C
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$2,750.84
-
Original price
$2,750.84
Original price
$2,750.84
$2,750.84
$2,750.84
-
$2,750.84
Current price
$2,750.84
Availability:
4+ in stock
Description
These ICON extended-travel coilovers feature 2.5 Series shocks with remote reservoirs and coil springs optimized per application. These hardcore units are outfitted with ICON’s CDCV which offers 10 points of adjustability.
Specifications
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable Damping | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Damping Type | Oil |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 4.75” Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9 with 5.00” Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 20x9 with 5.00” Backspace / 0mm Offset |
| Description_ASC | TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock |
| Description_ASC | TECH NOTE: Aftermarket front upper control arms required for installation |
| Description_ASM | ICON 05-UP TACOMA EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT |
| Description_DEF | Coilover Spring and Shock Assembly |
| Description_DES | 05-UP TACOMA EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT |
| Description_EXT | These ICON extended-travel coilovers feature 2.5 Series shocks with remote reservoirs and coil springs optimized per application. These hardcore units are outfitted with ICON’s CDCV which offers 10 points of adjustability. |
| Description_FAB | 250 PSI nitrogen-charged internal reservoir |
| Description_FAB | 5/8" PTFE-lined spherical bearing |
| Description_FAB | Adjustable ride height from 0" - 3.5" |
| Description_FAB | Billet aluminum upper mount |
| Description_FAB | Cad-plated threaded body / Extreme Weather Plating Option Available |
| Description_FAB | Chrome-silicon spring |
| Description_FAB | Completely re-buildable |
| Description_FAB | External reservoir ensures maximum cooling |
| Description_FAB | Hose Length Optimized for Increased Fluid Transfer |
| Description_FAB | ICON CDCV provides 10 points of adjustability |
| Description_FAB | Mounting Bracket Orients Reservoir for Optimum Tire Clearance |
| Description_FAB | Race shock piston with flutter stack compression valving |
| Description_INV | 58735C |
| Description_MKT | These ICON coilovers feature 2.5 Series shocks with remote reservoirs and coil springs optimized per application. These hardcore units are outfitted with ICON’s CDCV which offers 10 points of adjustability. |
| Description_SHO | TACOMA COILOVERS |
| Description_TRA | ICON 2005-Up Toyota Tacoma, 2.5 VS Extended Travel, Remote Reservoir/CDCV Coilover Kit, 58735C |
| Grade Type | Performance |
| height | 8.0 |
| length | 27.0 |
| LTL | N |
| Material | Aluminum |
| Material | Steel |
| Remote Reservoir | Yes |
| Shaft Diameter | 0.875 |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate | 650 |
| Title | 05-UP TACOMA EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT |
| weight | 50.0 |
| width | 12.0 |
