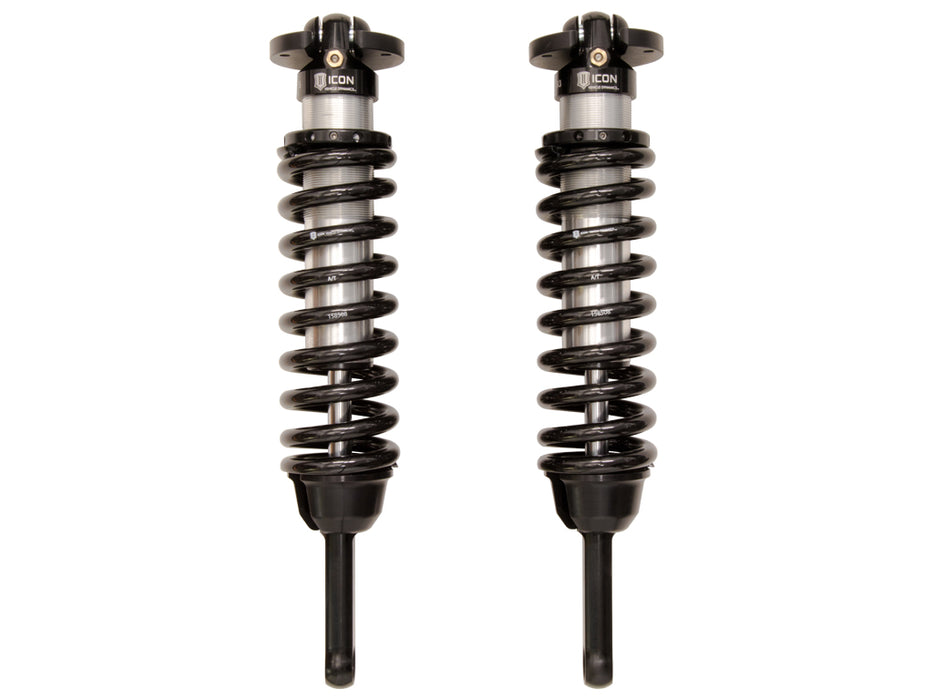

ICON Vehicle Dynamics 58647-700 10-UP FJ/4RNR/10-UP GX EXT TRAVEL 2.5 VS IR COILOVER KIT 700
SKU ds_FRDK_58647-700
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$2,256.30
-
Original price
$2,256.30
Original price
$2,256.30
$2,256.30
$2,256.30
-
$2,256.30
Current price
$2,256.30
Availability:
Out of stock
Description
ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers. Upgraded coil springs are included to better support added weight from accessories such as front bumpers and winches. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.
Specifications
| Description_ASC | Factory Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 w/ 4.75" Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys | 18x9 w/ 5" Backspace / 0mm Offset |
| Description_ASC | TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information. |
| Description_ASC | TECH NOTE: Aftermarket front upper control arms required for installation |
| Description_DEF | Coilover Spring and Shock Assembly |
| Description_DES | 10-UP FJ/4RNR/10-UP GX EXT TRAVEL 2.5 VS IR COILOVER KIT 700 |
| Description_EXT | These extended length ICON VS 2.5 Series coilovers offer increased wheel travel but also require the installation of aftermarket upper control arms. They are vehicle specific, 100% rebuildable, and 100% revalveable. |
| Description_FAB | Adjustable coilovers yield 0-3.5" of front lift height |
| Description_FAB | Bolt-in design makes for an easy install into OEM shock location |
| Description_FAB | Coil springs rated at 700 lb-in |
| Description_FAB | Corrosion resistant CAD plated shock body with 7/8" shaft |
| Description_FAB | Extended Travel length requires installation of aftermarket front upper control arms |
| Description_FAB | FK Rod End bearings provide extended longevity and minimal deflection |
| Description_FAB | Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life |
| Description_FAB | High quality ICON-engineered coil springs with higher spring rate included to better support added weight to front end |
| Description_FAB | Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use |
| Description_FAB | Superior low speed control reduces body roll and increases on-road stability |
| Description_INV | 58647-700 |
| Description_MKT | ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers. Upgraded coil springs are included to better support added weight from accessories such as front bumpers and winches. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. |
| Description_SHO | FJ/T4R/GX COILOVERS |
| Description_TRA | ICON 2010-Up Toyota 4Runner/FJ/Lexus GX 2.5 VS Ext Travel Coilover Kit, 700lb, 58647-700 |
| height | 7.0 |
| length | 26.0 |
| LTL | N |
| weight | 50.0 |
| width | 13.0 |
