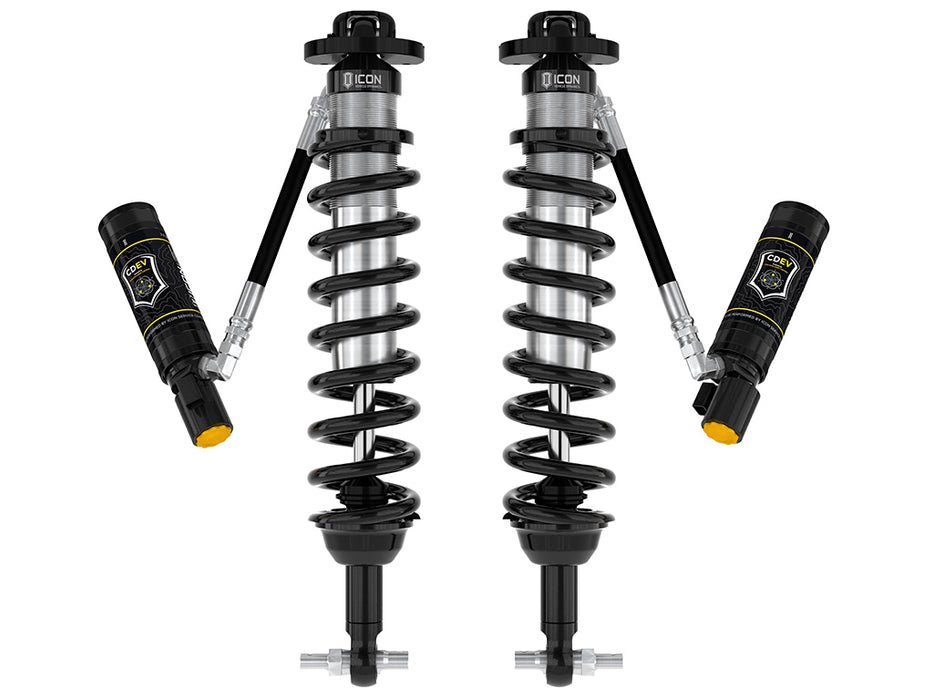

ICON Vehicle Dynamics 48700E 2021-UP FORD BRONCO FRONT 2.5 VS REMOTE RESERVOIR COILOVER KIT WITH CDEV
SKU ds_FRDK_48700E
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$3,455.73
-
Original price
$3,455.73
Original price
$3,455.73
$3,455.73
$3,455.73
-
$3,455.73
Current price
$3,455.73
Availability:
Out of stock
Description
ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDEV are the ideal upgrade for the front end of the 2021-UP Ford Bronco. These adjustable coilovers allow up to 3-4” of lift height adjustability on Broncos without the Sasquatch package or 2-3” of lift over stock Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Electronic Valves (CDEV) are included to allow for lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the CDEV at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. ICON 2.5 Series rear coilovers with CDEV and matching IIC module are required for installation but vehicle control will be actively balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.
Specifications
| Add-On Part | 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 42000 - 21-UP BRONCO HIGH CLEARANCE CRASH BAR KIT |
| Add-On Part | 43501 - 21-UP BRONCO IIC INSTALL KIT |
| Add-On Part | 48710E - 21-UP BRONCO REAR 2.5 VS CDEV COILOVER KIT |
| Add-On Part | 611075 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 1/2" TALL |
| Adjustable Damping | Electronically |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Damping Type | Oil |
| Description_ASC | APPLICATION NOTE #132: WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITERS PART #611075 IN THE FRONT |
| Description_ASC | APPLICATION NOTE #138: RECOMMENDED CRASH BARS PART #42000 ON NON-SASQUATCH EQUIPPED VEHICLES WHEN RUNNING 35" TIRES |
| Description_ASC | APPLICATION NOTE #139: WHEN RUNNING 37" TIRES CRASH BAR REMOVAL MAY BE REQUIRED BUT IS NOT RECOMMENDED |
| Description_ASC | APPLICATION NOTE #24: FACTORY UCA’S WILL NOT ALIGN PROPERLY PAST 2.5” OF LIFT. ABOVE 2.5” OF LIFT AN AFTERMARKET UCA IS RECOMMENDED. |
| Description_ASC | OEM Wheels & Tires Fitment (With Sasquatch Package): Yes |
| Description_ASC | OEM Wheels & Tires Fitment (Without Sasquatch Package): No |
| Description_ASC | Recommended Aftermarket Tires (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming) |
| Description_ASC | Recommended Aftermarket Tires (Without Sasquatch Package): 35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications) |
| Description_ASC | Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys | 18x9" w/ 5.00" Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys | 20x9" w/ 5.00" Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys | 17x8.5" w/ 5.75" Backspace / 25mm Offset |
| Description_ASC | TECH NOTE: Also requires installation of part numbers 48710E and 43501 |
| Description_ASC | TECH NOTE: Bronco Everglades will have lift height range of 1.5-2.5" over stock |
| Description_ASC | TECH NOTE: Due to increased wheel travel and lift height provided by these coilovers, ICON upper control arms with Delta Joint Pro, part numbers 48400DJ or 48500DJ, are recommended. Other aftermarket front upper control arms may not be compatible and it is the duty of the installer to verify fitment. Failure to cycle suspension and check for ball joint bind issues may lead to component failure and/or injury. |
| Description_ASC | TECH NOTE: Fitment testing done with ICON & OE steering components. Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible. |
| Description_ASC | TECH NOTE: Not compatible with Bronco Raptor |
| Description_DEF | Coilover Spring and Shock Assembly |
| Description_DES | 21-UP BRONCO FRONT 2.5 VS RR CDEV COILOVER KIT |
| Description_EXT | 2021-UP FORD BRONCO FRONT 2.5 VS REMOTE RESERVOIR COILOVER KIT WITH CDEV |
| Description_FAB | 100% Bolt-on - no drilling, cutting or welding necessary for installation |
| Description_FAB | 6061 Aircraft grade aluminum CNC machined components |
| Description_FAB | Adjustable up to 3-4" of front lift height on non-Sasquatch or 2-3” of front lift on Sasquatch Broncos |
| Description_FAB | Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts |
| Description_FAB | FK rod end bearings for extended longevity and minimal deflection |
| Description_FAB | Fully rebuildable and re-tunable |
| Description_FAB | High strength alloy CNC machined lower bar pin |
| Description_FAB | ICON engineered coil springs |
| Description_FAB | ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes |
| Description_FAB | ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC) |
| Description_FAB | Increased wheel travel (up to 11.5”) and ride quality over stock |
| Description_FAB | Remote reservoirs maintain cooler operating temperatures during extended off-road use |
| Description_FAB | Vehicle specific tuned for superior shock damping and control |
| Description_INV | BRONCO FRONT 2.5 RR CDEV COILOVER KIT |
| Description_MKT | ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDEV are the ideal upgrade for the front end of the 2021-UP Ford Bronco. These adjustable coilovers allow up to 3-4” of lift height adjustability on Broncos without the Sasquatch package or 2-3” of lift over stock Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Electronic Valves (CDEV) are included to allow for lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the CDEV at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. ICON 2.5 Series rear coilovers with CDEV and matching IIC module are required for installation but vehicle control will be actively balanced front to rear, resulting in the best overall driving experience for your Ford Bronco. |
| Description_SHO | CDEV COILOVER KIT |
| Description_TRA | ICON 2021-Up Ford Bronco, Front, 1.5-4” Lift, 2.5 VS RR/CDEV Coilover Kit, 48700E |
| Grade Type | Performance |
| height | 7.0 |
| length | 27.0 |
| LTL | N |
| Material | Aluminum |
| Material | Steel |
| Maximum Lift | 4 |
| Remote Reservoir | Yes |
| Shaft Diameter | 0.875 |
| Spring Color | Black |
| Spring Material | Steel |
| Title | 21-UP BRONCO FRONT 2.5 VS RR CDEV COILOVER KIT |
| weight | 52.0 |
| width | 13.0 |
