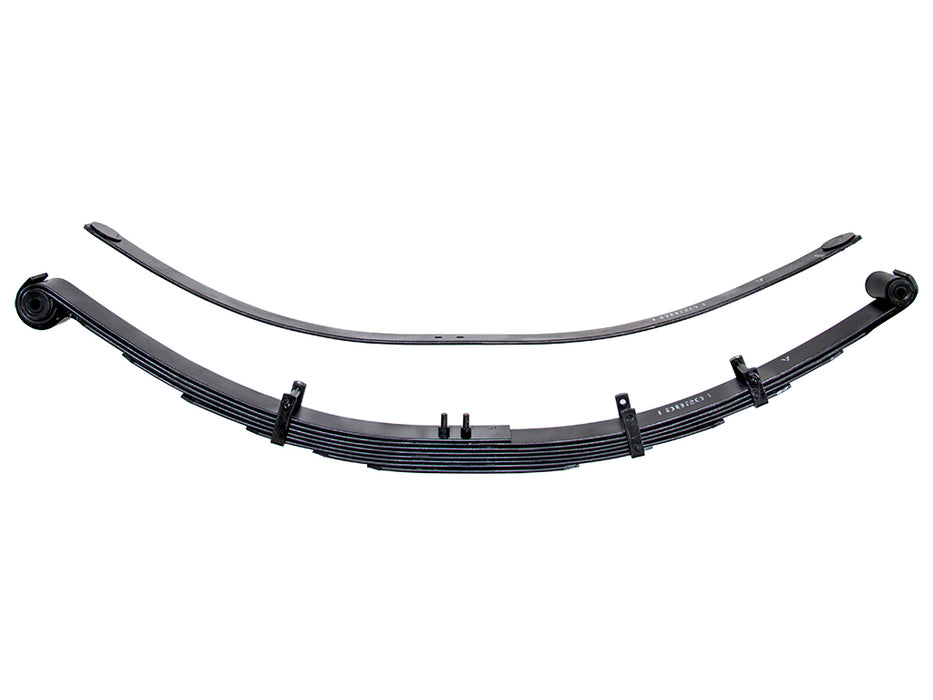

ICON Vehicle Dynamics 198501 10-14 RAPTOR MULTI RATE RXT LEAF PACK W/ ADD IN LEAF
SKU ds_FRDK_198501
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$1,134.64
-
Original price
$1,134.64
Original price
$1,134.64
$1,134.64
$1,134.64
-
$1,134.64
Current price
$1,134.64
Availability:
4+ in stock
Description
This ICON user-adjustable multi-rate leaf pack features tip inserts and leaf separators to reduce friction and increase ride comfort, while a military wrapped front eyelet improves durability and strength.
Specifications
| Description_ASC | Hardware kit part # 95220H also required for installation (sold separately) |
| Description_ASC | These leaf springs are sold individually. A quantity of 2 are required per vehicle. |
| Description_ASM | ICON 10-14 RAPTOR MULTI RATE RXT LEAF PACK W/ ADD IN LEAF |
| Description_DEF | Leaf Spring Kit |
| Description_DES | 10-14 RAPTOR MULTI RATE RXT LEAF PACK W/ ADD IN LEAF |
| Description_EXT | This ICON user-adjustable multi-rate leaf pack features tip inserts and leaf separators to reduce friction and increase ride comfort, while a military wrapped front eyelet improves durability and strength. |
| Description_FAB | 3 User-adjustable spring rates for unique setups or added weight |
| Description_FAB | Bumpstop extensions included for use when no aftermarket bumpstop kit is installed |
| Description_FAB | New Ford OE front spring eye bolts included for easy removal and re-installation of springs |
| Description_FAB | OE style bonded rubber bushings that are maintenance free and do not squeak |
| Description_FAB | Rebound leaf reduces severe axle wrap |
| Description_FAB | Tip inserts and leaf separators to reduce friction and improve ride comfort |
| Description_FAB | Triple military wrap front eyelet and rear half wrap for increased durability and safety |
| Description_INV | 198501 |
| Description_MKT | +0.75" Lift over stock |
| Description_MKT | +0.75" Lift over stock w/ 300lb constant load |
| Description_MKT | +0.75" lift over stock w/ 600lb constant load |
| Description_MKT | +1.25" Lift over stock |
| Description_MKT | +1.75" lift over stock |
| Description_MKT | 10% Rate over standard configuration |
| Description_MKT | 20% Rate over standard Configuration |
| Description_MKT | Rate Configuration Info: |
| Description_MKT | Rate Option #1 |
| Description_MKT | Rate Option #2 |
| Description_MKT | Standard |
| Description_MKT | The ICON Ford Raptor RXT multi-rate leaf pack offers a major performance gain for almost every Raptor setup imaginable. Features like 3 user-configurable rate options, tip inserts, and leaf separators add to ride comfort while a triple military wrapped front and rear half wrapped eyelet increases durability and strength of the leaf spring. A rebound leaf was added to reduce the axle wrap of the Raptor, which addresses another issue that has been found through ICON's extensive testing. To increase the ride quality of the truck and gain additional droop travel when the full ICON RXT rear system is installed, the spring rate was reduced slightly from the OE components. While most Raptor owners will embrace this, there are those who have outfitted their trucks with a significant amount of weight in the form of a chase rack, spare tires and parts, or other additions. Understanding this, the leaf pack was designed with an additional leaf (included with kit) that can be exchanged or added to the pack, yielding an additional 10% or 20% spring rate that will h andle heavier vehicles. |
| Description_SHO | RAPTOR RXT SPRINGS |
| Description_TRA | ICON 2010-14 Ford Raptor, Multi Rate RTX Leaf Pack Spring w/Add In Leaf, 198501 |
| height | 10.0 |
| length | 48.0 |
| LTL | N |
| weight | 104.0 |
| width | 48.0 |
