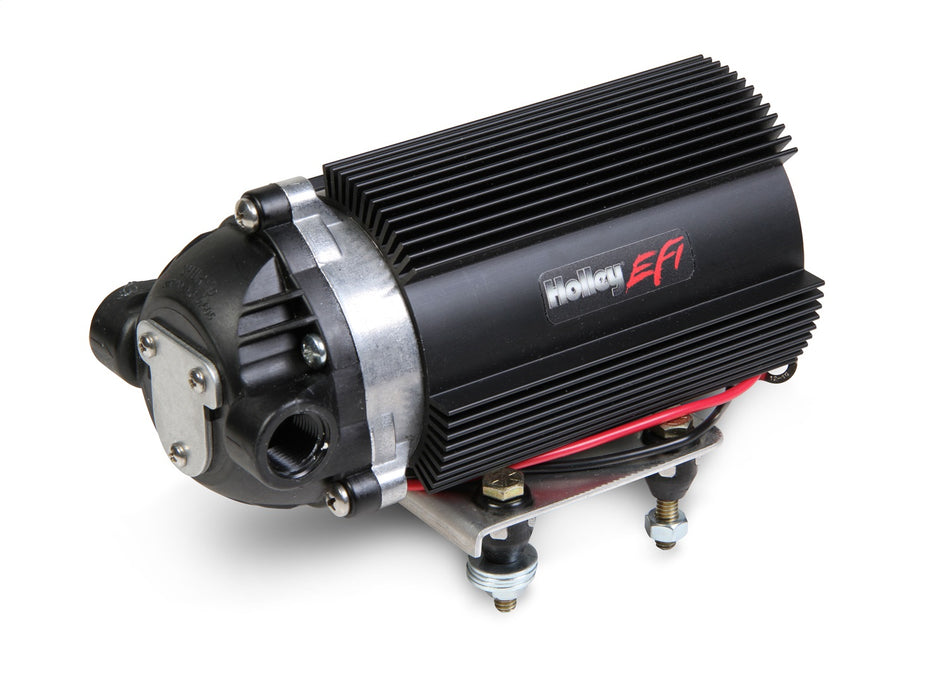

Holley EFI 557-100 Water/Methanol Injection Pump
by Holley EFI
SKU ds_BBVL_557-100
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$513.54
-
Original price
$513.54
Original price
$513.54
$513.54
$513.54
-
$513.54
Current price
$513.54
Availability:
Only 1 left!
Description
Take your forced induction ride to the next level with a Holley water/meth injection system! Integrated into the Holley HP and Dominator EFI Systems is the capability to control water/methanol injection allowing you safely run on lower octane pump gas!What makes the Holley water/methanol system unique and light years ahead of competitive systems is that the solenoid flow has been characterized within the ECU. Program in an exact flow amount into the software, and that flow is injected into the engine. This is critical to ensure that neither too little (causing engine damage), nor too much (causing large loss in power) water/methanol mix is injected into the engine. Select the exact percentage of water/methanol mix to be delivered vs. the percentage of fuel flow present, at any RPM and load. This makes tuning a very simple and accurate process. Holley EFI can be configured to drive up to two solenoids. All components are designed to be compatible with water/methanol mix of up to 50 percent methanol. The Water/Meth solenoids are run by an injector driver output. If an extra output is not available (as would be the case on a HP ECU driving 8 injectors), PN 554-113 can be purchased that can be driven by a low side PWM output.
Resources
Installation InstructionsSpecifications
| Amperage Draw | 7.5 |
| Description_ASC | Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations |
| Description_DEF | Water / Methanol Injection Pump |
| Description_DES | Water/Methanol Injection Pump |
| Description_EXT | Water/Methanol Injection Pump; 3/8 in. - 18NPT Inlet/Outlet; 7.5A At 140 psi.; 145 psi. Max Pressure; |
| Description_FAB | Installation Kit |
| Description_FAB | Water/Methanol Injection Pump |
| Description_INV | WM PUMP |
| Description_MKT | Take your forced induction ride to the next level with a Holley water/meth injection system! Integrated into the Holley HP and Dominator EFI Systems is the capability to control water/methanol injection allowing you safely run on lower octane pump gas!What makes the Holley water/methanol system unique and light years ahead of competitive systems is that the solenoid flow has been characterized within the ECU. Program in an exact flow amount into the software, and that flow is injected into the engine. This is critical to ensure that neither too little (causing engine damage), nor too much (causing large loss in power) water/methanol mix is injected into the engine. Select the exact percentage of water/methanol mix to be delivered vs. the percentage of fuel flow present, at any RPM and load. This makes tuning a very simple and accurate process. Holley EFI can be configured to drive up to two solenoids. All components are designed to be compatible with water/methanol mix of up to 50 percent methanol. The Water/Meth solenoids are run by an injector driver output. If an extra output is not available (as would be the case on a HP ECU driving 8 injectors), PN 554-113 can be purchased that can be driven by a low side PWM output. |
| Description_MKT | Take your forced induction ride to the next level with a Holley water/meth injection system! Integrated into the Holley HP and Dominator EFI Systems is the capability to control water/methanol injection, allowing you to safely run on lower octane pump gas! What makes the Holley water/methanol system unique and light years ahead of competitive systems, is that the solenoid flow has been characterized within the ECU. Program in an exact flow amount into the software, and that flow is injected into the engine. This is critical to ensure that neither too little (causing engine damage), nor too much (causing a large loss in power) water/methanol mix is injected into the engine. Select the exact percentage of water/methanol mix to be delivered vs. the percentage of fuel flow present, at any RPM and load. This makes tuning a very simple and accurate process. All components are designed to be compatible with water/methanol mix of up to 50% methanol. The Water/Meth solenoids are run by an injector driver output. If an extra output is not available (as would be the case on a HP ECU driving 8 injectors), PN 554-115 can be purchased that can be driven by a low side PWM output. |
| Description_SHO | Wtr/MthlInjPump |
| height | 4.3 |
| Inlet Size | 0.375 in. - 18 NPT |
| length | 5.9 |
| Maximum PSI | 145 |
| Outlet Size | 0.375 in. - 18 NPT |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| weight | 4.55 |
| width | 4.4 |
