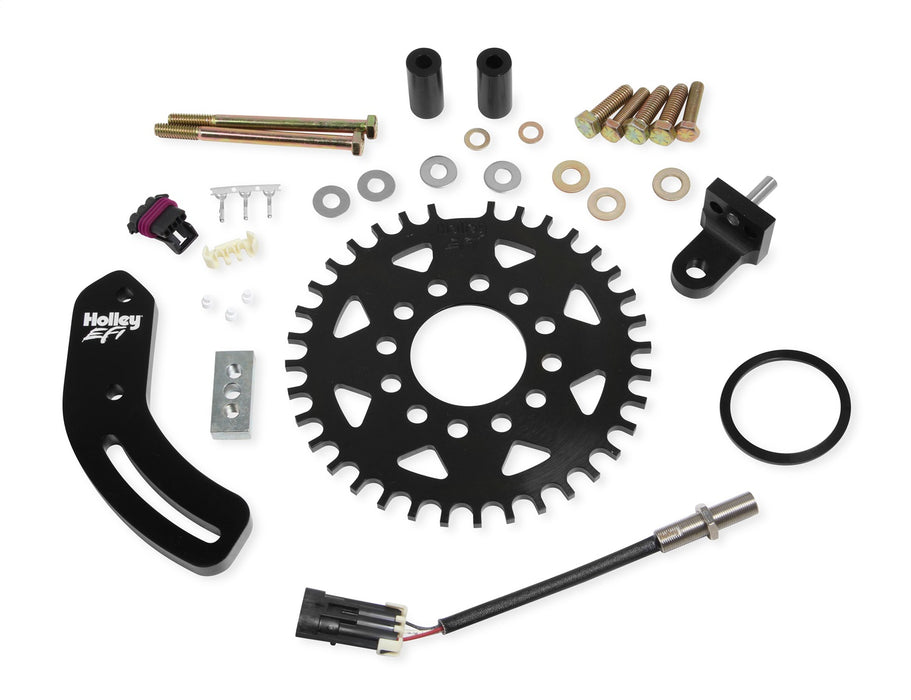

Holley EFI 556-115 Crank Trigger Kit
by Holley EFI
SKU ds_BBVL_556-115
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$913.30
-
Original price
$913.30
Original price
$913.30
$913.30
$913.30
-
$913.30
Current price
$913.30
Availability:
Only 3 left!
Description
Trigger wheel and sensor kit-precision engineered and manufactured with tight tolerances, this wheel is designed to be installed on the crank pulley/harmonic balancer and offers unmatched timing stability and accuracy.
Resources
Installation InstructionsSpecifications
| Description_ASC | Holley Performance Emission Code 4: This part is legal for sale or use on Racing Use Only Vehicles. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle |
| Description_DEF | Ignition Crank Trigger Kit |
| Description_DES | Crank Trigger Kit |
| Description_EXT | Crank Trigger Kit; 7.25 in. Wheel; 36-1 Tooth; Incl. Custom 3 Wire/Ferrous Target/Hall Effect Sensor w/M12X1mm Threads; |
| Description_FAB | All Grade 8 & Mil. Spec Mounting Hardware |
| Description_FAB | Black Zinc Oxide Finish For Corrosion Resistance/Striking Looks |
| Description_FAB | Crank Wheel Centers Off Of The Balance Hub No Centering Ring |
| Description_FAB | Mount Brackets w/Black Anodized Finish/Laser Etched EFI Logo |
| Description_FAB | w/M12X1Mm Threads For Finer Gap Adjustment |
| Description_INV | CRANK TRIGGER KIT; 7.25 INCH SBF 36-1 |
| Description_MKT | Holleys EFI Crank Trigger Kit is engineered to provide an accurate crank speed & position signal to Holley EFI systems in the most-demanding, high horsepower, racing applications. Crank position is measured every 10 degrees as opposed to every 45 degrees for a standard 4-Magnet, MSD "style" Crank trigger. It is designed for use on SBF applications using a standard ATI or Fluidamper "style" balancer up to 7-1/4 in. in diameter. |
| Description_MKT | Trigger wheel and sensor kit-precision engineered and manufactured with tight tolerances, this wheel is designed to be installed on the crank pulley/harmonic balancer and offers unmatched timing stability and accuracy. |
| Description_SHO | CkshftTriggerKt |
| Diameter (in.) | 7.250 in. |
| finish | Black Zinc Oxide |
| height | 2.35 |
| length | 10.75 |
| WARNING CA Proposition 65 | No |
| weight | 3.62 |
| width | 10.5 |
