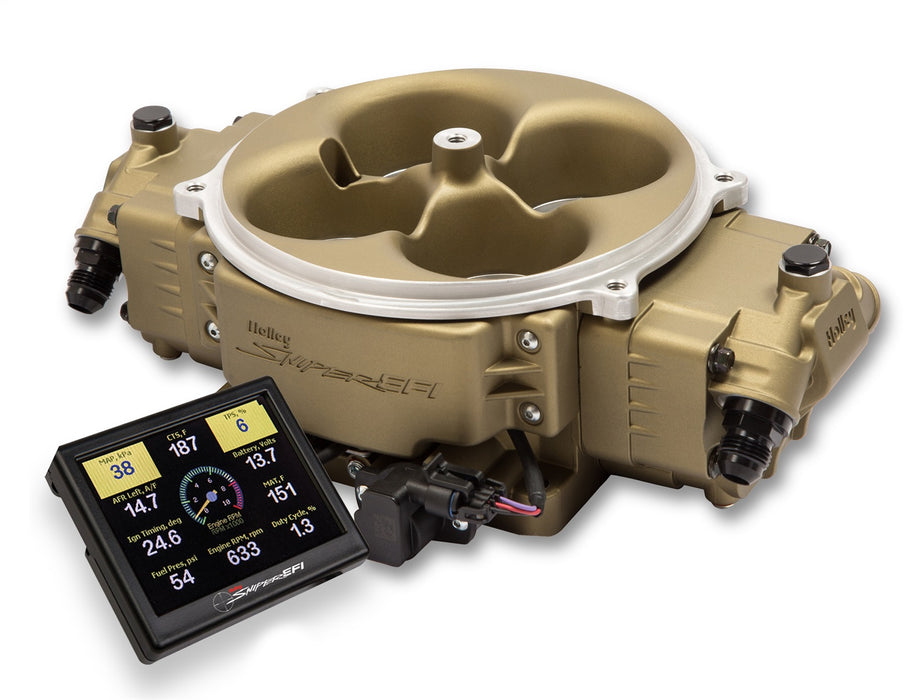

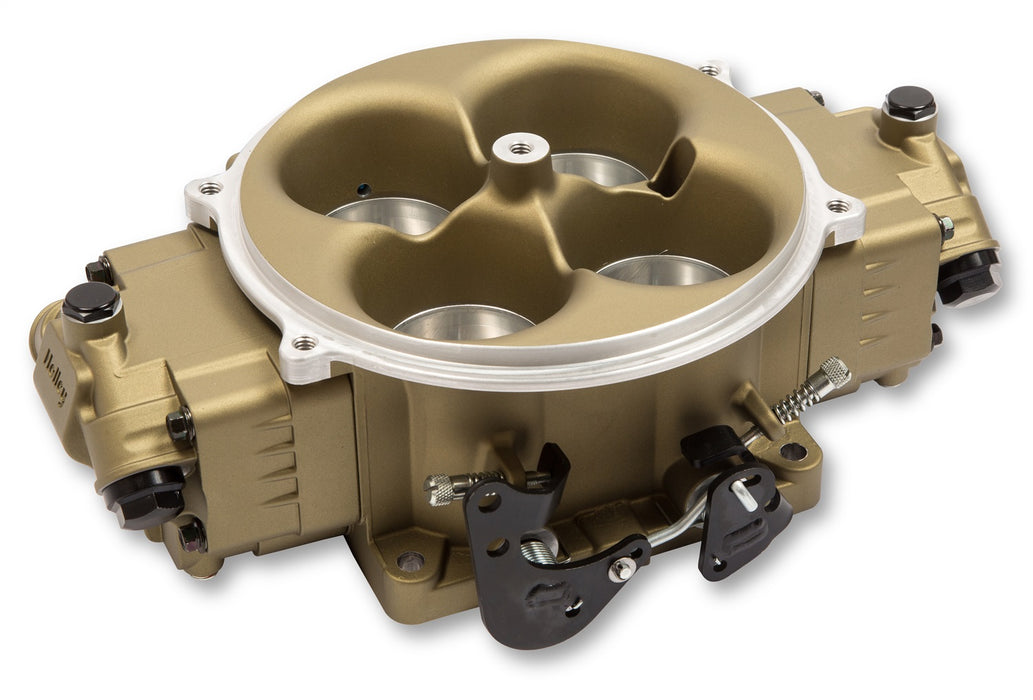

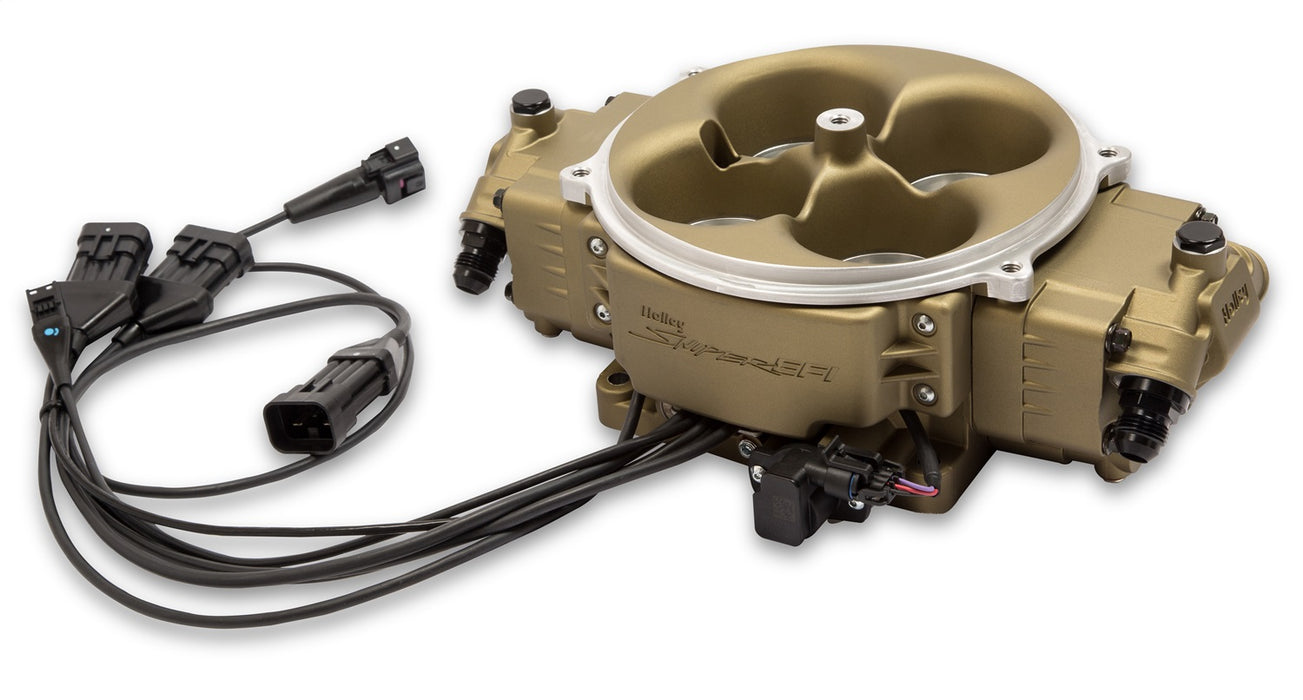

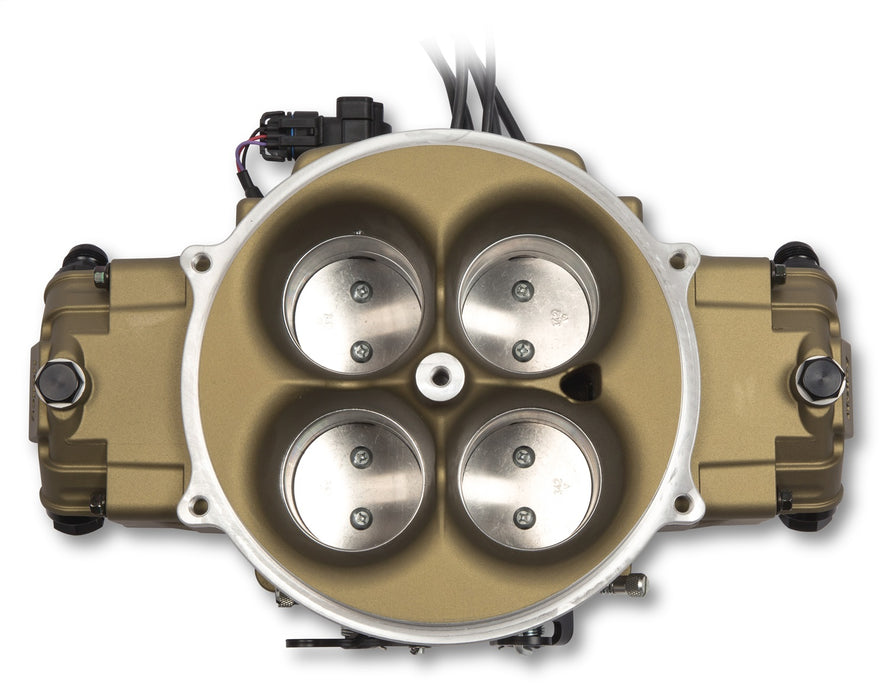

Holley EFI 550-843 Sniper EFI Stealth 4500 Throttle Body System
by Holley EFI
SKU ds_BBVL_550-843
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$3,014.84
-
Original price
$3,014.84
Original price
$3,014.84
$3,104.65
$3,104.65
-
$3,104.65
Current price
$3,104.65
Availability:
Out of stock
Description
The Sniper Stealth 4500 EFI system features 8, 100LB/HR Fuel Injectors capable of supporting 800 to 1500 HP naturally aspirated, or 800-1250 HP on forced induction applications. The Sniper Stealth 4500 features multiple Input/Output options for sensor inputs and switched outputs to control external relays. This system comes with a USB to CAN tuning cable and free downloadable Sniper EFI Software give you unlimited control of your engine. * Built-in Single Stage Wet or Dry progressive nitrous control/Three Programmable 0-5V Sensor Inputs for Oil/Fuel/Dome or Nitrous Pressure or other critical information/Six Programmable Ground Outputs, Five programmable ground inputs. These can be used to trigger or control external devices such as nitrous solenoids, boost control solenoids. Or to provide the ECU with an Input to turn on function such as an ignition timing/One +5v Reference Output - +5V Power Supply for 0-5v Sensors, One Sensor Ground – Ground supply for 0-5v Sensors/Throttle body mounted ECU – no extra boxes to mount/Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition & RPM)/Required external fuel pressure regulator, 12-848 is recommended/Customizable secondary fuel pump output (TPS, RPM or Boost enabled)/User friendly Boost Control with handheld adjustability/Free Software included comprehensive datalogging tool to help you maximize the performance of your engine/Real-time datalogging to the included 3.5" Touch Screen, allows you to save information to the SD card without needing a communication cable/Programmable Target Air Fuel Ratios per Boost level/Advanced boost control available via free Sniper EFI tuning software, including Boost vs RPM and Boost vs Time/OEM Style TPS/IAC, for years of dependable service/Included clamp-on oxygen sensor kit ensures a leak free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange/Patent Pending.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| CFM | 1440 |
| Description_ASC | Holley Performance Emission Code 3: This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles. The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles: 1965 and older U.S. manufactured California Certified vehicles/1967 and older U.S. manufactured Federally Certified vehicles/1967 and older Foreign manufactured vehicle. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle |
| Description_DEF | Fuel Injection Throttle Body |
| Description_DES | Sniper EFI Stealth 4500 Throttle Body System |
| Description_EXT | Sniper EFI Stealth 4500 Throttle Body System; 800-1500HP; 8 Injector; Incl. O2 and Coolant Temp Sensor/Gaskets/3.5 in. Touch Screen Controller/Harness/Hardware; Gold Finish; |
| Description_FAB | -8AN Fuel Inlets |
| Description_FAB | 2.125 Throttle Plate; Flow 1440 CFM |
| Description_FAB | Bosch LSU 4.9 Wideband O2 Sensor Provides Realtime Fuel Map Learn |
| Description_FAB | Compatible w/Draw or Blow Through Forced Induction Apps. |
| Description_FAB | Eight 100 lb../hr. Injectors |
| Description_FAB | Full Color Touchscreen for Initial Setup/Tuning/Gauge Displays |
| Description_FAB | Gen 3 Ultra Dominator Style 4 Bolt Air Cleaner Flange |
| Description_FAB | Integrated Ignition Timing Control |
| Description_FAB | Programmable Launch Control Via 2-Step/Timing Retard |
| Description_FAB | Self-Tuning ECU Means You Dont Have To Be A Computer/Tuning Wiz |
| Description_FAB | Simple Calibration Wizard - No Laptop Required |
| Description_FAB | Supports Up To 1500 HP NA Or 1250 HP Forced Induction |
| Description_INV | SNIPER STEALTH 4500 8-INJ; GOLD |
| Description_LAB | Proposition 65 |
| Description_MKT | Introducing the Sniper Stealth 4500 EFI System! Wanting to convert your Dragster or Pro-street vehicle to Fuel Injection? Look no further! The Sniper Stealth 4500 EFI system from Holley features 8, 100LB/HR Fuel Injectors capable of supporting 800 to 1500 HP naturally aspirated, or 800-1250 HP on forced induction applications. The Sniper Stealth 4500 also features multiple Input and Output options for sensor inputs and switched outputs to control external relays. This system also comes with a USB to CAN tuning cable and free downloadable Sniper EFI Software give you unlimited control of your engine |
| Description_MKT | The Sniper Stealth 4500 EFI system features 8, 100LB/HR Fuel Injectors capable of supporting 800 to 1500 HP naturally aspirated, or 800-1250 HP on forced induction applications. The Sniper Stealth 4500 features multiple Input/Output options for sensor inputs and switched outputs to control external relays. This system comes with a USB to CAN tuning cable and free downloadable Sniper EFI Software give you unlimited control of your engine. * Built-in Single Stage Wet or Dry progressive nitrous control/Three Programmable 0-5V Sensor Inputs for Oil/Fuel/Dome or Nitrous Pressure or other critical information/Six Programmable Ground Outputs, Five programmable ground inputs. These can be used to trigger or control external devices such as nitrous solenoids, boost control solenoids. Or to provide the ECU with an Input to turn on function such as an ignition timing/One +5v Reference Output - +5V Power Supply for 0-5v Sensors, One Sensor Ground – Ground supply for 0-5v Sensors/Throttle body mounted ECU – no extra boxes to mount/Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition & RPM)/Required external fuel pressure regulator, 12-848 is recommended/Customizable secondary fuel pump output (TPS, RPM or Boost enabled)/User friendly Boost Control with handheld adjustability/Free Software included comprehensive datalogging tool to help you maximize the performance of your engine/Real-time datalogging to the included 3.5" Touch Screen, allows you to save information to the SD card without needing a communication cable/Programmable Target Air Fuel Ratios per Boost level/Advanced boost control available via free Sniper EFI tuning software, including Boost vs RPM and Boost vs Time/OEM Style TPS/IAC, for years of dependable service/Included clamp-on oxygen sensor kit ensures a leak free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange/Patent Pending. |
| Description_SHO | TBdyAssy |
| Flange | 4500 |
| height | 9.5 |
| length | 14.5 |
| Throttle Bore | 2.125 in. |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| weight | 13.6 |
| width | 12.7 |
