Holley EFI 534-283 Hi-Flow EFI Fuel Rail Kit
by Holley EFI
SKU ds_BBVL_534-283
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$375.55
-
Original price
$375.55
Original price
$375.55
$375.55
$375.55
-
$375.55
Current price
$375.55
Availability:
Only 3 left!
Description

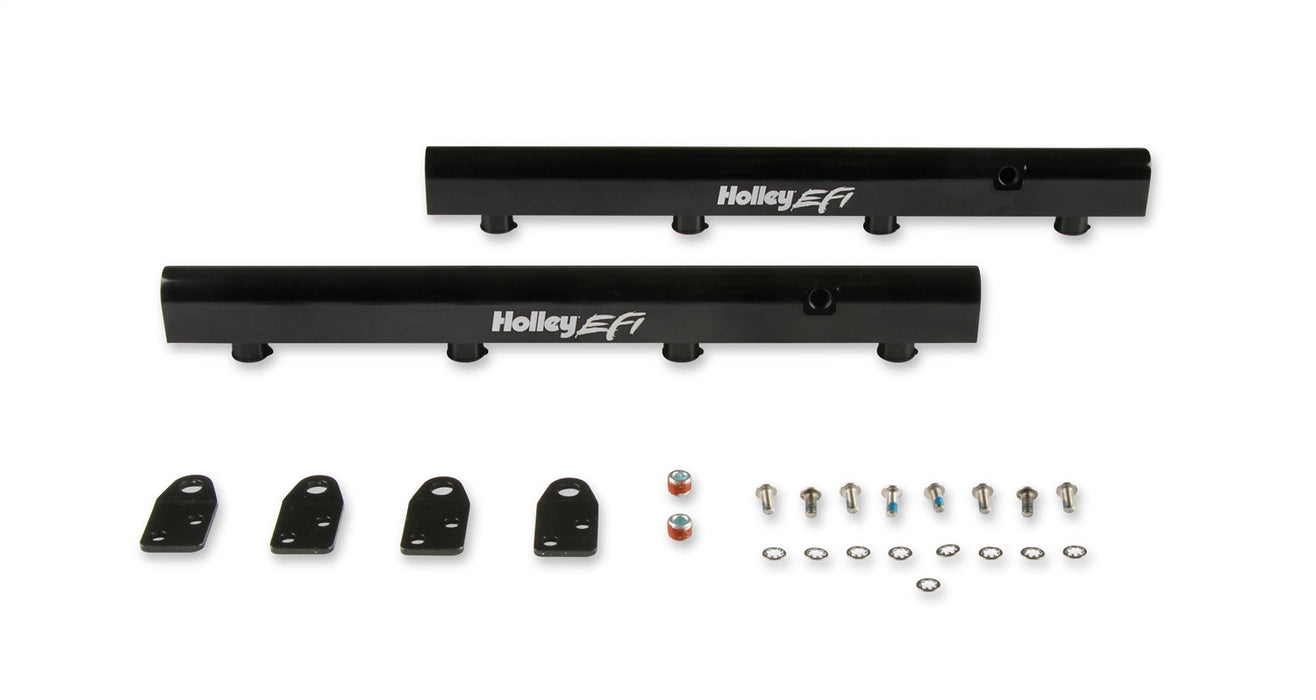

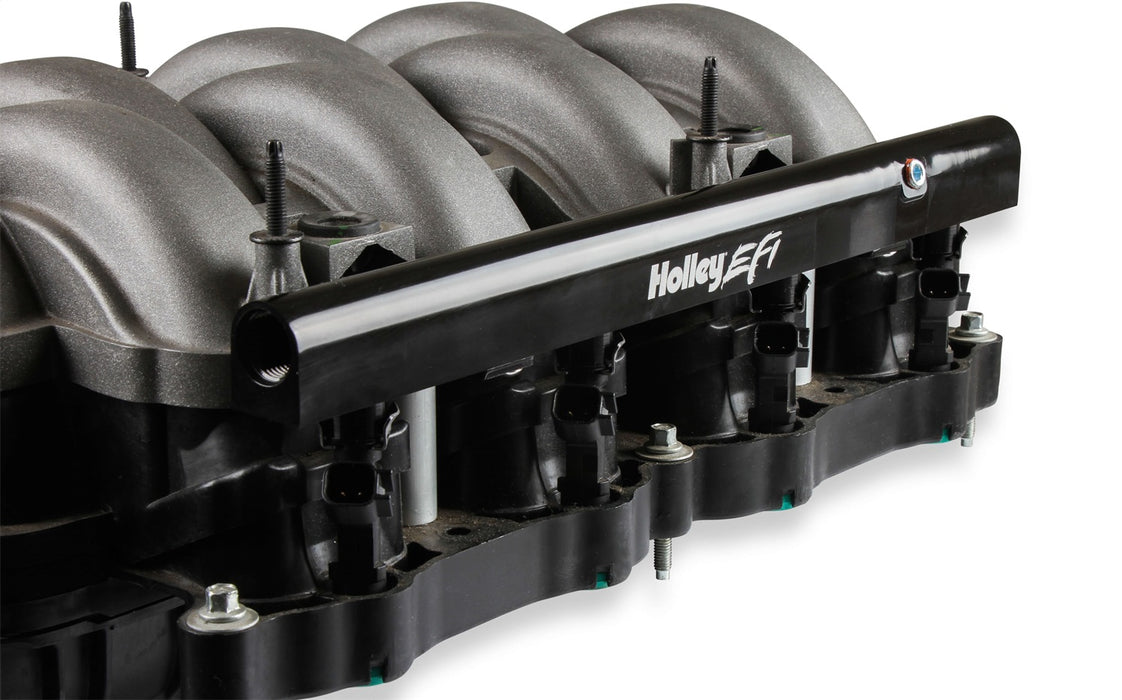

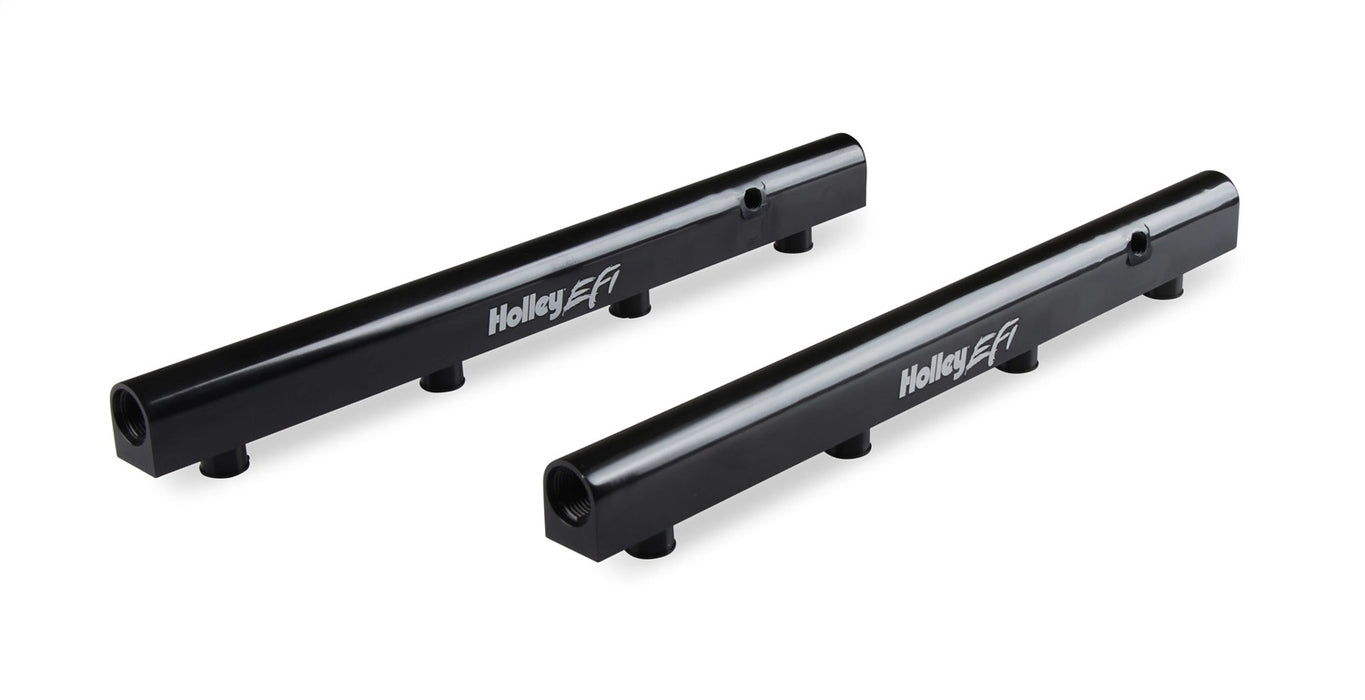

The new Hi-Flow billet fuel rails are a direct fit for all late model, 2011 and newer naturally aspirated Coyote engines (5.0 and 5.2) including Cobra Jet and Boss 302. This also includes the 2018 and newer direct injection engines. The fuel rails feature a 5/8" diameter fuel passage that provides the flow capacity for high horsepower applications. The black anodized rails have -8 ORB ports on each end and an 1/8" NPT port for a fuel gauge installation if you choose to do so. The rails are designed with the factory injector clip reliefs so that your factory injectors and retaining clips can be reused. The kit includes fuel rails, mounting brackets and required mounting hardware.
Specifications
| Description_ASC | Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations |
| Description_DEF | Fuel Injector Rail |
| Description_DES | Hi-Flow EFI Fuel Rail Kit |
| Description_EXT | Hi-Flow EFI Fuel Rail Kit; 5/8 in. Fuel Passage; -8 ORB Ports/1/8 in NPT Port; Incl. Mounting Brackets/Hardware; |
| Description_FAB | 1/8 NPT Gauge Ports Machined Directly Into Rail |
| Description_FAB | Clip Feature Retained So Factory Injector Clips Can Be Re-used |
| Description_FAB | Fit All 2011+ Naturally Aspirated Coyote Engines 5.0/5.2 L |
| Description_FAB | Machined Billet Extrusions w/Laser Etched Holley EFI Logo |
| Description_FAB | Mounting Brackets And Hardware Included |
| Description_INV | BILLET FUEL RAILS FORD COYOTE ENGINE |
| Description_MKT | The new Hi-Flow billet fuel rails are a direct fit for all late model, 2011 and newer naturally aspirated Coyote engines (5.0 and 5.2) including Cobra Jet and Boss 302. This also includes the 2018 and newer direct injection engines. The fuel rails feature a 5/8 in. diameter fuel passage that provides the flow capacity for high horsepower applications. The black anodized rails have -8 ORB ports on each end and an 1/8 in. NPT port for a fuel gauge installation if you choose to do so. The rails are designed with the factory injector clip reliefs so that your factory injectors and retaining clips can be reused. The kit includes fuel rails, mounting brackets and required mounting hardware. |
| Description_MKT | The new Hi-Flow billet fuel rails are a direct fit for all late model, 2011 and newer naturally aspirated Coyote engines (5.0 and 5.2) including Cobra Jet and Boss 302. This also includes the 2018 and newer direct injection engines. The fuel rails feature a 5/8" diameter fuel passage that provides the flow capacity for high horsepower applications. The black anodized rails have -8 ORB ports on each end and an 1/8" NPT port for a fuel gauge installation if you choose to do so. The rails are designed with the factory injector clip reliefs so that your factory injectors and retaining clips can be reused. The kit includes fuel rails, mounting brackets and required mounting hardware. |
| Description_SHO | Fuel Rail |
| height | 17.25 |
| length | 1.5 |
| weight | 3.75 |
| width | 5.0 |
