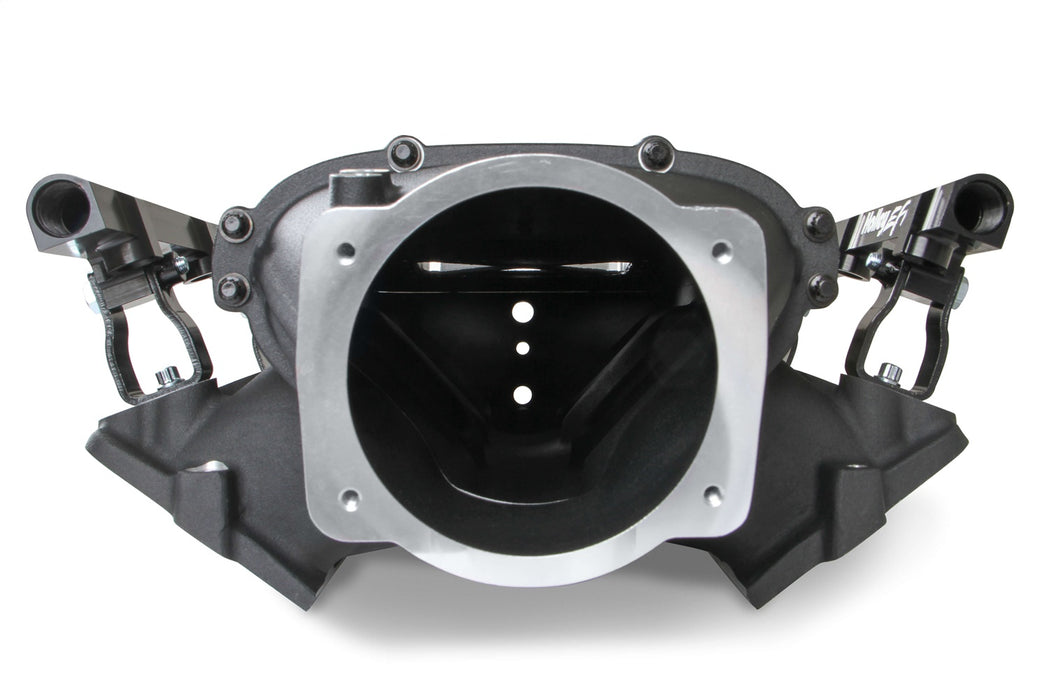

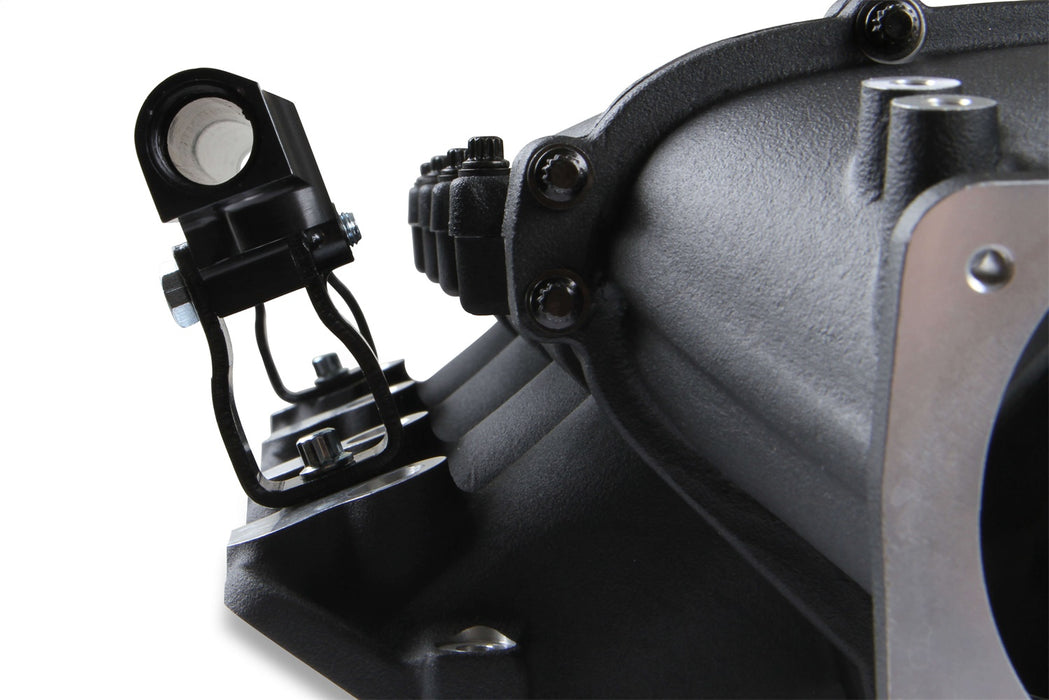

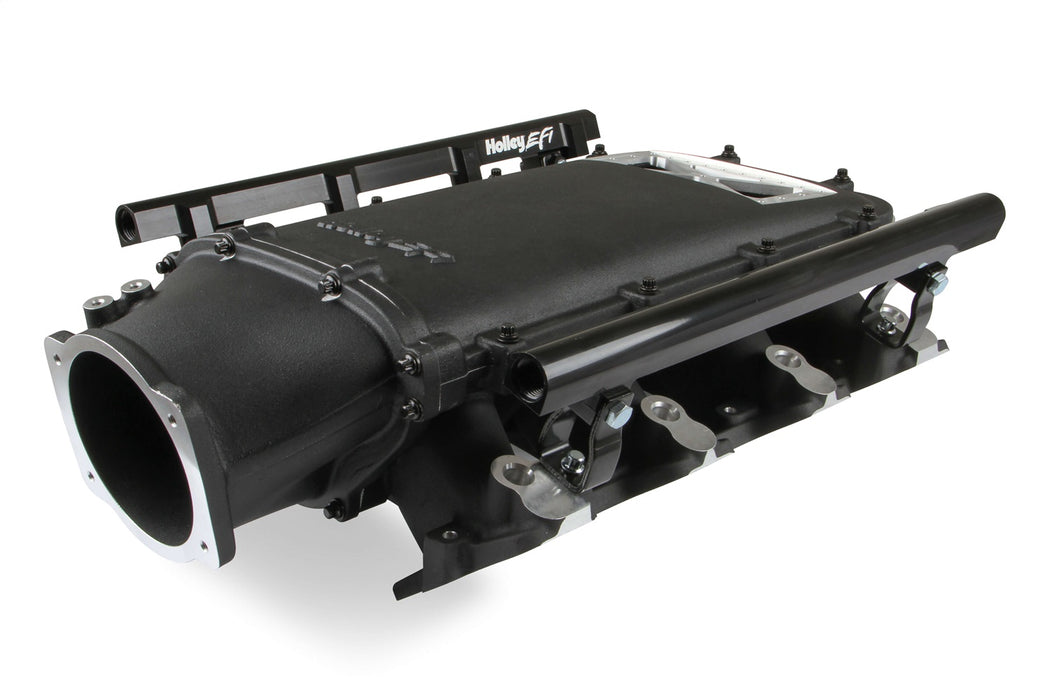

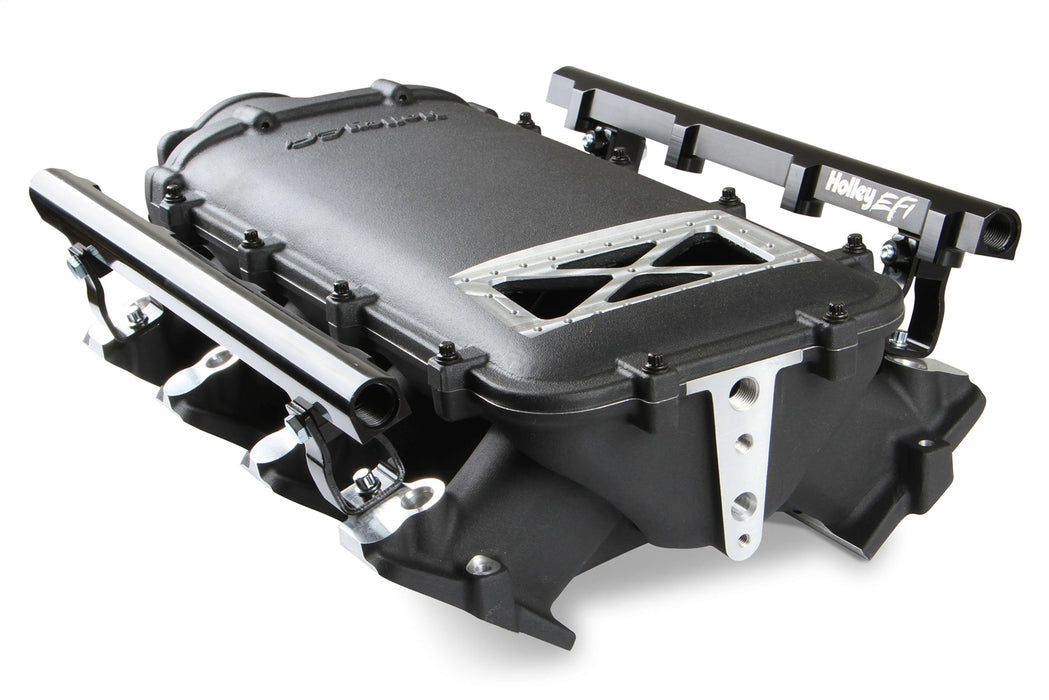

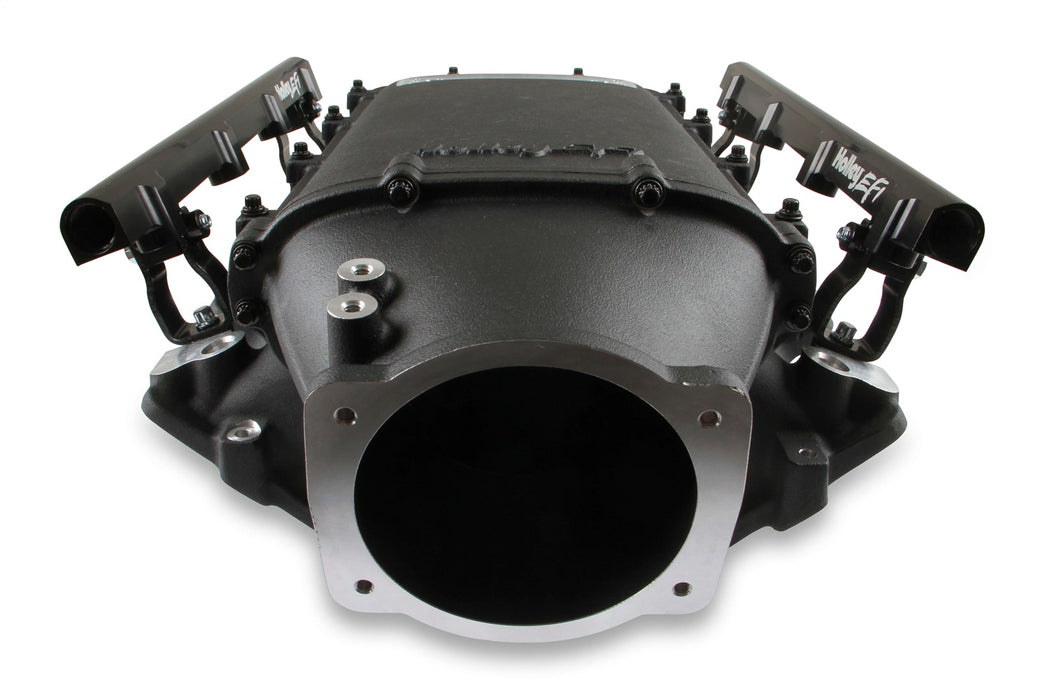

Holley EFI 300-623BK Holley EFI Lo-Ram Intake Manifold
by Holley EFI
SKU ds_BBVL_300-623BK
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,374.55
-
Original price
$1,374.55
Original price
$1,374.55
$1,415.15
$1,415.15
-
$1,415.15
Current price
$1,415.15
Availability:
Out of stock
Description
The Holley LS1/2/6 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. Plenum top is machined for a standard "large" 6-1/8" x 3-1/8" burst panel. SFI approved burst panels, burst panel frame sets, and gaskets may be purchased from various manufacturers such as Allstar Performance or Specialty Fasteners. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a lower overall height to fit under a stock or mildly modified hood in the front-feed configuration. The 300-623 Lo-Ram front-feed plenum entry was configured to provide a very low profile modular intake manifold suitable for turbocharged or centrifugally supercharged engines. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.
Specifications
| Cylinder Head Type | LS1/LS2/LS6 |
| Description_ASC | Holley Performance Emission Code 3: This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles. The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles: 1965 and older U.S. manufactured California Certified vehicles/1967 and older U.S. manufactured Federally Certified vehicles/1967 and older Foreign manufactured vehicle. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle |
| Description_DEF | Engine Intake Manifold |
| Description_DES | Holley EFI Lo-Ram Intake Manifold |
| Description_EXT | Holley EFI Lo-Ram Intake Manifold; Upper; Fits GM Engines w/LS1/2/6 Cathedral Ports Cylinder Heads; Front-Feed; w/Plenum Burst Plate Flange; Black Finish; |
| Description_FAB | Facilitates Custom Inlet Duct And Throttle Body Placement |
| Description_FAB | For Forced Induction Engines With Peak Power At 7000-8000 Rpm |
| Description_FAB | Front Entry Plenum Flange Allows Special Throttle Body Adapters |
| Description_FAB | High Volume Fuel Rails And Mounting Hardware Included |
| Description_FAB | Low Height To Fit Under A Stock Or Mildly Modified Hood |
| Description_FAB | Modular Design Allows Customization For User Configurations |
| Description_FAB | Plenum Top Is Machined For A Standard Large Burst Panel |
| Description_INV | KIT; INT. MANIFOLD; LS1 LO-RAM; BLACK |
| Description_MKT | The Holley LS1/2/6 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. Plenum top is machined for a standard "large" 6-1/8" x 3-1/8" burst panel. SFI approved burst panels, burst panel frame sets, and gaskets may be purchased from various manufacturers such as Allstar Performance or Specialty Fasteners. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a lower overall height to fit under a stock or mildly modified hood in the front-feed configuration. The 300-623 Lo-Ram front-feed plenum entry was configured to provide a very low profile modular intake manifold suitable for turbocharged or centrifugally supercharged engines. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors. |
| Description_MKT | The Holley LS1/2/6 Ultra Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. Plenum top is machined for a standard "large" 6-1/8 in. x 3-1/8 in. burst panel. SFI approved burst panels, burst panel frame sets, and gaskets may be purchased from various manufacturers such as Allstar Performance or Specialty Fasteners The Ultra Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a lower overall height to fit under a stock or mildly modified hood. The 300-623 Ultra Lo-Ram front-feed plenum entry was configured to provide a very low profile modular intake manifold suitable for turbocharged or centrifugally supercharged engines. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors. |
| Description_SHO | Intake Manifold |
| Engine Make/Size | Gen. III LS1/LS2/LS6 |
| height | 15.4 |
| length | 20.5 |
| Number of Carbs | None; For Fuel Injection |
| Position | Upper |
| RPM Range | 7000-8000 |
| Usage | Racing |
| WARNING CA Proposition 65 | No |
| weight | 26.74 |
| width | 15.4 |
