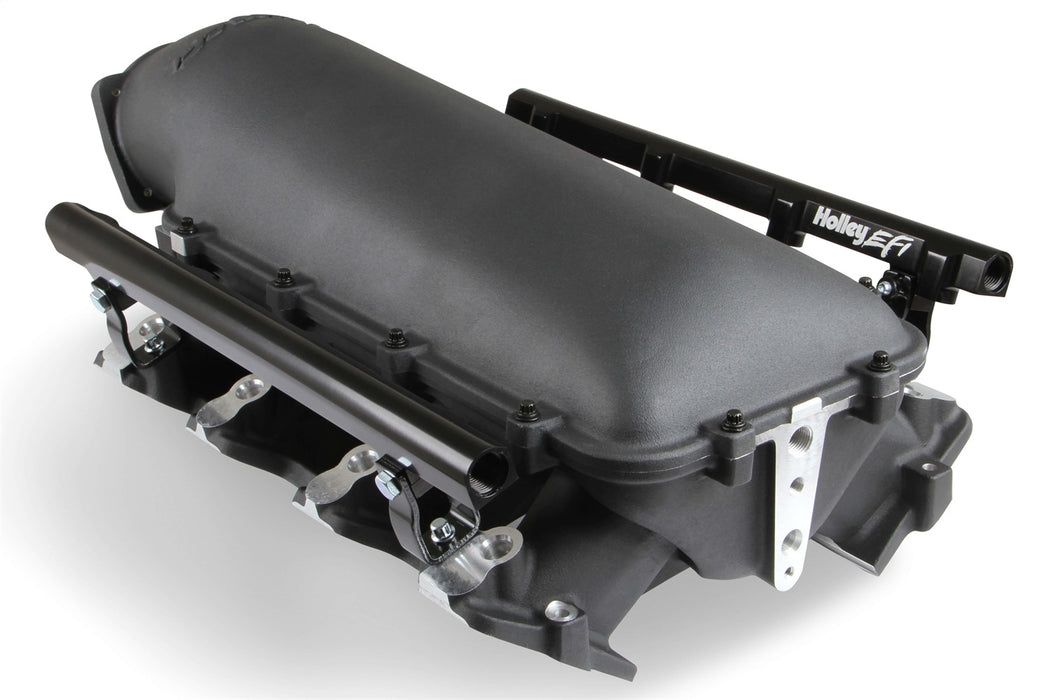

Holley EFI 300-620BK Holley EFI Modular Lo-Ram Intake Manifold
by Holley EFI
SKU ds_BBVL_300-620BK
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,457.83
-
Original price
$1,457.83
Original price
$1,457.83
$1,457.83
$1,457.83
-
$1,457.83
Current price
$1,457.83
Availability:
Out of stock
Description

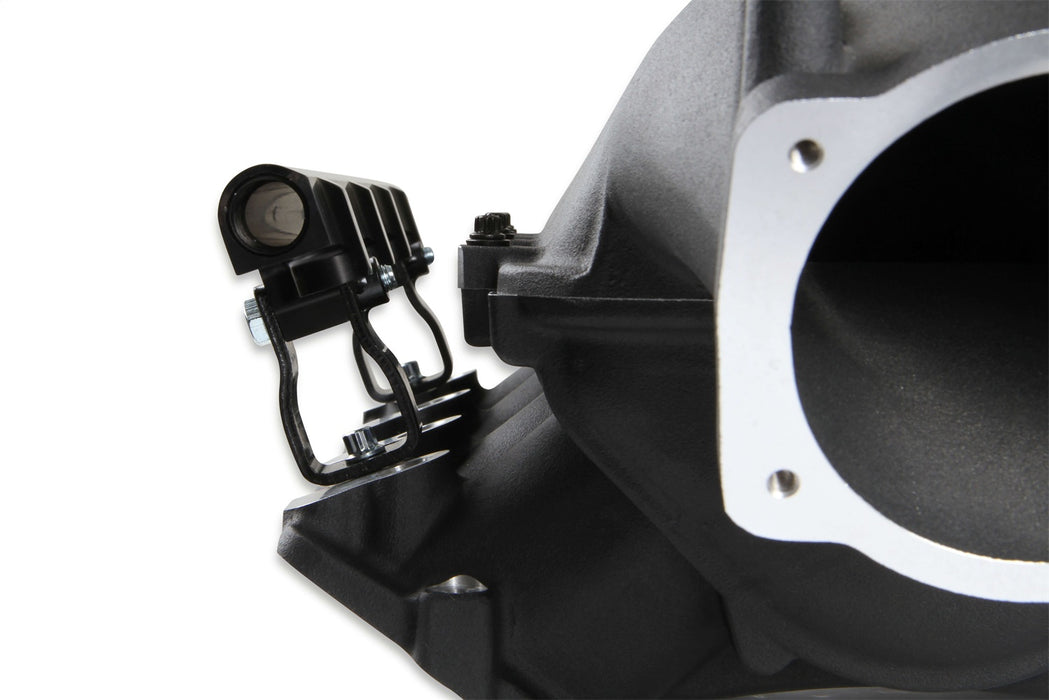

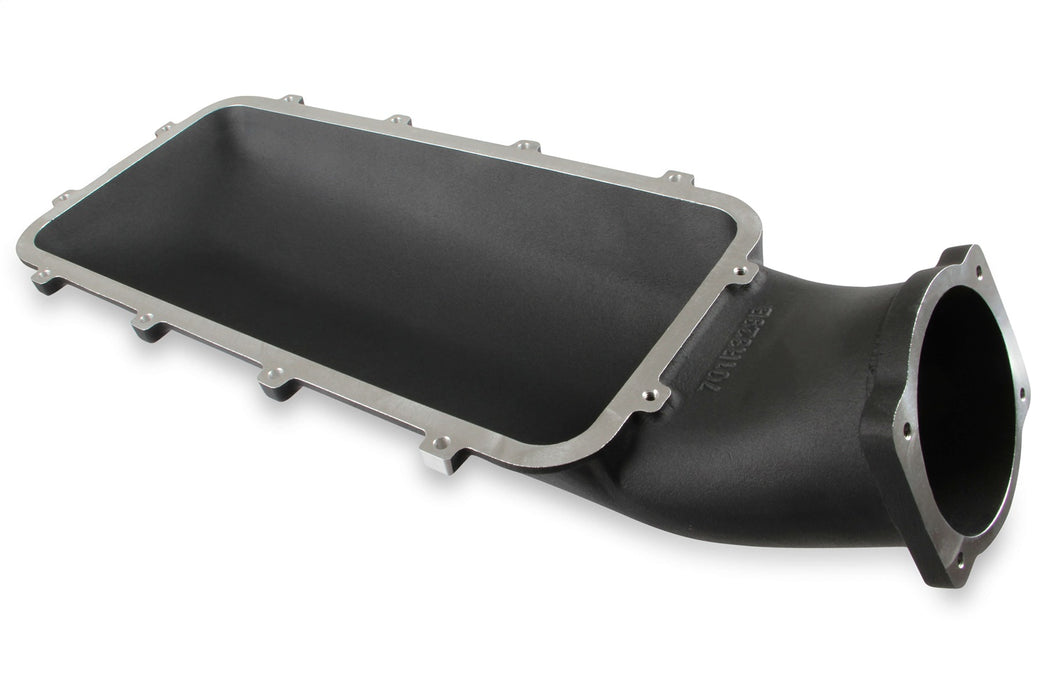

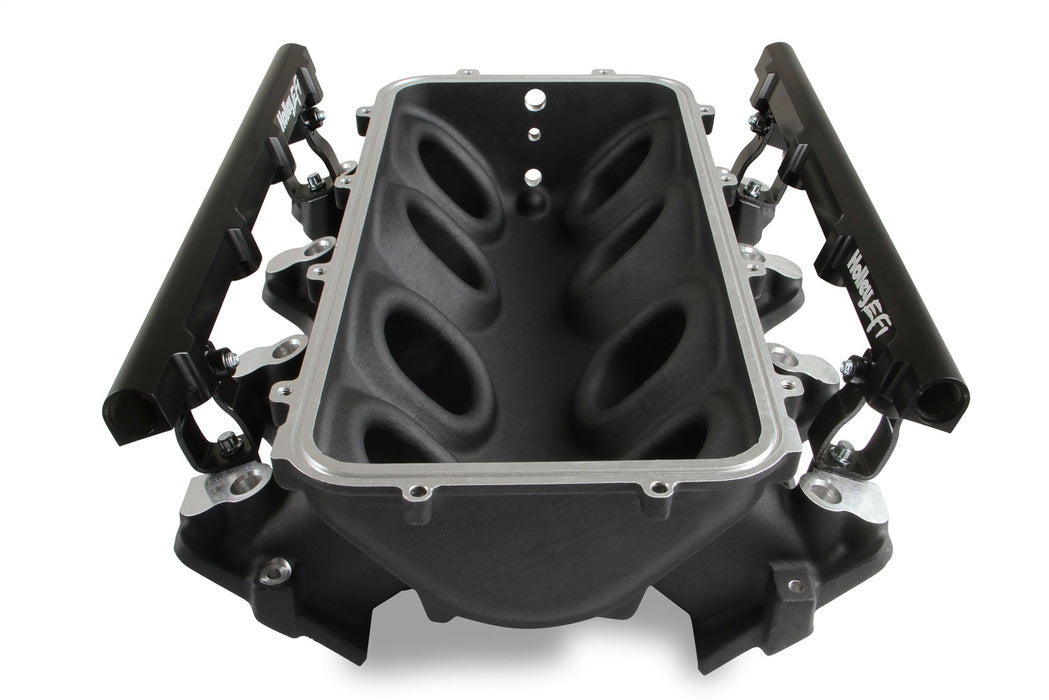

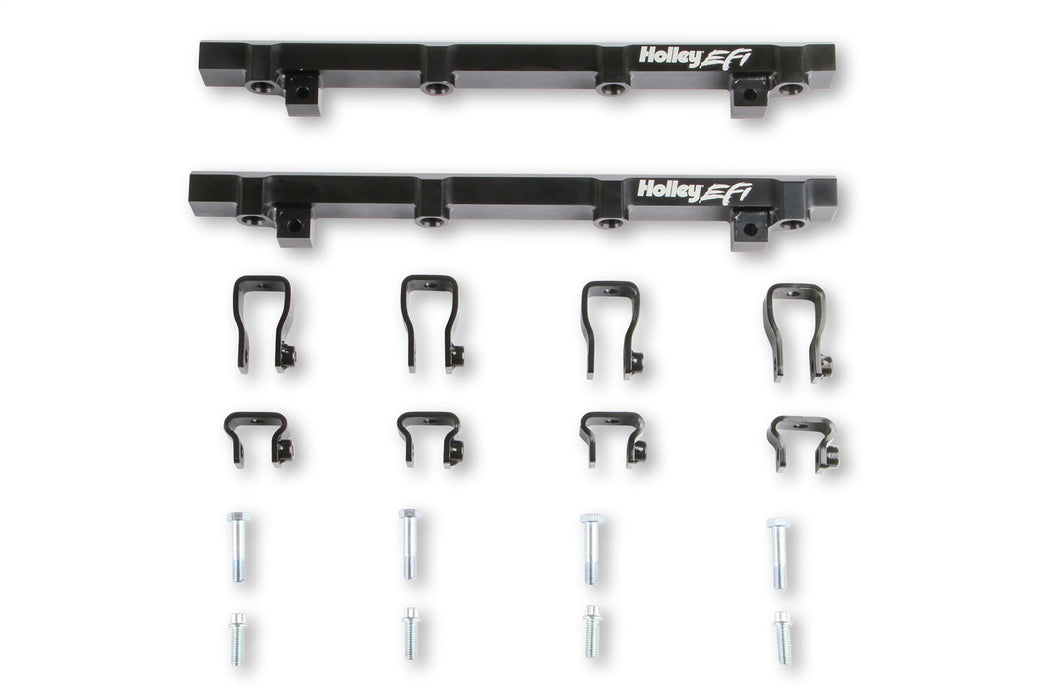

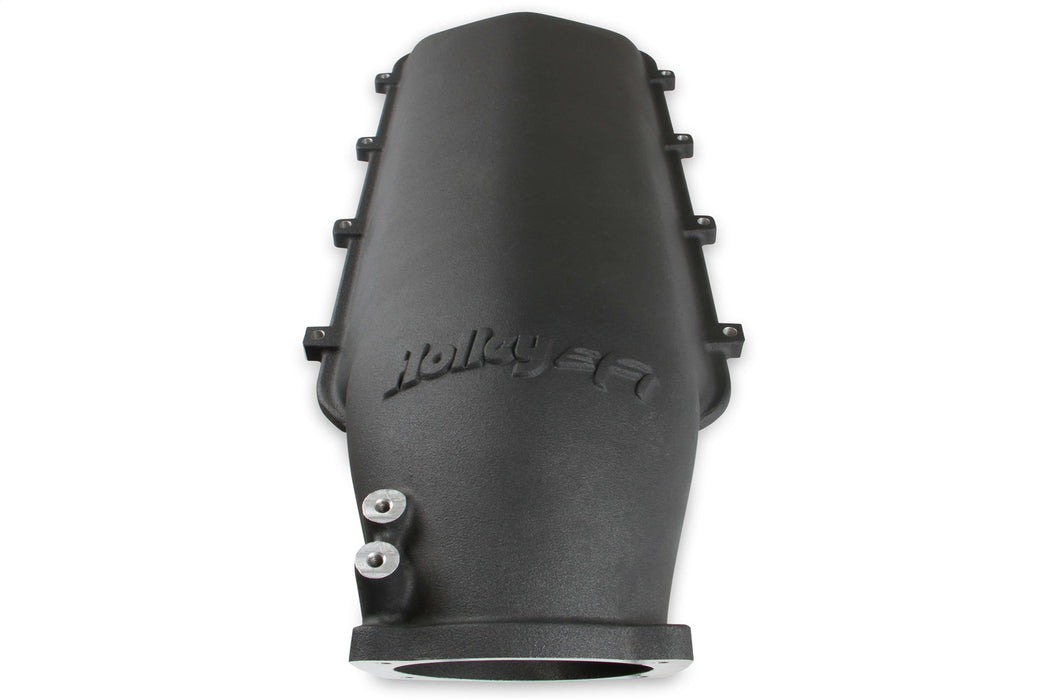

The Holley LS1/2/6 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration. The 300-620 top-feed plenum entry configuration is designed to allow the included Hi-Ram 105 mm plenum top to be fitted to a low-profile base intake manifold. The short runner, low-profile base intake manifold intended for forced induction applications was conceived to package with an air to water plenum mounted intercooler with a shorter overall height than possible with other existing intake manifolds. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.
Specifications
| Description_ASC | Holley Performance Emission Code 3: This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles. The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles: 1965 and older U.S. manufactured California Certified vehicles/1967 and older U.S. manufactured Federally Certified vehicles/1967 and older Foreign manufactured vehicle. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle |
| Description_ASM | Designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads |
| Description_DEF | Engine Intake Manifold |
| Description_DES | Holley EFI Modular Lo-Ram Intake Manifold |

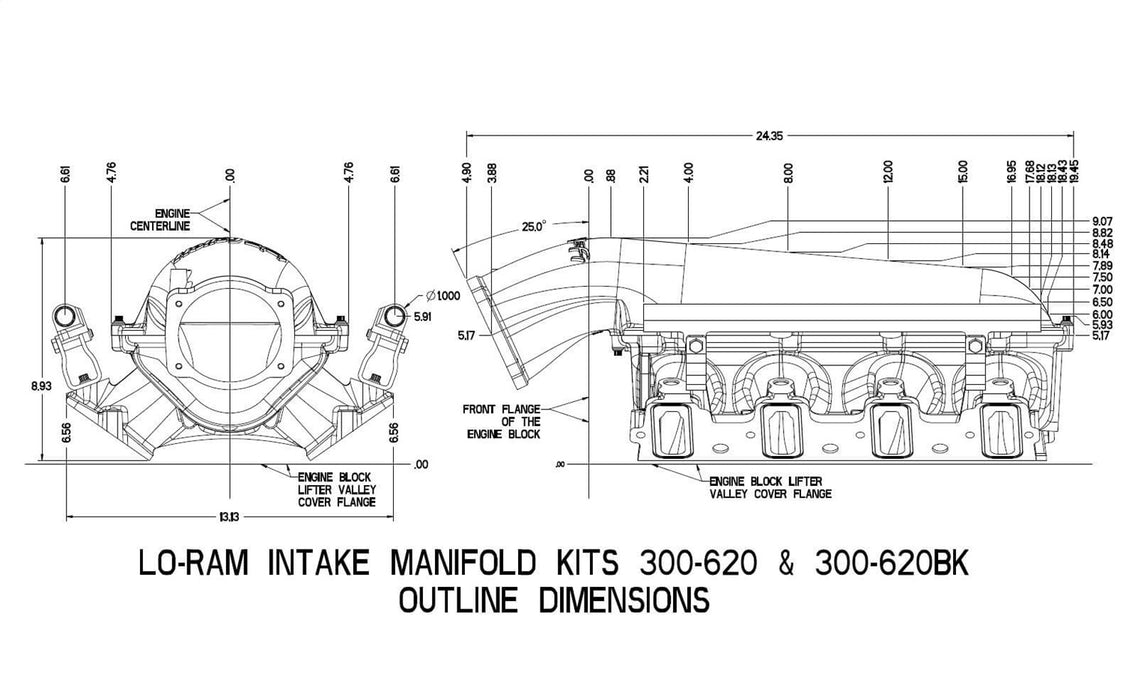

| Description_EXT | Holley EFI Modular Lo-Ram Intake Manifold; Upper; Top Feed Cast Black; 9.07 in. w/o Intercooler Front Height; For Use w/GM/LS1/LS2/LS6; |
| Description_FAB | Clears 4Th Gen Camaro/C5 Corvette Cowls/Hoods w/o Modification |
| Description_FAB | Custom Inlet Duct And Throttle Body Placement |
| Description_FAB | Fit Under A Stock Or Mildly Modified Hood In The Front-Feed |
| Description_FAB | For Forced Induction Engines With Peak Power At 7000-8000 Rpm |

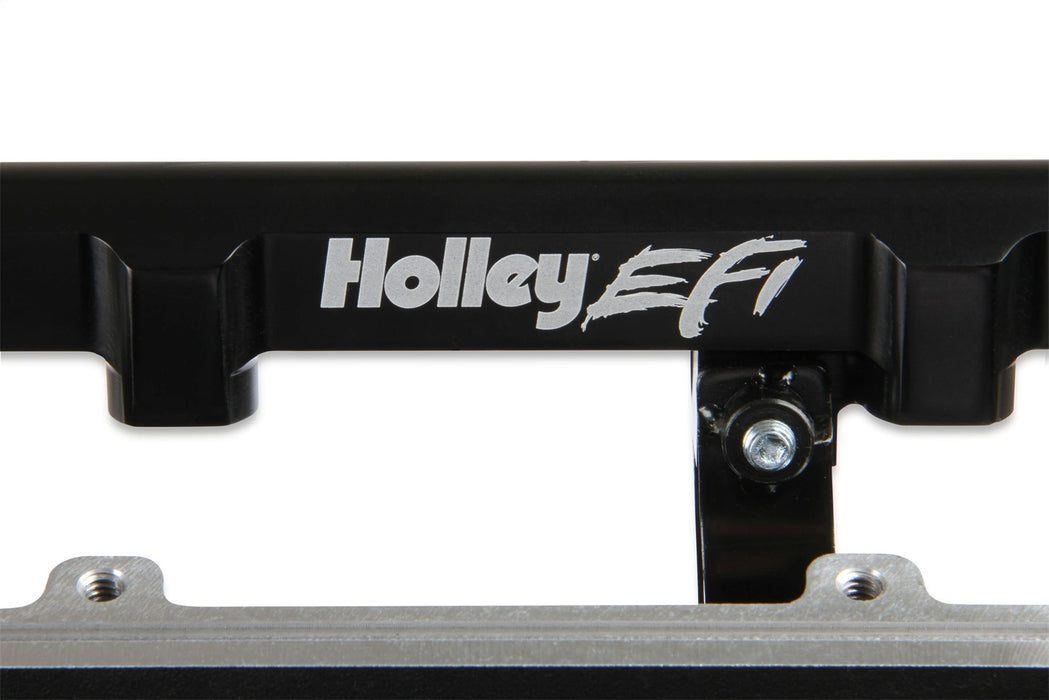

| Description_FAB | High Volume Fuel Rails And Mounting Hardware Included |
| Description_FAB | Modular Design Allowing The Use Of Front-Feed Plenum Entry |
| Description_INV | KIT; INT. MANIFOLD; LS1 LO-RAM; BLACK |
| Description_MKT | The Holley LS1/2/6 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration. The 300-620 top-feed plenum entry configuration is designed to allow the included Hi-Ram 105 mm plenum top to be fitted to a low-profile base intake manifold. The short runner, low-profile base intake manifold intended for forced induction applications was conceived to package with an air to water plenum mounted intercooler with a shorter overall height than possible with other existing intake manifolds. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors. |
| Description_MKT | The Holley LS1/2/6 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a low height to aid the packaging of a plenum-mounted air-to-water intercooler in a top-entry configuration. The 300-620 plenum entry configuration is designed to allow the included Hi-Ram 105 mm plenum top to be fitted to a low-profile base intake manifold. The short runner, low-profile base intake manifold intended for forced induction applications was conceived to package with an air to water plenum mounted intercooler with a shorter overall height than possible with other existing intake manifolds. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors. |
| Description_SHO | Intake Manifold |
| Engine Make/Size | GM LS1/LS2/LS6 |
| height | 15.8 |
| length | 24.6 |
| Number of Carbs | None; For Fuel Injection |
| Position | Upper |
| RPM Range | 7000-8000 |
| Usage | Street/Hi-Performance |
| WARNING CA Proposition 65 | No |
| weight | 27.45 |
| width | 15.5 |
