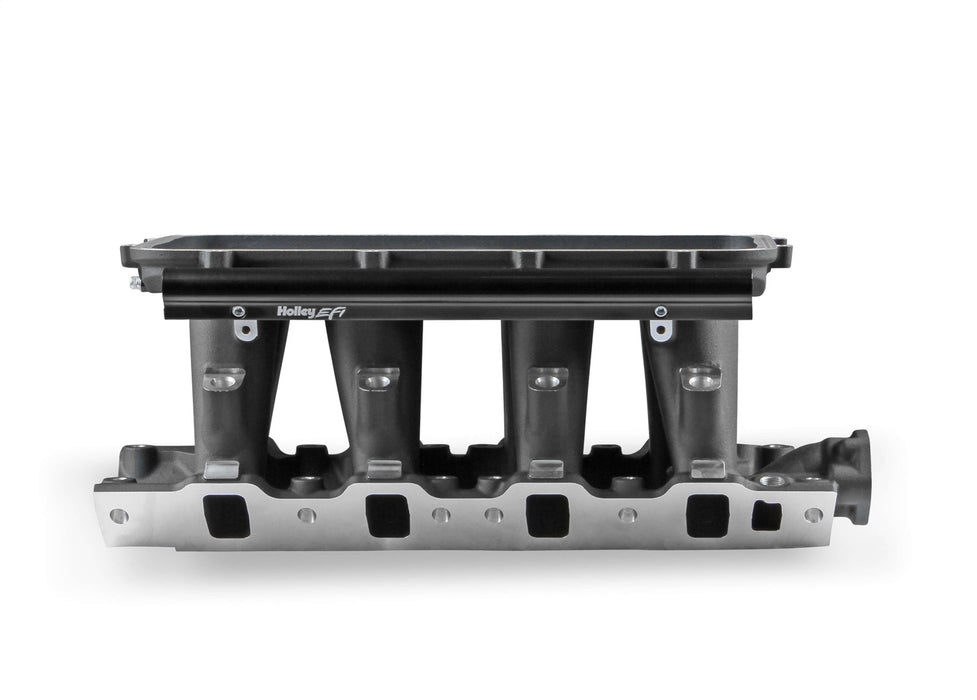

Holley EFI 300-306BK Holley EFI Hi-Ram Intake Manifold
by Holley EFI
SKU ds_BBVL_300-306BK
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,026.43
-
Original price
$1,026.43
Original price
$1,026.43
$1,026.43
$1,026.43
-
$1,026.43
Current price
$1,026.43
Availability:
Out of stock
Description
The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. This manifold comes with a 95MM 1986-95 Ford 5.0 throttle body flange side mount top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
Resources
Installation InstructionsSpecifications
| Cylinder Head Type | Ford Small Block |
| Description_ASC | Holley Performance Emission Code 3: This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles. The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles: 1965 and older U.S. manufactured California Certified vehicles/1967 and older U.S. manufactured Federally Certified vehicles/1967 and older Foreign manufactured vehicle. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle |
| Description_DEF | Engine Intake Manifold |
| Description_DES | Holley EFI Hi-Ram Intake Manifold |
| Description_EXT | Holley EFI Hi-Ram Intake Manifold; Fits w/8.2 in. Deck SBF Ford w/95 mm Throttle Body Flange Side Mount Top; Cast Aluminum; Black Finish; |
| Description_FAB | Allows Room For Designing Boosted Applications |
| Description_FAB | Designed For Side Mounted Throttle Bodies |

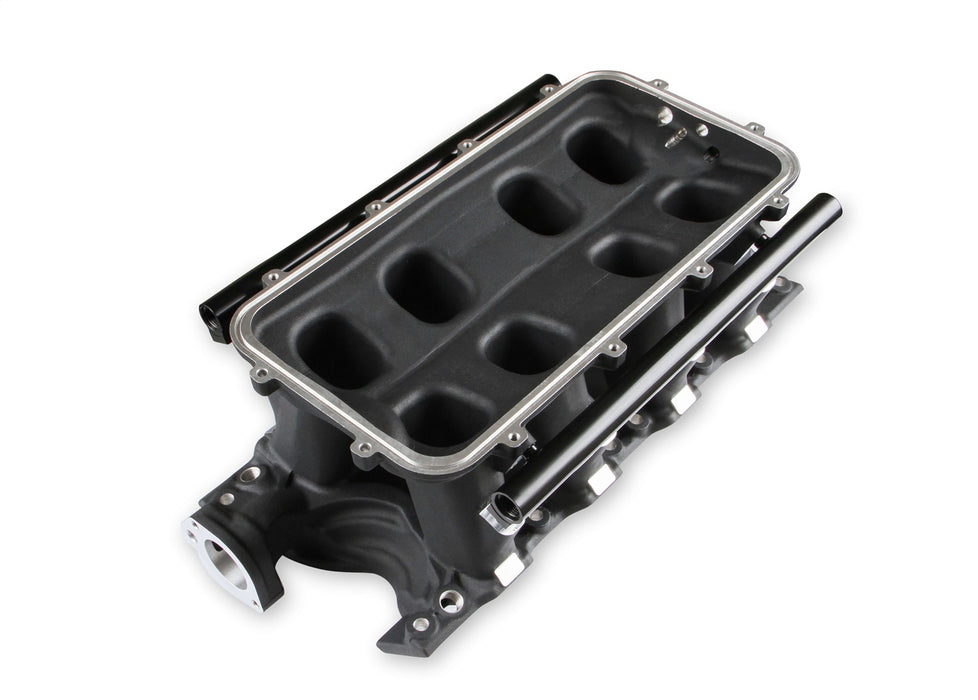

| Description_FAB | EFI Fuel Rails Are Machined For -8AN O-Ring Fittings |
| Description_FAB | Ford 5.0 Throttle Body Fitment |
| Description_FAB | Manifold Is Designed For A 8.2 In. SBF Deck Height |

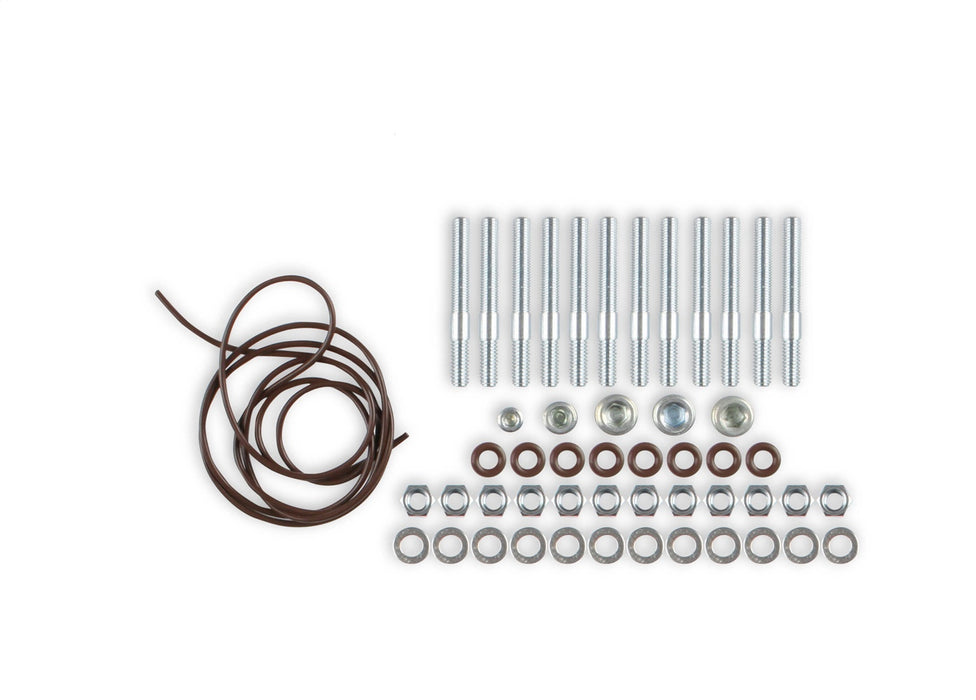

| Description_FAB | Plenum Top Gasket Type; 3/32 in. Round O-Ring Cord |
| Description_FAB | The 8.2 SBF Manifold Is Available To Work With 95Mm Throttle Bodies |
| Description_INV | MFLD KIT; FORD 302W HI-RAM 95MM SIDE BLK |
| Description_MKT | The EFI Hi-Ram manifold line has a new addition for the 8.2 in. SBF Ford application. This manifold comes with a 95MM 1986-95 Ford 5.0 throttle body flange side mount top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! Manifold is designed for a 8.2 in. deck height. Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. Cast aluminum construction. Black finish.*** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available. |
| Description_MKT | The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. This manifold comes with a 95MM 1986-95 Ford 5.0 throttle body flange side mount top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! |
| Description_SHO | Intake Manifold |
| Emission | N/A |
| Engine Make/Size | Ford Small Block |
| height | 16.8 |
| length | 23.4 |
| Position | N/A |
| RPM Range | 1500-7000 |
| Usage | Street/Hi-Performance |
| WARNING CA Proposition 65 | No |
| weight | 33.55 |
| width | 16.1 |
