Holley EFI 300-272BK Holley EFI Hi-Ram Intake Manifold
by Holley EFI
SKU ds_BBVL_300-272BK
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$1,912.10
-
Original price
$1,912.10
Original price
$1,912.10
$1,912.10
$1,912.10
-
$1,912.10
Current price
$1,912.10
Availability:
Only 1 left!
Description

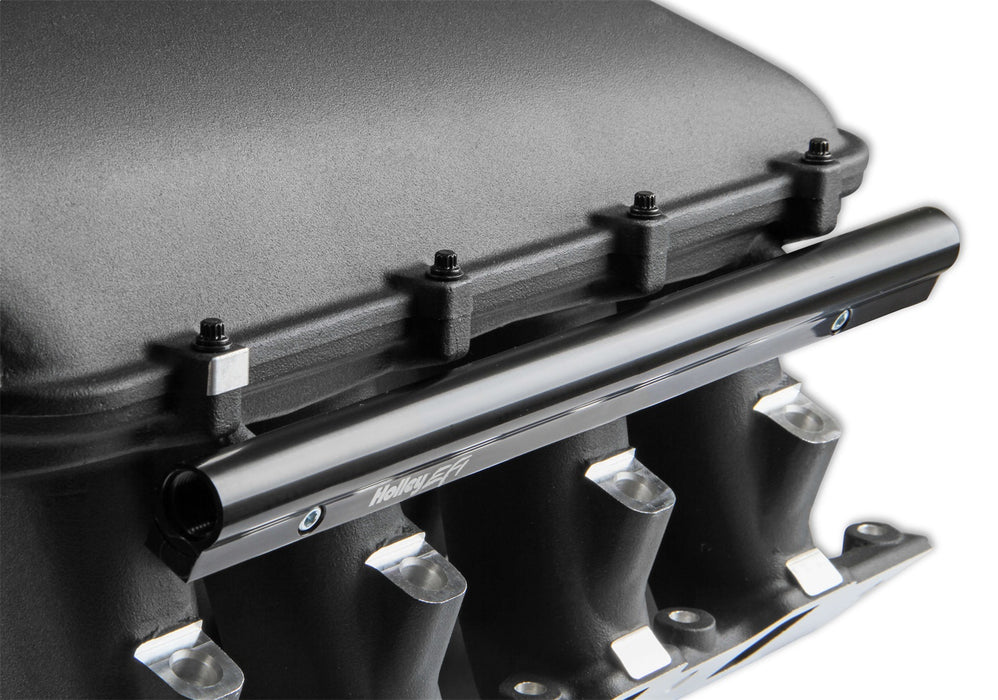

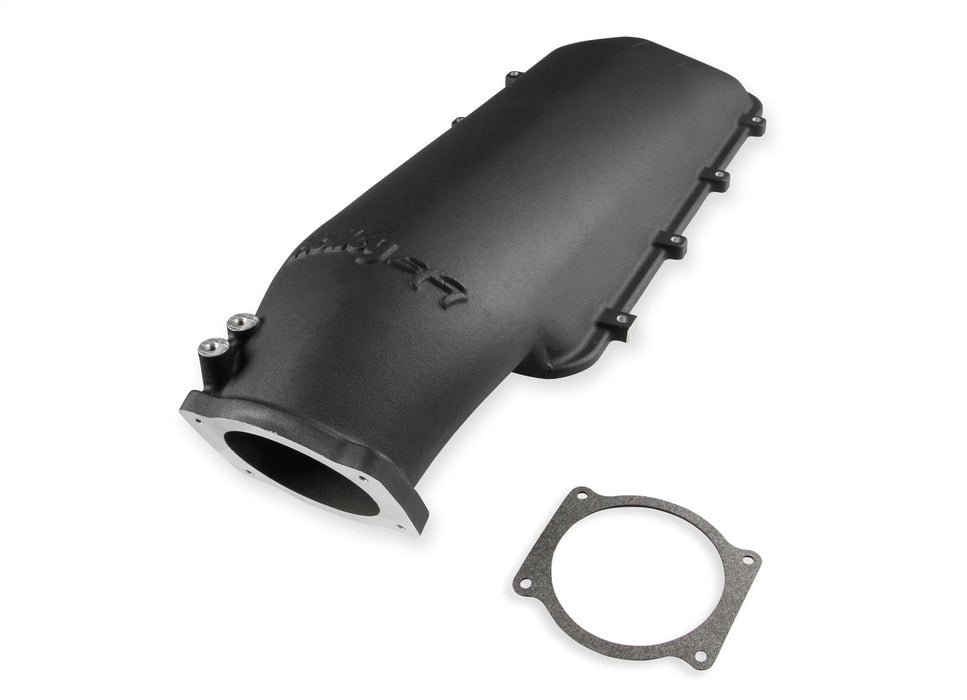

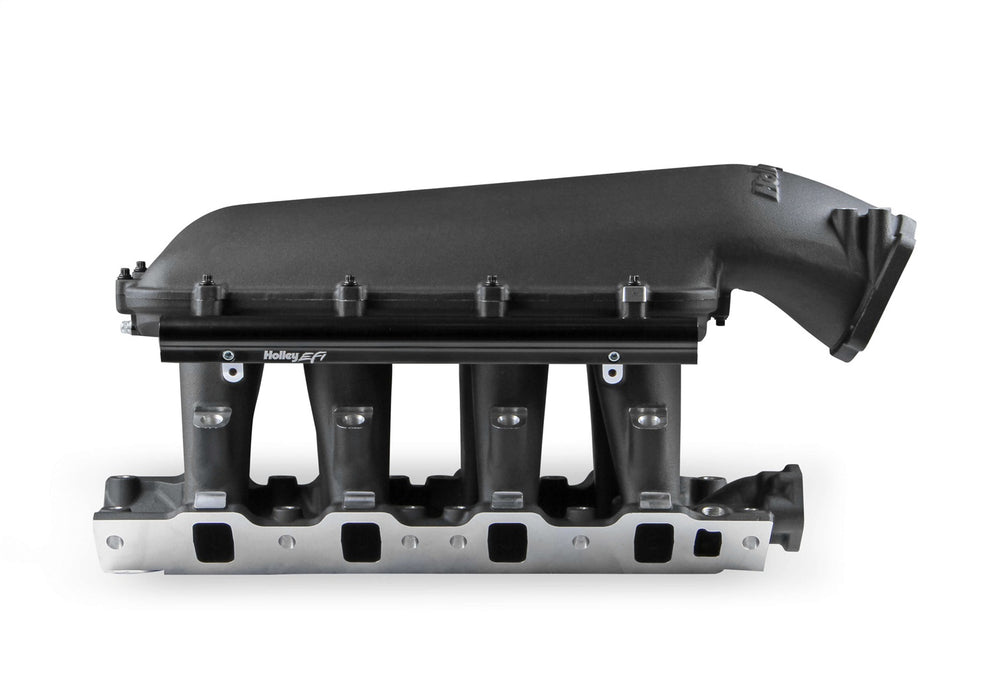

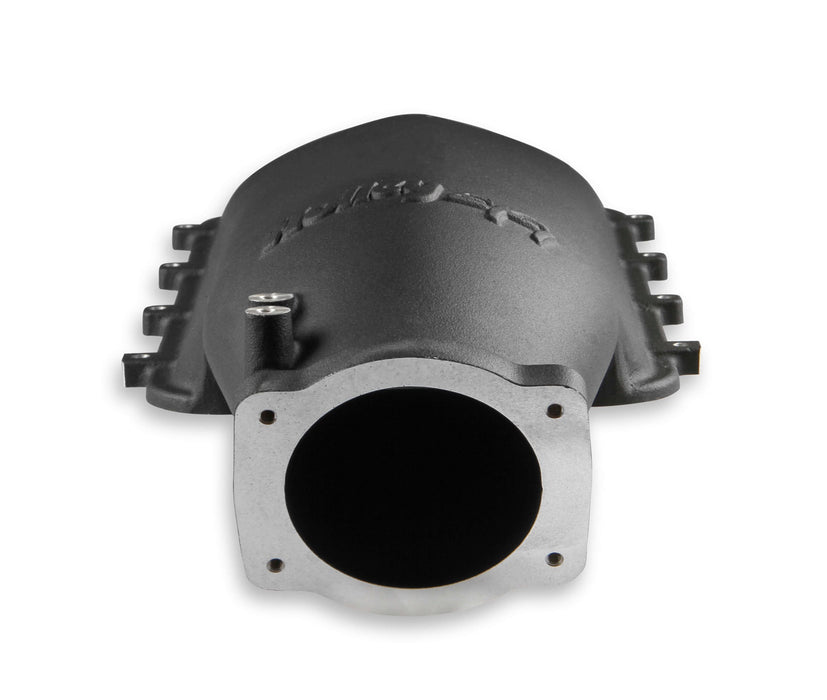

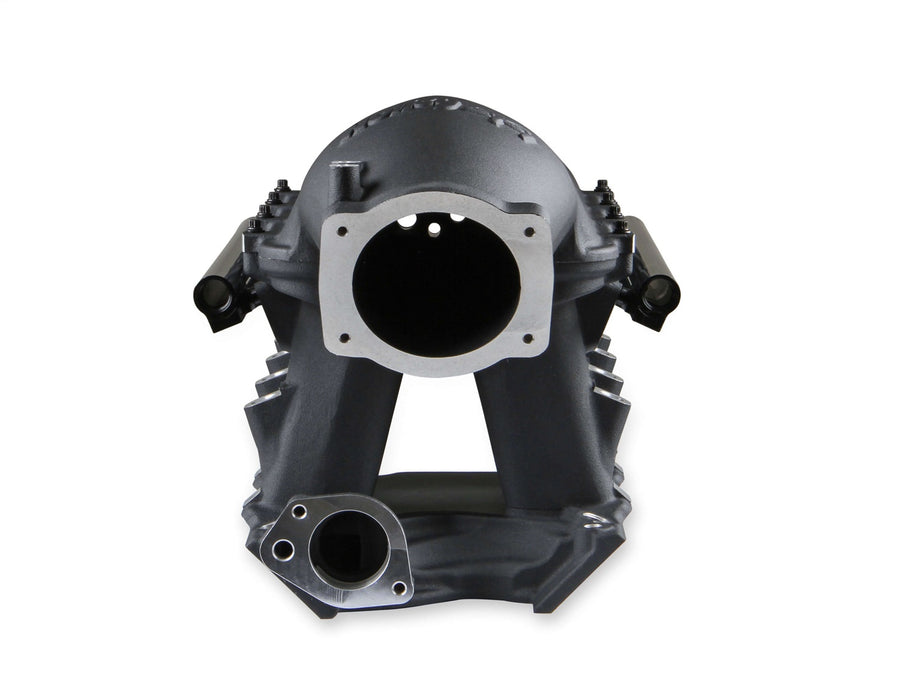

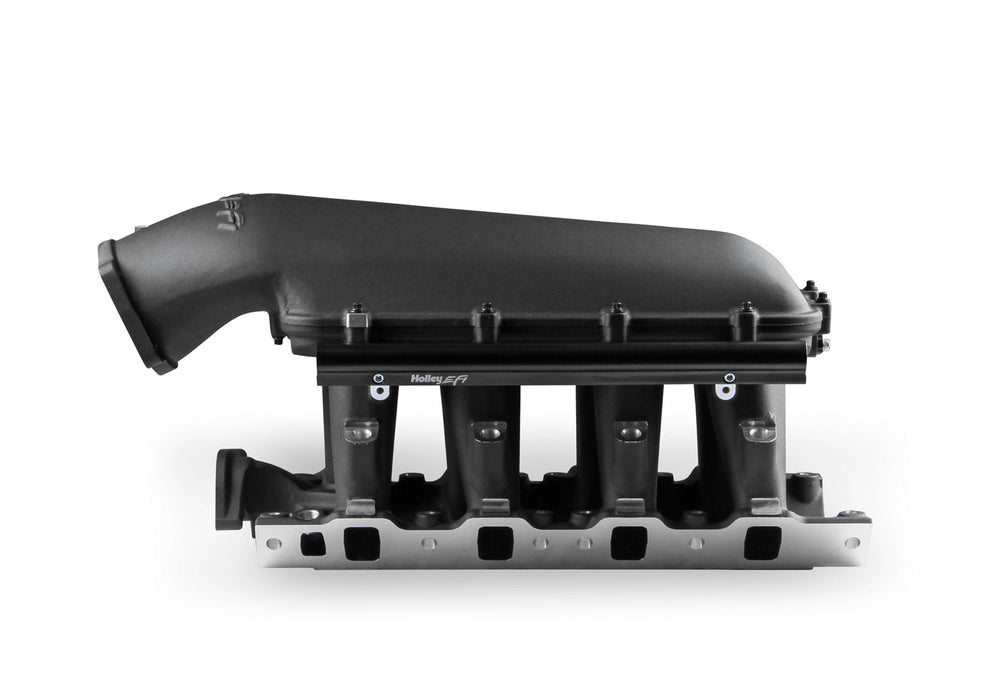

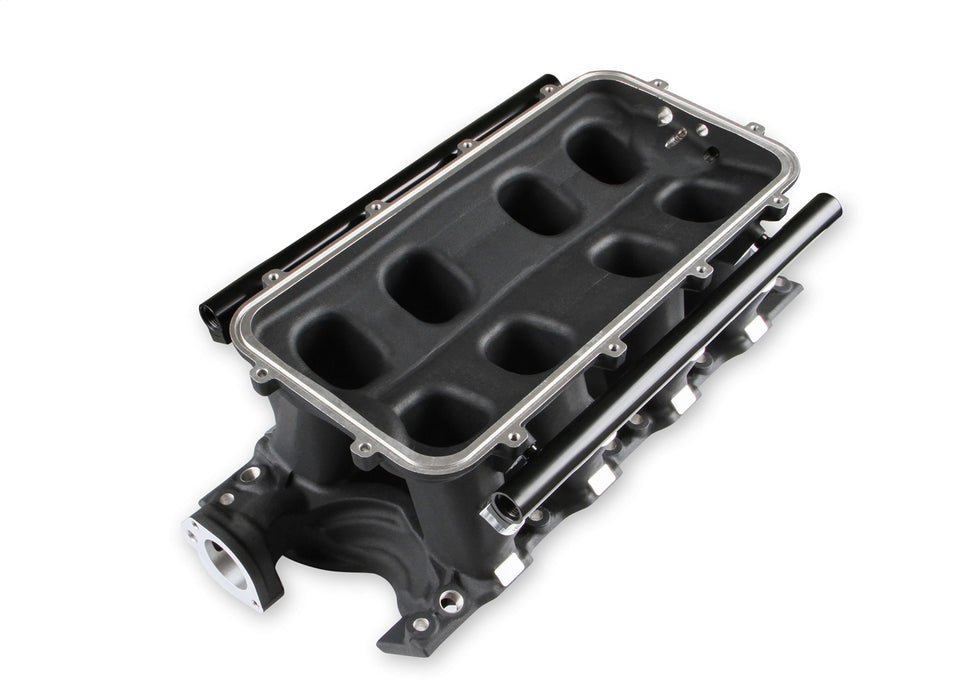

The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. This manifold comes with a 95MM LS throttle body flange top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! Manifold is designed for a 8.2" deck height. • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. • Cast aluminum construction.
Resources
Installation InstructionsSpecifications
| Cylinder Head Type | Ford Small Block |
| Description_ASC | Holley Performance Emission Code 3: This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles. The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles: 1965 and older U.S. manufactured California Certified vehicles/1967 and older U.S. manufactured Federally Certified vehicles/1967 and older Foreign manufactured vehicle. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle |
| Description_ASM | KIT; BLACK 95MM EFI SBF 302 DECK HI-RAM |
| Description_DEF | Engine Intake Manifold |
| Description_DES | Holley EFI Hi-Ram Intake Manifold |
| Description_EXT | Holley EFI Hi-Ram Intake Manifold; Fits w/8.2 in. Deck SB Ford w/95 mm LS Throttle Body Flange Top; 1500-7000 RPM Power Band; Cast Aluminum; Satin Finish; |
| Description_FAB | Manifold Is Designed For A 8.2 In. SBF Deck Height |

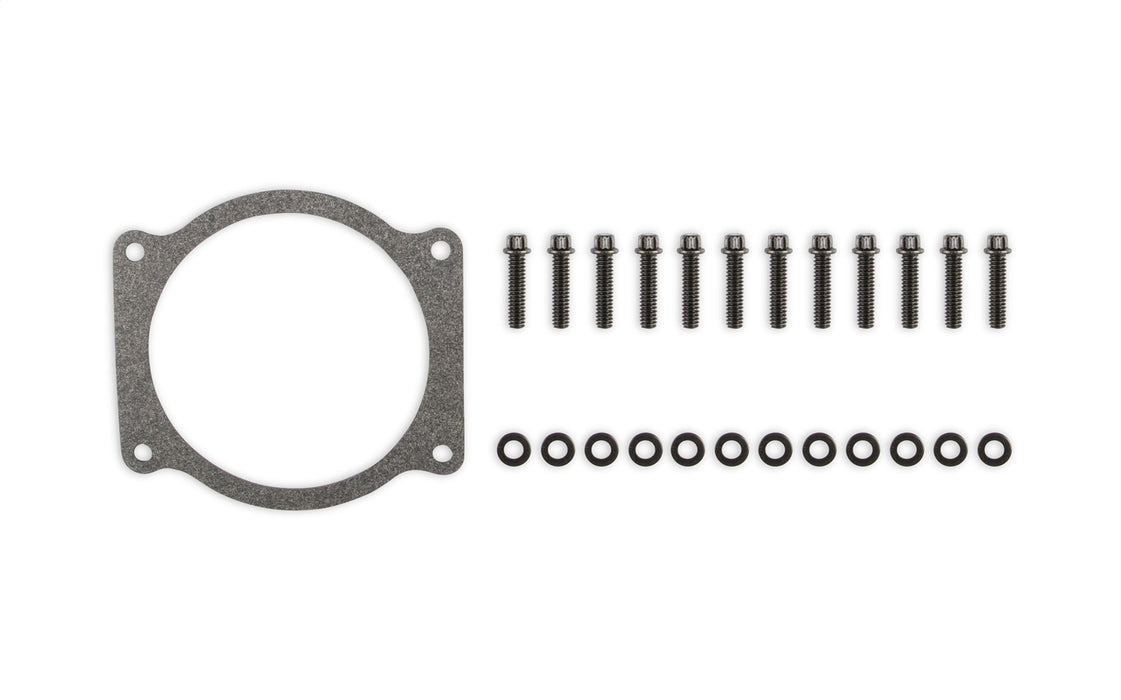

| Description_FAB | Plenum Top Gasket Type - 3/32 in. Round O-ring Cord |
| Description_INV | KIT; BLACK 95MM EFI SBF 302 DECK HI-RAM |
| Description_MKT | The EFI Hi-Ram manifold line has a new addition for the 8.2 in. SBF Ford application. This manifold comes with a 95MM LS throttle body flange top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! Manifold is designed for a 8.2 in. deck height. Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. Cast aluminum construction.*** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available. |
| Description_MKT | The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. This manifold comes with a 95MM LS throttle body flange top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! Manifold is designed for a 8.2" deck height. • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. • Cast aluminum construction. |
| Description_SHO | Intake Manifold |
| Engine Make/Size | Ford 289-302 |

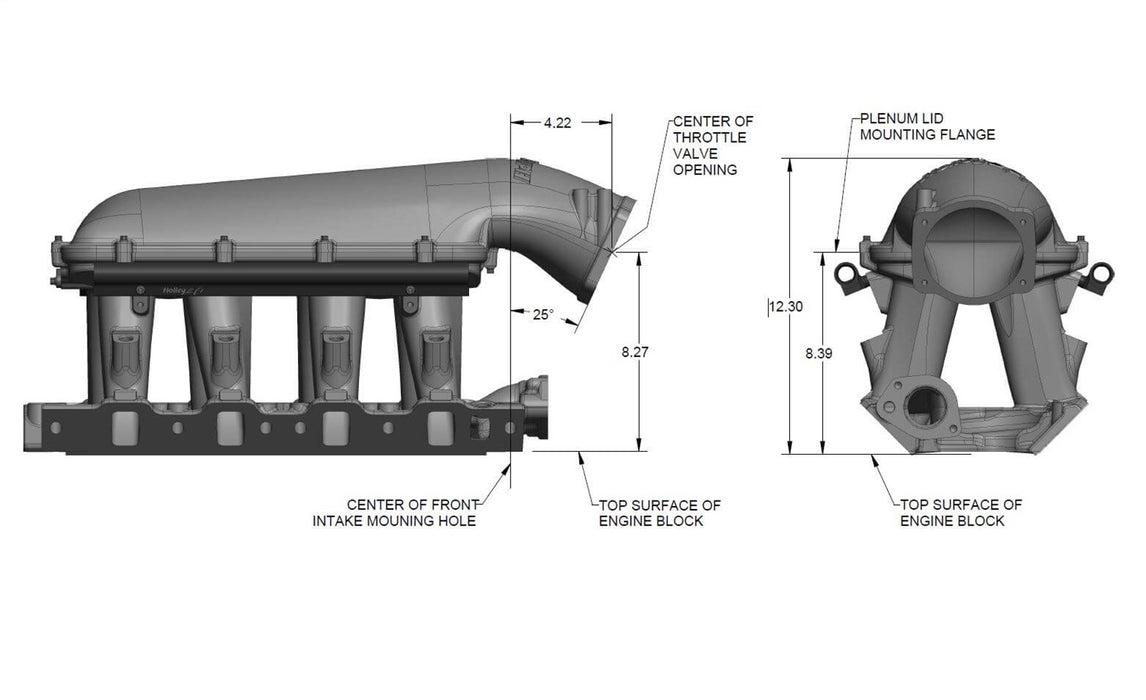

| height | 18.2 |
| length | 24.3 |
| Number of Carbs | None; For Fuel Injection |
| Position | N/A |
| RPM Range | 1500-7000 |
| Usage | Racing |
| WARNING CA Proposition 65 | No |
| weight | 37.26 |
| width | 13.5 |
